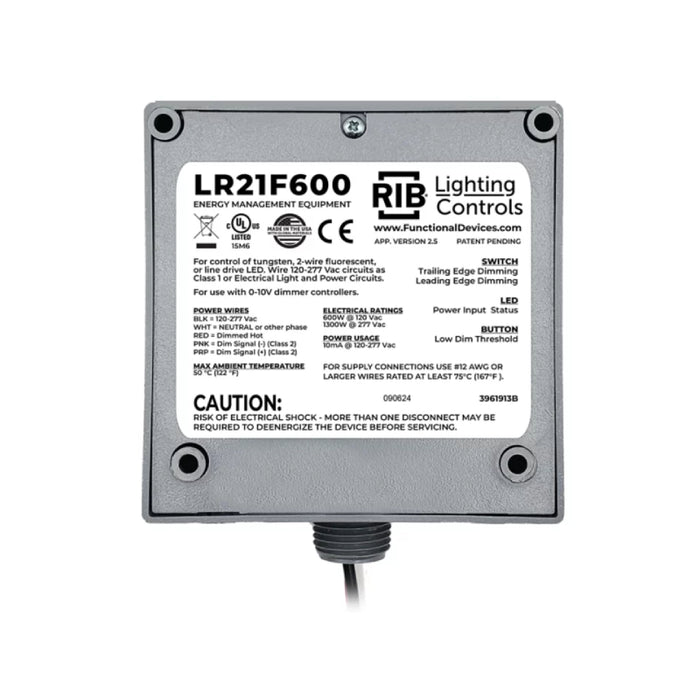

Greengate LR21F600 120/277V 0-10V Controlled Phase Dimmer

The Greengate 0‑10V Controlled Phase Dimmer provides a reliable solution for converting standard 0‑10V control signals into phase‑dimming outputs. The LR21F600 supports both 120VAC and 277VAC circuits and is compatible with Current Sink and Current Source 0‑10V controllers. The device delivers field selectable Leading‑Edge (Forward Phase / TRIAC) or Trailing‑Edge (Reverse Phase / ELV) dimming for broad application flexibility.

Features

• Input: 120/277VAC
• Max Lighting Load: 600W @ 120 VAC, 1300W @ 277 VAC
• Wiring: 16”, 600V rated

• Min Lighting Load: 1W
• Dim to off: Yes
• Selectable Dimming Mode: Yes
• Selectable Low Dim Threshold: Yes
• Power Input Ratings: 10mA @ 120-277 Vac; 60Hz 0-10V Input
• Current Source: 1mA maximum per IEC Standard 60929 Annex E

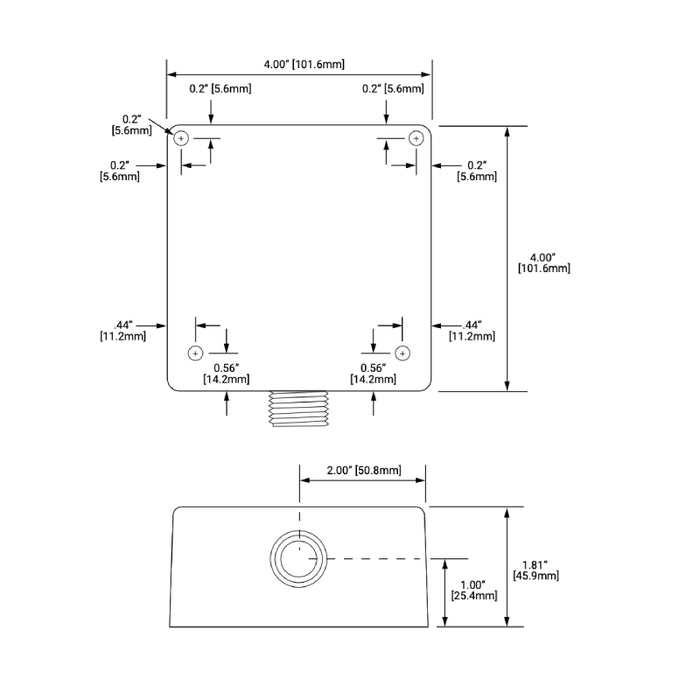

Dimensions

• Width: 4"

• Height: 4"
• Depth: 1.81"

Documents

• Spec Sheet
• Instruction Sheet

Labels and Listings:

• Class 2 UL Listed
• UL916
• CE - European Conformity
• RoHS Directive
