by WaveLinx

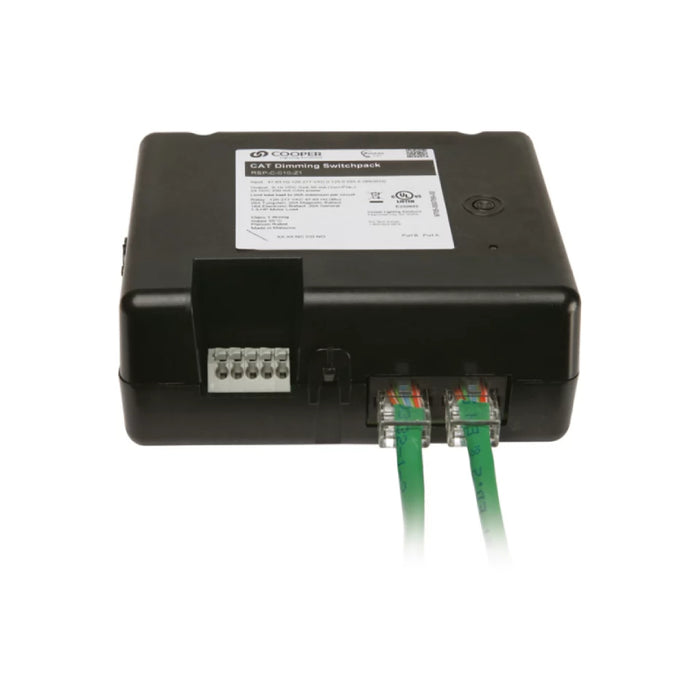

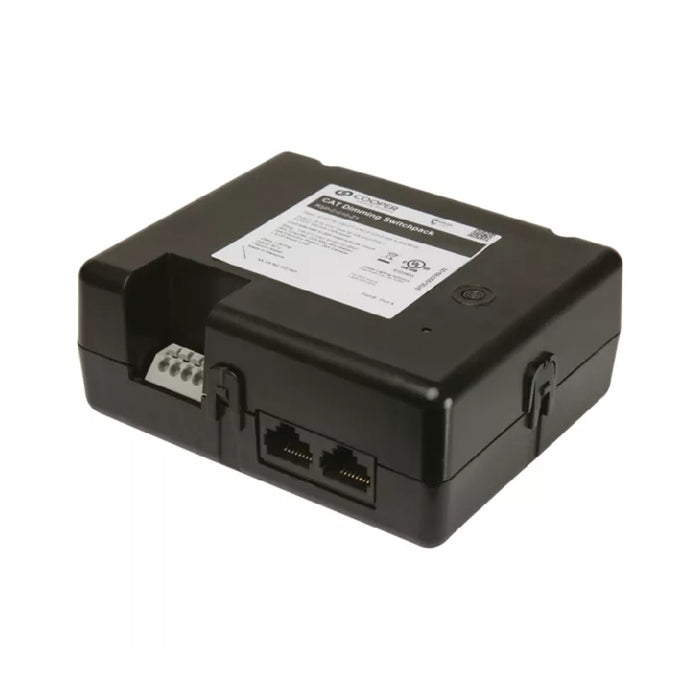

Wavelinx RSP-C-010-Z1 CAT Relay Switchpack, Zone 1
SKU RSP-C-010-Z1
Original price
$0.00
-
Original price
$0.00
Original price
$138.60
$138.60
-
$138.60
Current price
$138.60
Availability:
in stock, ready to be shipped
Estimated Shipping Widget will be displayed here!
OVERVIEW
The CAT Dimming Switchpack is used to switch (on/off) loads via an internal 20amp latching relay designed with robust protection. It also offers continuous 0-10V dimming control of LED and non LED loads. Finally, the CAT Dimming Switchpack provides power to the CAT bus by transforming Class 1 line voltage (120/277 VAC) to Class 2 low voltage (24 VDC).
Features
- Color: Black
- Input: 120-277VAC
- Mounting: Extended Chase Nipple
- 20 Amps latching relay - Allows to turn on/off LED or non LED loads and receptacle control
- 0-10V dimming with 30mA sink - Allows to raise and dim fixtures powered with 0-10V drivers
- 24VDC output power with 350mA - Powers the CAT bus and up to 40 CAT devices
- Digital communication over CAT - Enables remote configuration of the device settings such as zone assignment via WaveLinx apps (mobile or web-based apps)

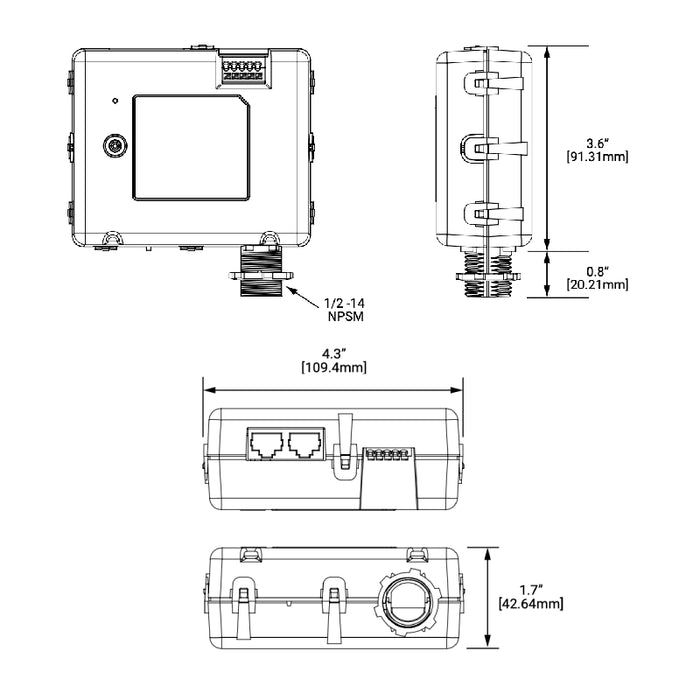

Dimensions
- Length: 4.3"
- Width: 3.6"
- Height: 1.7"
Warranty
- 5-Year Limited Warranty
