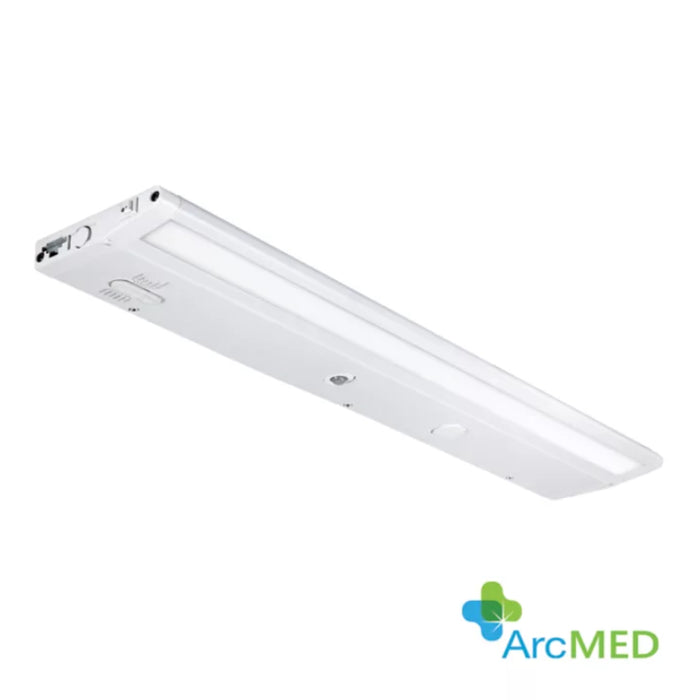

Fail-Safe UC1 Series LED Undercabinet, 5CCT Selectable, 120-277V

The UC1 provides effective LED task lighting in a variety of environments. Constructed with minimal 3/4" depth and durable IK10 rated housing and lens.

Features

• Size: 24", 36", 48"
• Finish: White
• Wattage:
  • 24": 9.4W
  • 36": 12.7W
  • 48": 17.3W
• Voltage: 120V-277V

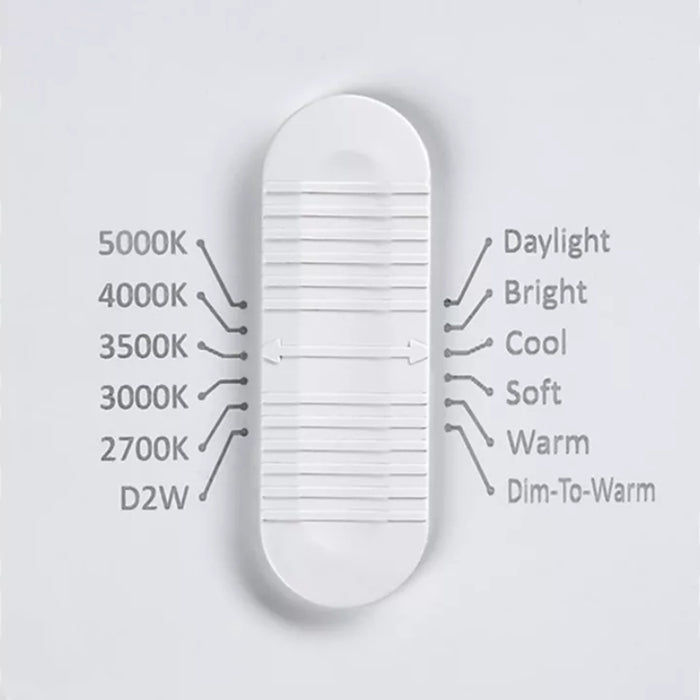

• Color Temperature: 2700K / 3000K / 3500K / 4000K / 5000K Selectable and an additional Dim-To-Warm setting (D2W range- 2700K to 1800K at 120V)
• Lumens:
  • 24": 670
  • 36": 915
  • 48": 1275

• CRI: 90
• Continuous dimming to 5% at 120V (ELV/Triac) - 120V
• 3/4" depth to fit discretely in a variety of spaces
• Anti-microbial white paint finish, standard
• Extruded aluminum housing and color matched end caps with a sleek over all height of 3/4"
• Each unit is secured directly to the mounting surface with just two fasteners keeping installation costs and efforts low. Can be mounted in horizontal and vertical orientations

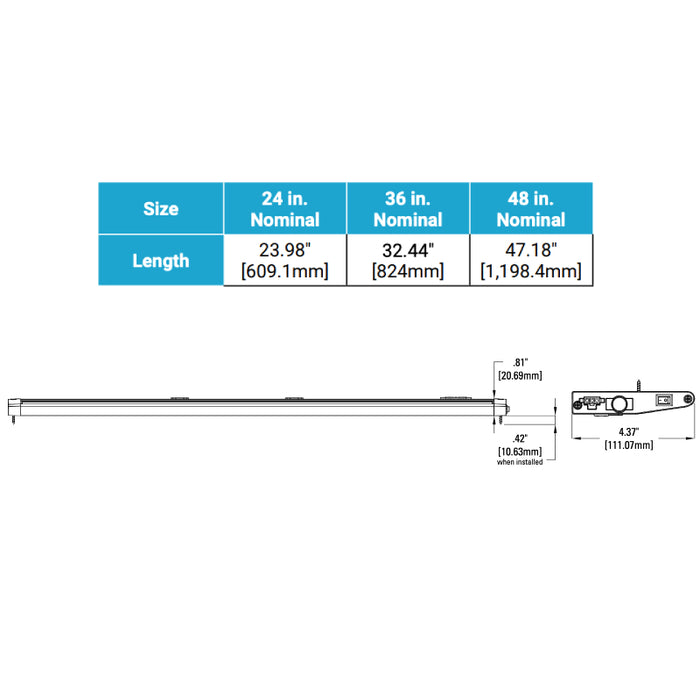

Dimensions

• Length: 23.98", 32.44", 47.18"
• Width: 4.37"
• Height: 0.81"

Warranty

• Five-year limited warranty

Documents

• Spec Sheet
• Instruction Sheet

Labels and Listings

• UL Certified
• Can be used to meet IECC, ASHRAE commercial standards
• FCC rated driver
• Can be used for State of California Title 24 high efficacy LED compliance under JA8
• Damp location listed
• IK10 rated for maximum impact resistance
