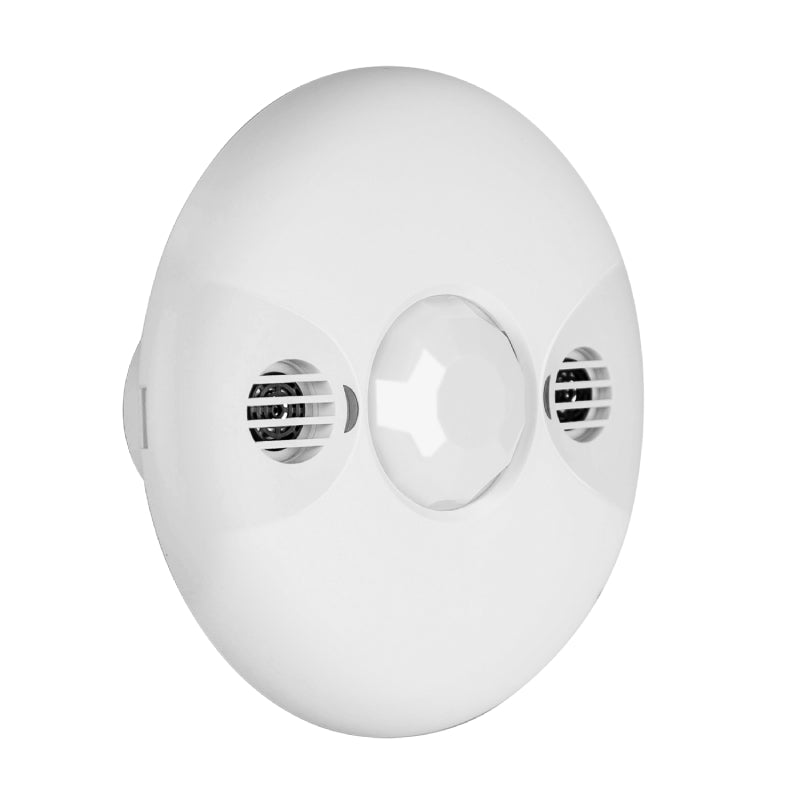

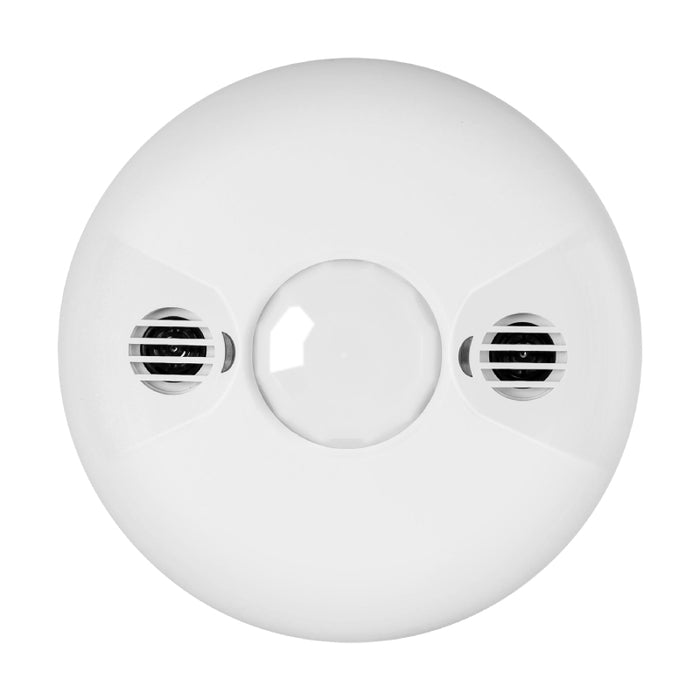

Enerlites MDC-50L Multi-technology Low Voltage Ceiling Mount Sensor

EnerlitesSKU: MDC-50L-W

In stock


The ENERLITES MDC-50L is a commercial grade low voltage ceiling mount sensor that operates lights using a combination of passive infrared (PIR) and ultrasonic technologies
  • Color:  White
  • Input voltage: 24VDC
  • Combines Passive Infrared (PIR) and Ultrasonic Technology
  • 360° fresnel lens for superior occupancy detection
  • PIR Coverage: 1600 sq. ft.
  • Ultrasonic Coverage: 1000 sq. ft.
  • Adjustable time delay: 5 sec to 30 min
  • Adjustable light level: 10FC to 150FC
  • Current consumption: 20 mA
  • Works with fluorescent and LED lighting
  • Operation Temperature: 32°F to 131°F (0°C to 55°C)
  • Optional vacancy mode feature with 91245 momentary switch (sold separately)
  • Walk-through mode: 3 minutes if no activity after 30 sec
  • Manual ON/OFF feature when wired to push button
  • Power supply by MPP-24 and control line load through MPP-24 (sold separately)
  • Two-year limited warranty
