Elite REL631 6" 10W/12W/14W LED Retrofit Lensed Baffle, 5CCT & 3 Lumens Selectable, 120V
SKU REL631-850L/1000L/1200L-DIMTR-120-27K/30K/35K/40K/50K-90-W-WH
Original price
$0.00
-
Original price
$0.00
Original price
$11.95
$11.95
-
$11.95
Current price
$11.95
Availability:
in stock, ready to be shipped
Estimated Shipping Widget will be displayed here!
OVERVIEW

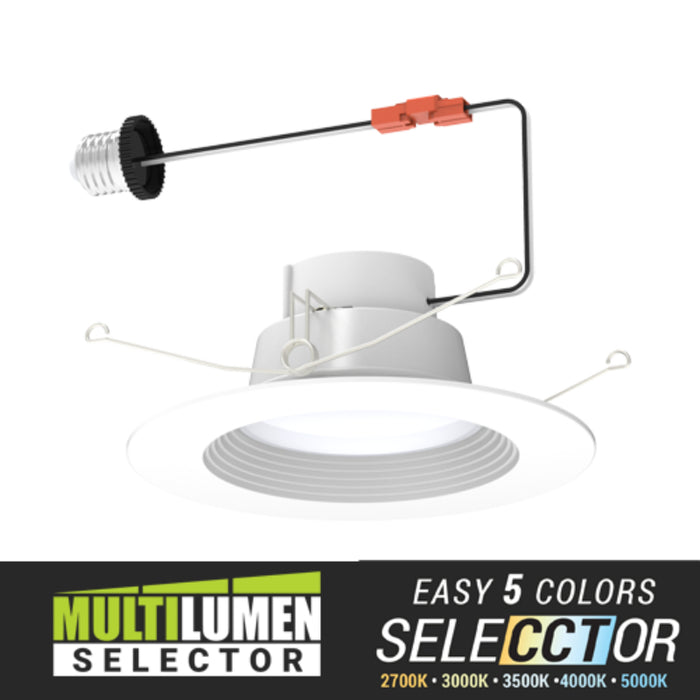

The Elite REL631 has been engineered for new construction and retrofit applications for 6-inch downlights. An easy 3 lumen and 5-Color SeleCCTor switch allows the contractor to easily switch between 3 lumen outputs and five different color temperatures in the field. The REL631 is compatible with most 6” recessed housing for quick, easy installation in healthcare, hospitality, office, residential, and retail applications.
Features
- Retrofit only. Housing sold separately.
- Size: 6"
- Type: Baffle
- Finish: White/White
- Wattage/Lumens:
- 10W / 850 lm
- 12W / 1000 lm
- 14W / 1200 lm
- Voltage: 120V
- Color Temperature: 2700K/3000K/3500K/4000K/5000K Selectable
- CRI: 90+
- Dimming: DIMTR(Triac)
- The SeleCCTor switch is located on the junction box for easy adjustment before and after installation
- A deeply regressed baffle provides glare-free, comfortable illumination and a 45-degree cutoff
-
The Elite RL631 series works in Elite housings and existing Elite 6” incandescent housings.Also suitable for use in most 6” recessed downlight housings

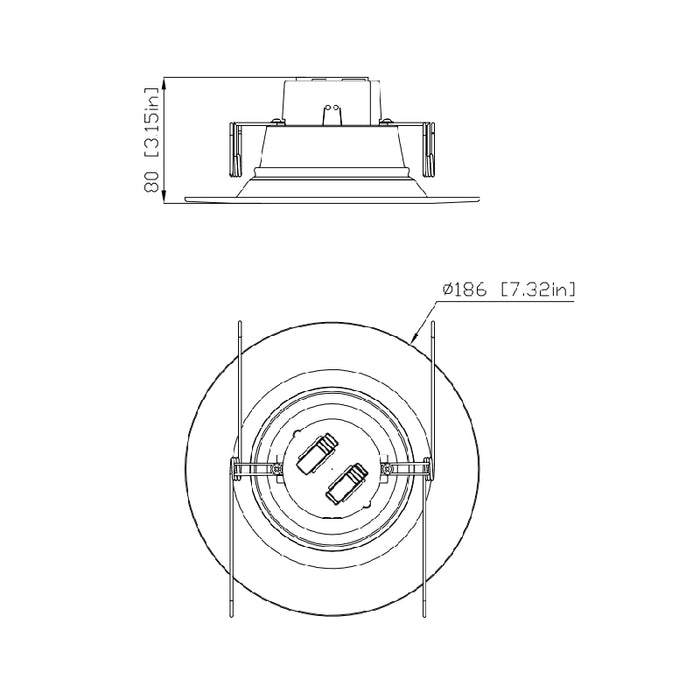

Dimensions
- Width: 7.32"
- Height: 3.15"
Estimated Life
- 50,000 Hours
