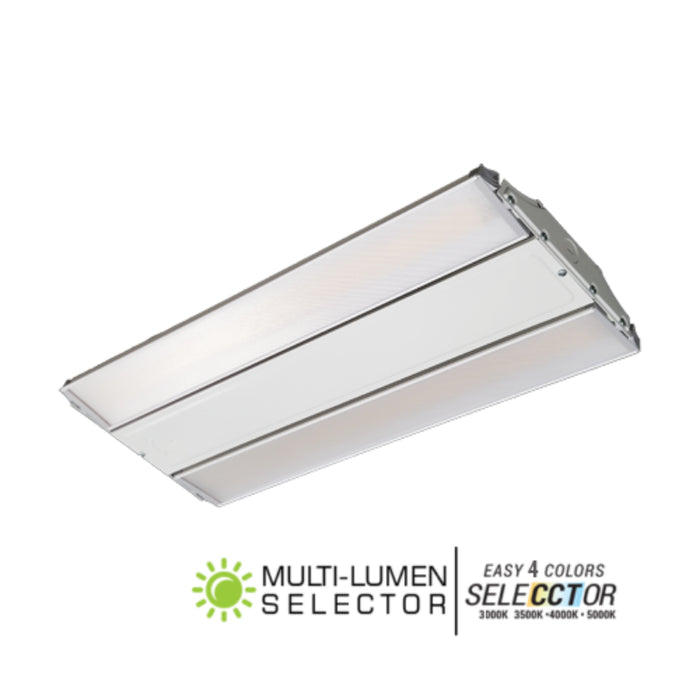

Elite CB2-CPA-LED Architectural 169W/189W/213W LED High Bay, Selectable CCT & Lumen

SKU CB2-CPA-LED-24000L/27000L/30000L-DIM10-MVOLT-MD-30K/35K/40K/50K-85
Original price $0.00 - Original price $0.00
Original price
$223.50 - $223.50
Current price $223.50
In stock

Estimated Shipping Widget will be displayed here! (with custom color)


The CB2-CPA-LED is a highly efficient LED luminaire ideal for large interior spaces with high mounting heights that require uniform general illumination. Designed as a replacement for conventional linear fluorescent and HID high bays found in manufacturing facilities


  • Finish: White
  • Wattage/Lumens: 169W / 24000 lm, 189W / 27000 lm, 213W / 30000 lm
  • Voltage: 120-277V
  • Color Temperature: 3000K / 3500K / 4000K / 5000K Selectable
  • CRI: 85+
  • 0-10V Dimming
  • Body made from heavy-duty 18-gauge cold rolled steel
  • The luminaire provides a Wide (W) distribution with dierent shielding options and ships standard with a frosted PC lens to protect the LED light engines from dust and damage

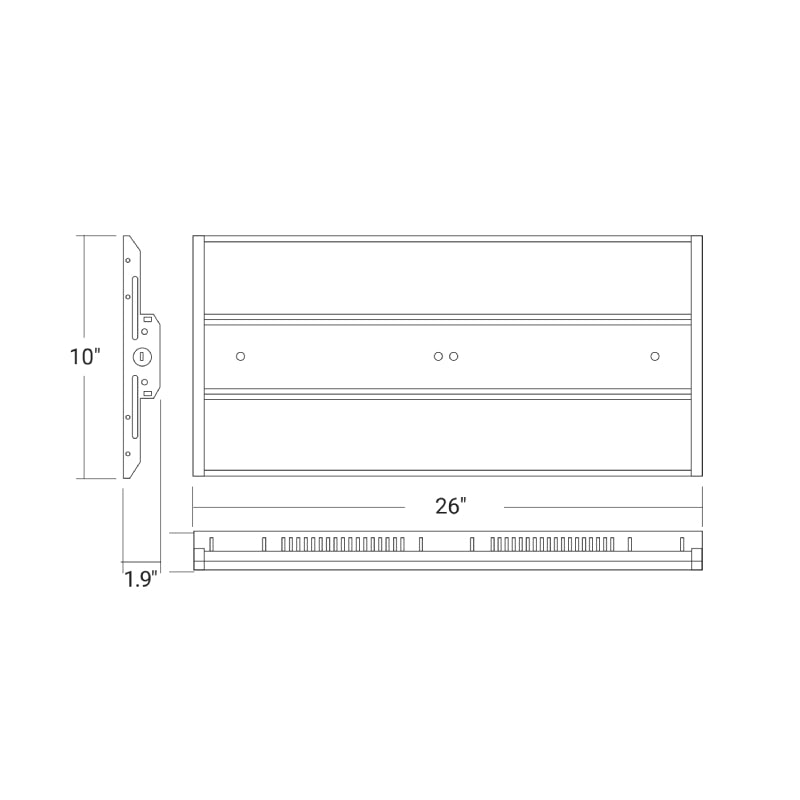

  • Length: 26"
  • Width: 10"
  • Height: 1.9"

Estimated Life

  • L70 at 167,000 Hours


    • 5-year limited warranty
