by eldoLED

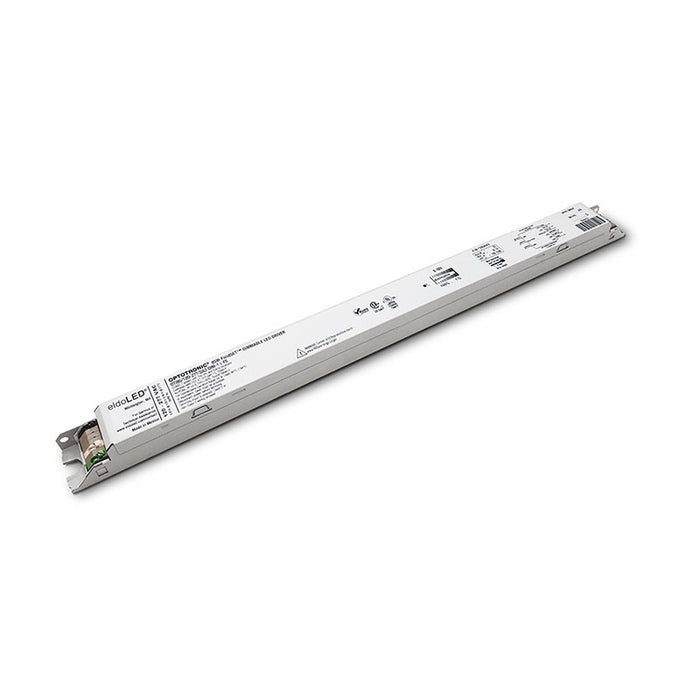

eldoLED Contractor Select FieldSET OTI 85W LED Linear Driver
SKU FIELDSET OTI 85W UNV 2A3 1DIM DIM-1 FS J10
Original price
$0.00
-
Original price
$0.00
Original price
$57.57
$57.57
-
$57.57
Current price
$57.57
Availability:
in stock, ready to be shipped
Estimated Shipping Widget will be displayed here!
OVERVIEW
The FieldSET OTi85W is an efficient, dimmable, linear LED driver for indoor applications.This programmable driver is compatible with the FieldSET LED Driver Programming Tool which provides visual and audible feedback programming. The FieldSET OTi85W is designed for in-field programming and replacement.
Features
- Wattage: 85W
- Voltage: 120-277V
- 0-10V Dimming with 1% Minimum Dim Level
- 2300mA Output Max (700-2300mA output range)
- Field Service Solution OTI Intelligent Driver

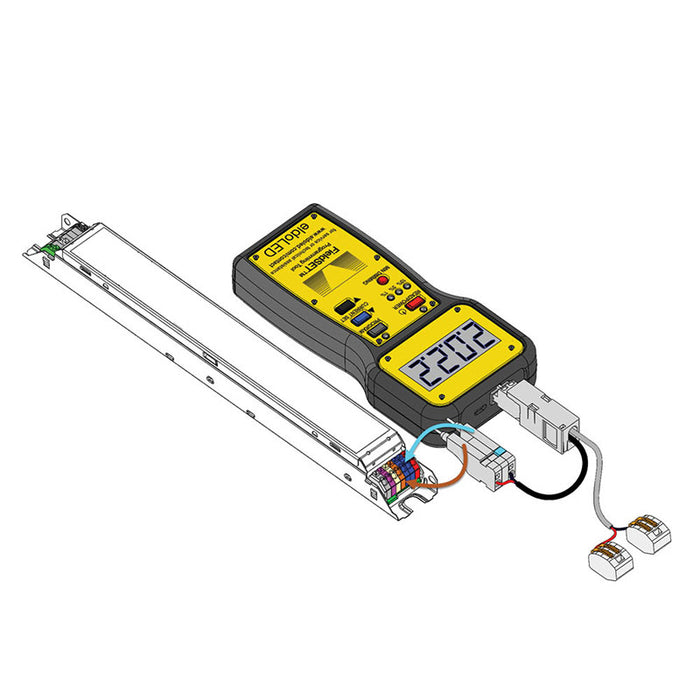

- Programmed using FieldSET Programmer Tool
- Intended for use in LED fixtures, including 2x2, 2x4 troffers, linear, strip, and architectural fixtures.

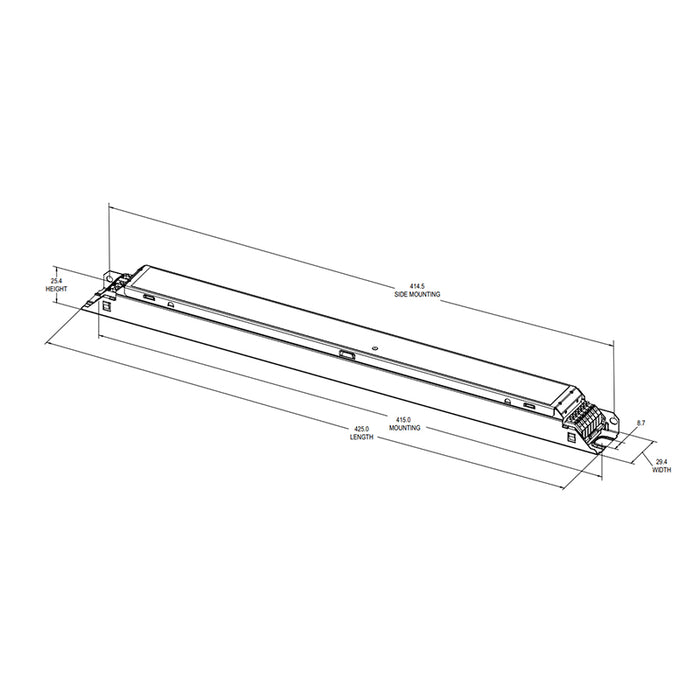

Dimensions
- Length: 16.73"
- Width: 1.15"
- Height: 1"
- Mounting Length: 16.34"
- Mounting Side: 10.67"
Warranty
- 5-year limited warranty
