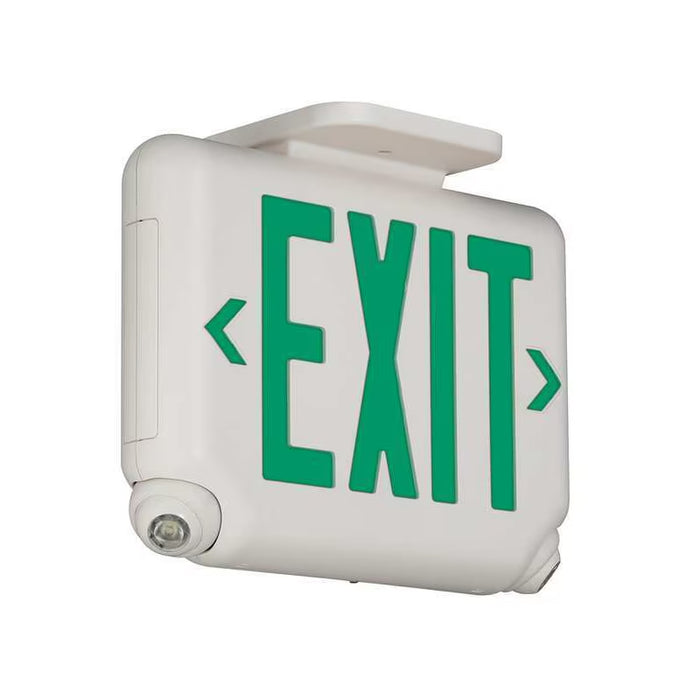

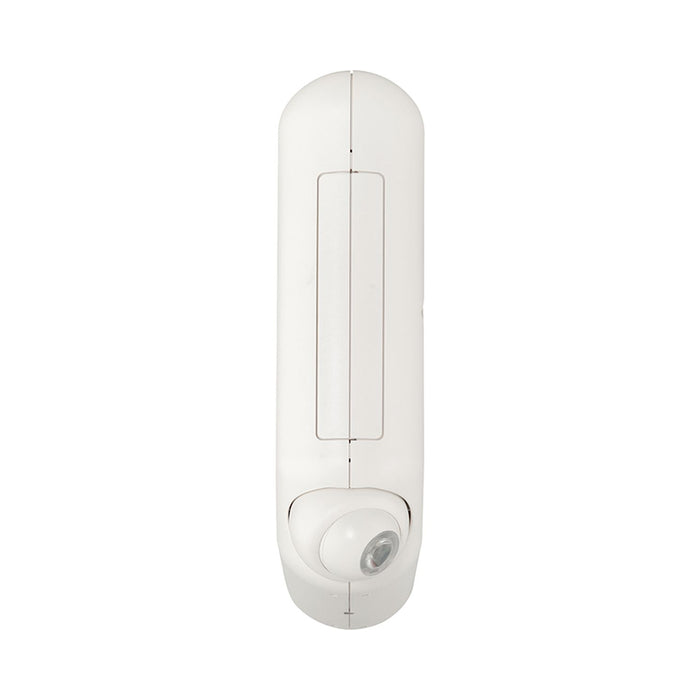

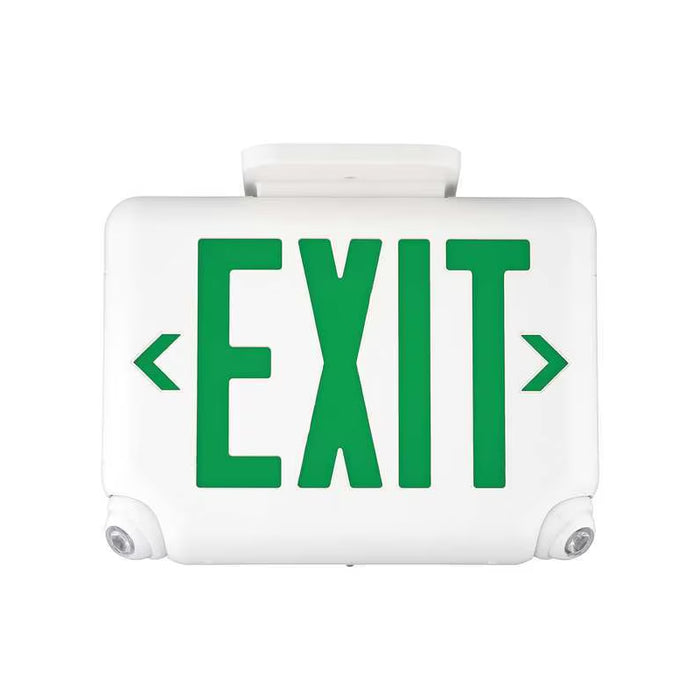

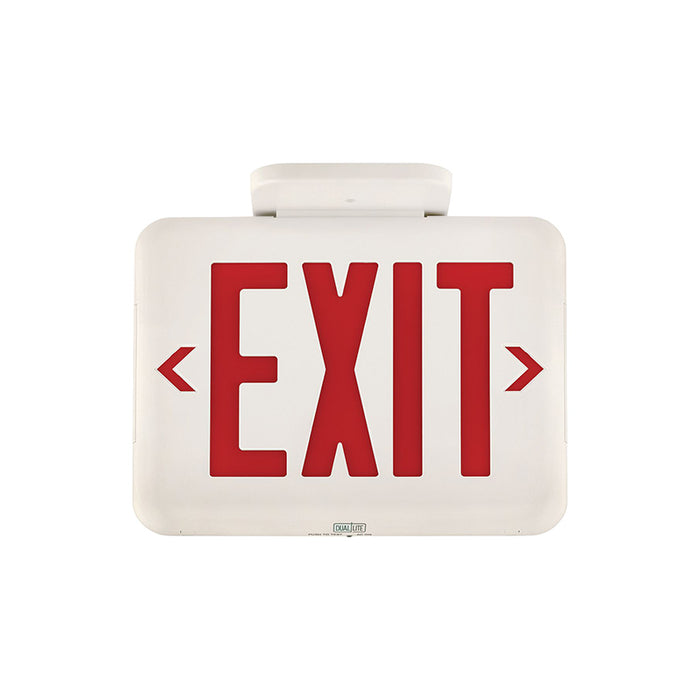

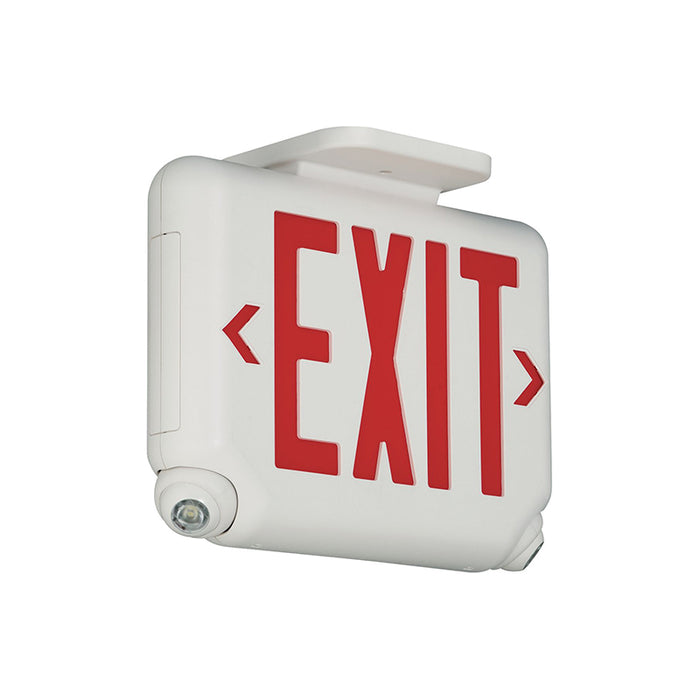

Dual-Lite EVC Series Combination LED Emergency Light/ Exit Sign, Universal Face, Damp Listed, Spectron Self Diagnostics

Sleek compact architectural LED combination exit and emergency lighting unit designed for fast installation and reliable service.

Features

• Universal Face
• Finish: White
• Letter Color: Red, Green
• Voltage: 120/277VAC
• Lamp Color: Cool White
• Total Lamp Output: 88 Lumens per LED
• System Efficacy: 80lm/W
• Fully aimable, dual-racheting high output LED lamp-heads
• Can be wall mounted by use of back-plate with molded-in template, or ceiling and end mounted with the use of supplied canopy to standard 3.5" or 4" square or octagonal electrical boxes
• Damp Listed
• Spectron Self Diagnostics
• Note: Not available with EVCURW and EVCUGW base models, standard with all other models

Dimension

• Width: 12"

• Height: 9"
• Depth: 2.55"
• Weight: 2 lbs

Estimated Life

• Rated Lifecycle: > 100,000hrs or 10 years

Documents

• Spec Sheet

• Instruction Sheet
