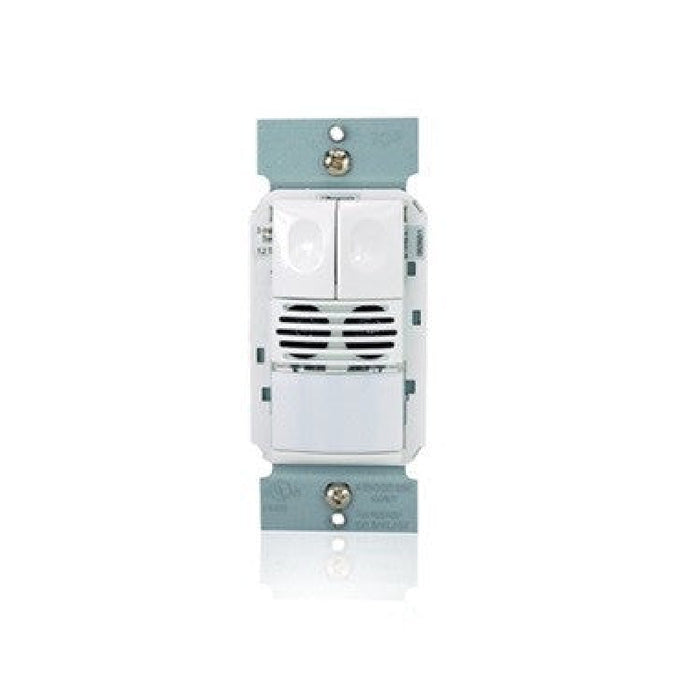

Wattstopper DSW-200 Dual Technology Dual Relay Wall Switch Sensor
Estimated Shipping Widget will be displayed here! (with custom color)
OVERVIEW
The DSW-200 dual technology wall switch sensor turns lights ON and OFF based on occupancy and contains two relays for controlling two independent lighting loads or circuits. It combines the benefits of passive infrared (PIR) and ultrasonic detection technologies for high sensitivity to small and large movements. The DSW-200 replaces existing wall switches and fits a standard decorator wall plate.
Features
- Wallplate sold separately
- Finish: Ivory, White, Light Almond
- Voltage: 120/277 VAC
- Load: 0-800 W 1/6 hp, 0-1200 W
- Light Output 1FC D: Manual On / Auto On
- Response Time: 5 to 30 minutes
- High sensitivity and dense coverage for exceptional performance
- Two relays for control of two separate lighting leads or circuits
- Color-matched lens and low profile for appealing design
- Selectable operation, walk-through, test and presentation modes for increased energy savings and convenience
- Defaults to Auto-ON to 50% operation for maximum energy savings
- Part of a comprehensive line of PIR, Ultrasonic and Dual Technology wall switch sensors
- Typical Applications: Small and executive offices, small and medium conference rooms and lunch/break rooms
