Diode LED TOUCHDIAL Color Control System

SKU DI-RF-REC-CV-A
Availability:
In stock
Availability:
In stock
Availability:
In stock
Original price $128.16 - Original price $130.32
Original price
$128.16
$128.16 - $130.32
Current price $128.16
Type: Receiver

Estimated Shipping Widget will be displayed here! (with custom color)

OVERVIEW

Features

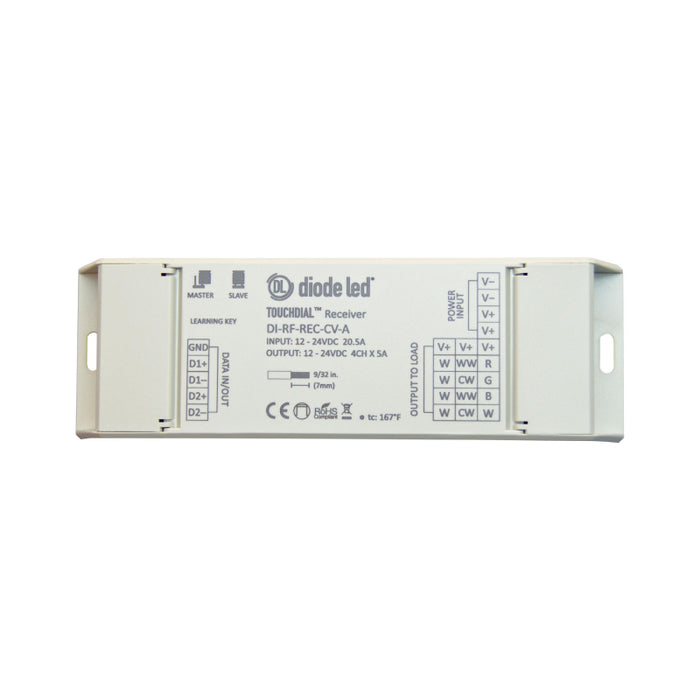

  • Receiver
    • Receiver for use with RGB color changing, adjustable kelvin, and single color applications
    • RGB(W), adjustable kelvin, and single color control
    • Input from Driver: 12-24VDC Constant Voltage
    • Output to Load: 12-24VDC Constant Voltage
    • Max Load: 4CH x 5A, 4CH x 60W (12V), 4CH x 100W (24V)

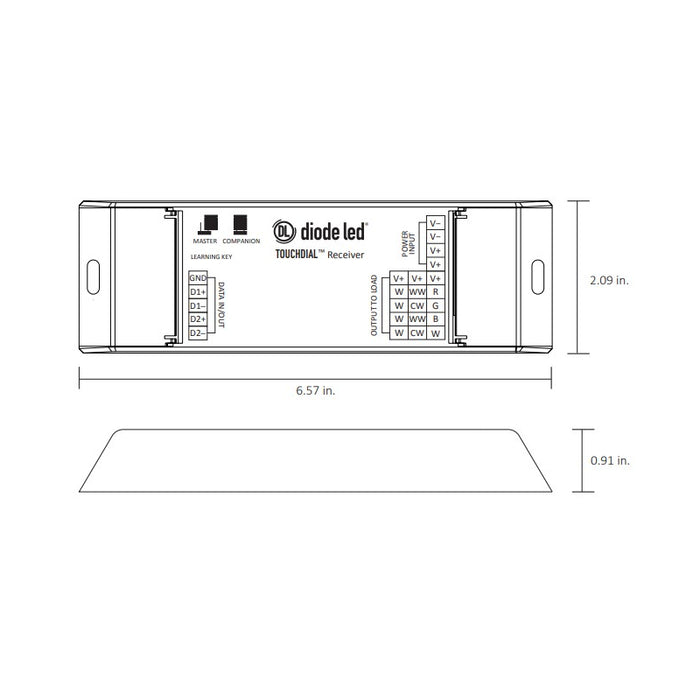

    • Dimensions: 6.57"L x 2.09"W x 0.91"H

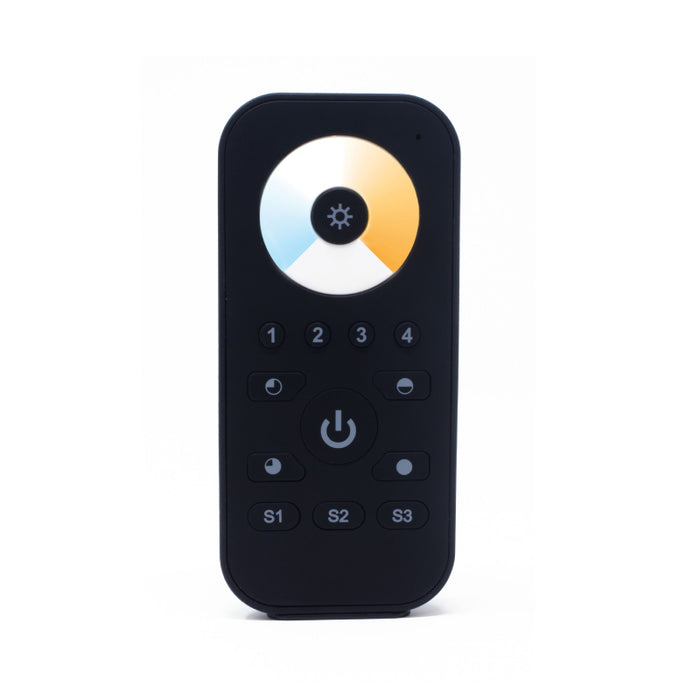

  • Tunable White 4-Zone Remote Controller
    • Input: 3x AAA 1.5V Batteries (Not Included)
    • Input Voltage: 12/24V

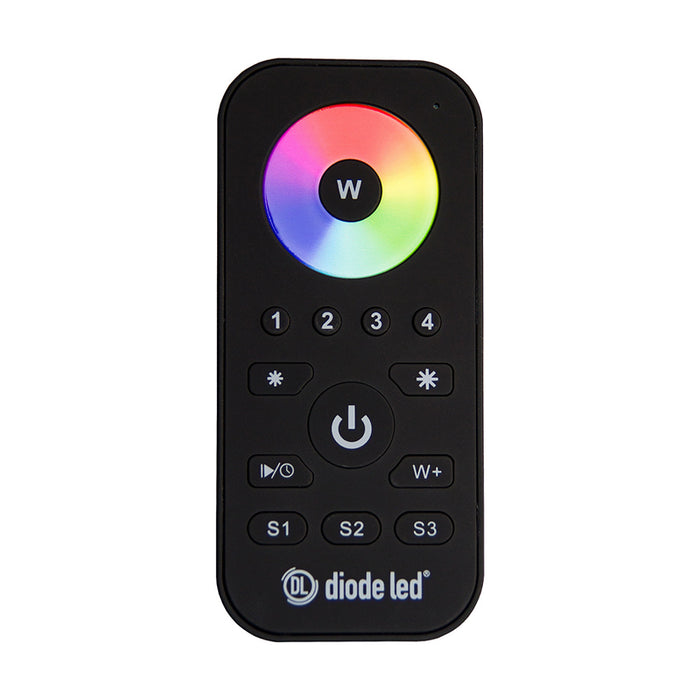

  • RGB(W) Remote Control
    • Four zone hand held color controller
    • RGB(W), adjustable kelvin, and single color control
    • Input: 3x AAA 1.5V Batteries (Not Included)
    • Signal: Radio Frequency
    • Range: 95 ft.

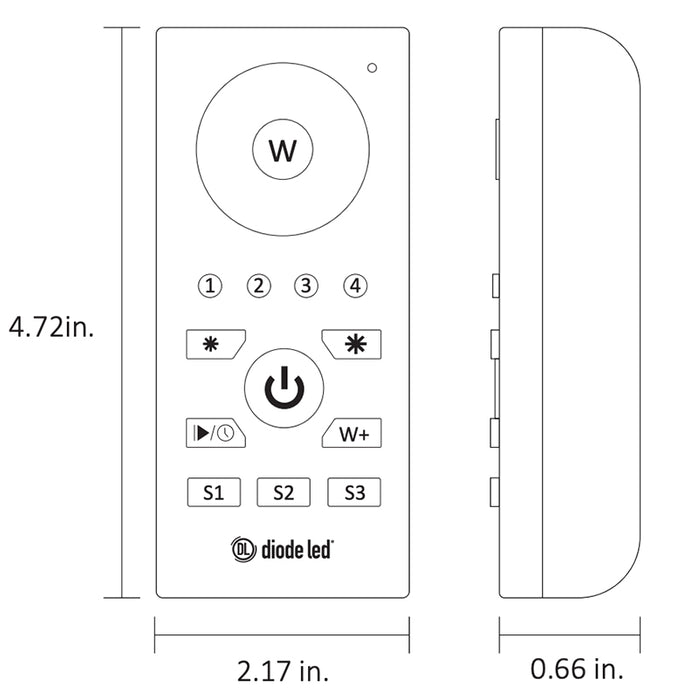

    • Dimensions: 4.72"L x 2.17"W x 0.66"H
    • Note: The TOUCHDIAL Remote RGB(W) Control is not compatible with the DI-RF-REC-CV-SC TOUCHDIAL Mini-Receiver

Warranty

  • 5 Year limited warranty

         Documents
