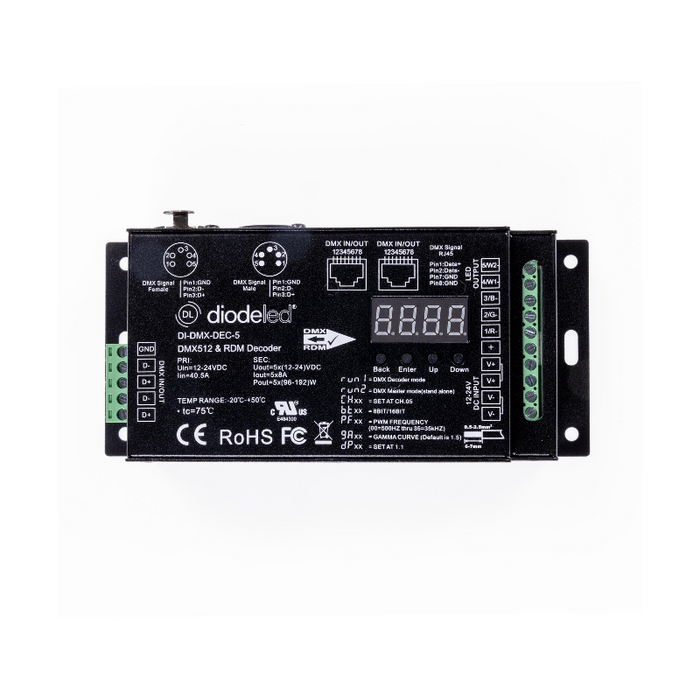

Diode LED DMX512 5-Channel Decoder with RDM
SKU DI-DMX-DEC-5
Original price
$0.00
-
Original price
$0.00
Original price
$182.25
$182.25
-
$182.25
Current price
$182.25
Availability:
In stock
Estimated Shipping Widget will be displayed here!
OVERVIEW
Control low-voltage LED lighting with flicker-free performance and compatible with 4-6 wire light engines; it can be used as a standalone/master controller or companion decoder. The 5-channel decoder featuring a digital display for fast and easy connections, has drive capacity up to 480W per receiver at 24V.
Features
- Input/Output Voltage: 12-24VDC
- Input Signal: DMX512
- Output Signal: PWM
- Maximum Load: 5 CH x 96W/192W
- Input/Output Connection Type: RJ45/5-Pin XLR
- Max Run: 10 Interconnected Units
- 5 Channel x 8A
- Standalone feature
- Compatible with 12 to 24 VDC LED lighting
- Indoor / Damp Location (IP20)

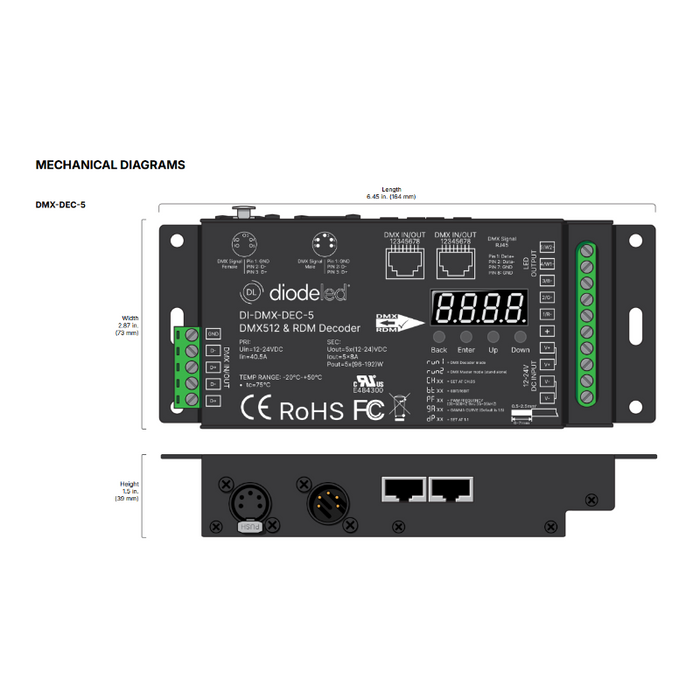

Dimensions
- Length: 6.45"
- Width: 2.87"
- Height: 1.5"
Warranty
- 5-Year Limited Warranty
