by Diode LED

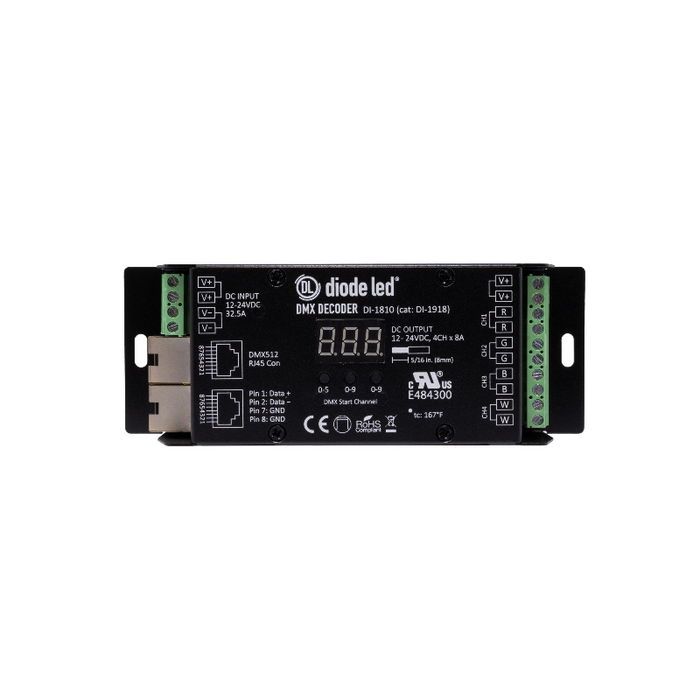

Diode LED DMX 4-Channel Decoder
SKU DI-1810
Original price
$0.00
-
Original price
$0.00
Original price
$144.90
$144.90
-
$144.90
Current price
$144.90
Availability:
In stock
Estimated Shipping Widget will be displayed here!
OVERVIEW
Translates a DMX signal into the PWM control signal used by RGB LED lights.
Features
- Input from Driver: 12-24VDC Constant Voltage
- Output to Load: 12-24VDC Constant Voltage
- Input Signal from DMX Control
- Output Signal to Load: PWM
- Max Load: 4 CH x 96W/192W (12V/24V)
- Easy to use Digital Display (no dip-switches)
- Compatible with most DMX controls
- Compatible with all Diode LED 12V and 24VDC constant voltage tape lights and fixtures
- Connect multiple units in series with standard CAT5 cable

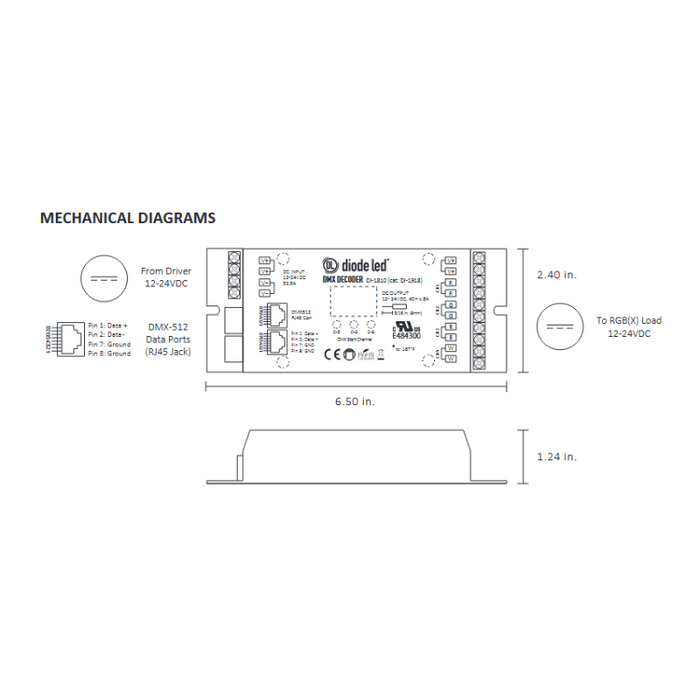

Dimensions
- Length: 6.5"
- Width: 2.4"
- Height: 1.24"
- Weight: 0.58 lb
Warranty
- 1-Year Limited Warranty
Documents
Labels:
