by Diode LED
Diode LED DI-SWTH-PSV 12-24V Passive Sensor Switch
SKU DI-SWTH-PSV
Original price
$0.00
-
Original price
$0.00
Original price
$76.05
$76.05
-
$76.05
Current price
$76.05
Availability:
In stock
Estimated Shipping Widget will be displayed here!
OVERVIEW

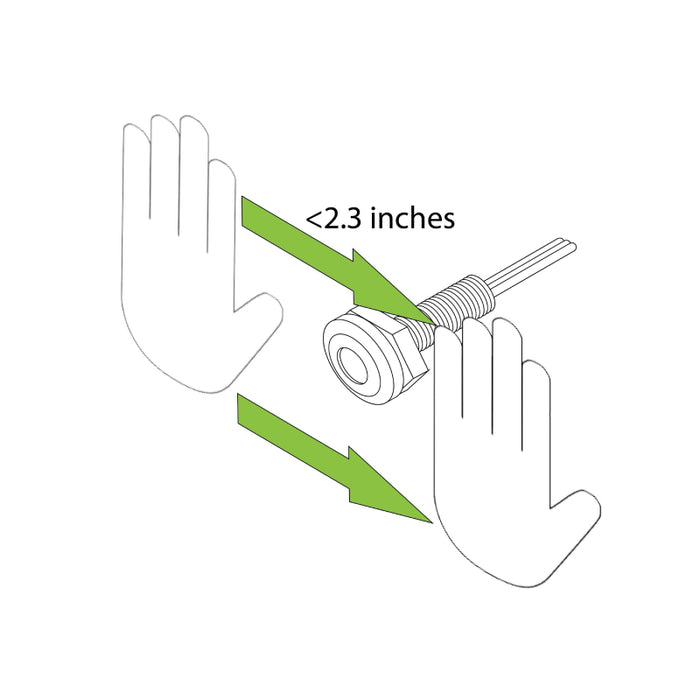

The Passive Sensor Switch is designed to activate the attached LED’s when an object passes fully through the sensor’s range. You can simply wave your hand in front of the sensor for a touch-free activation. (Refer to Installation Guide for more details).
Features
- Input Voltage: 12-24VDC Constant Voltage
- Output Voltage: 12-24VDC Constant Voltage
- Max Load: 12V 60W (5A), 24V 96W (4A)
- Sensor Range: < 2.3 inches
- For small-scale LED lighting installations
- Affordable and cost effective
- Easy to install
- Perfect for drawer, cabinet, or area specific lighting

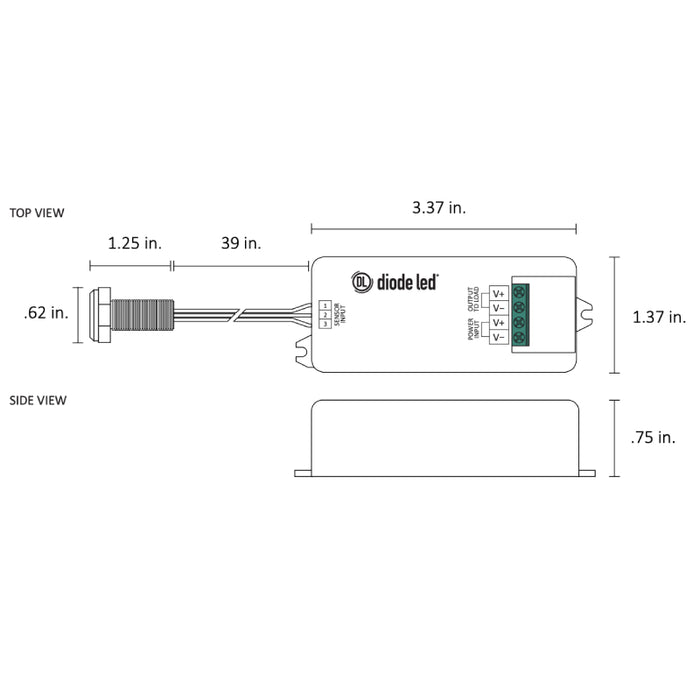

Dimensions
- Length: 3.37"
- Width: 1.37"
- Height: 0.75"
Warranty
- 5-Year Warranty
