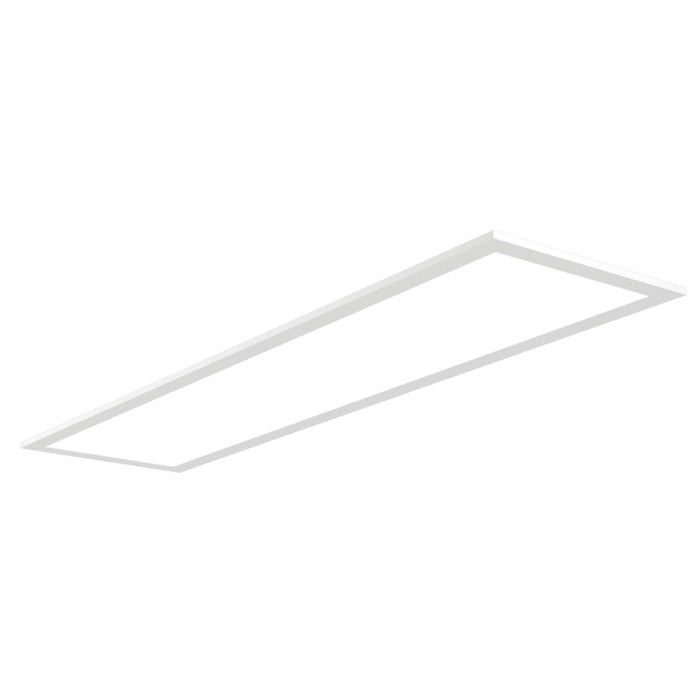

Columbia CBT14 1x4 CBT 23W/27W/39W LED Back-Lit Troffer, 3CCT & Lumen Selectable, 120-347V

The CBT is a LED panel with switchable lumen and CCT options to create built-in versatility. Perfect for offices, classrooms and many other applications.

Features

• Size: 1x4

• Finish: White
• Wattage: 23W/27W/39W
• Voltage: 120-347V
• Color Temperature: 3500/4000/5000K

• Lumens: 2750/3300/4400 lumens
• CRI: 80
• 0-10V 1% Dim to Off driver (standard) provides superior dimming capabilities

• Back-lit design and frosted lens provides smooth, even illumination across the face of the luminaire
• Luminaire housing is die formed code-gauge steel
• Low profile design is ideal for shallow plenum applications
• Frosted acrylic textured lens provides smooth surface brightness
• Integral T-bar clips for secure mounting to 9/16" and 15/16" grid ceiling

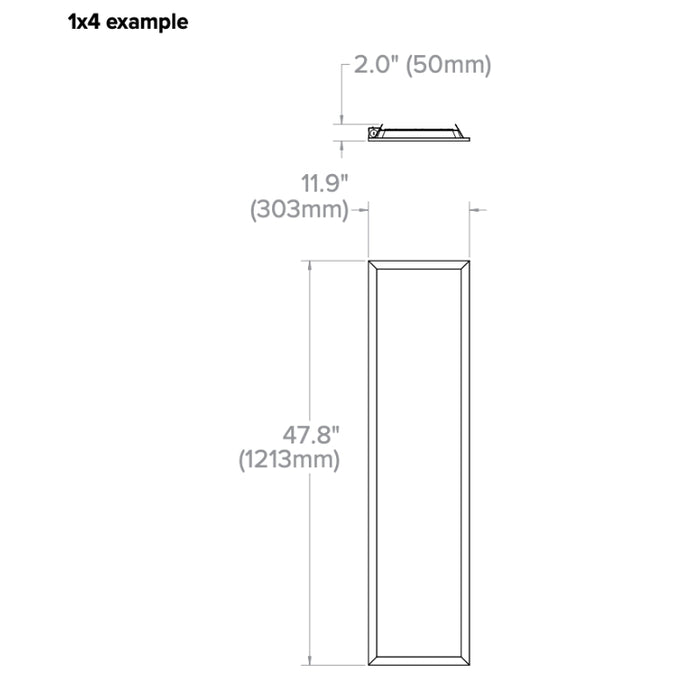

Dimension

• Length: 47.8"
• Width: 11.9"
• Height: 2"
• Weight: 4.99 lbs

Estimated Life

• 60,000 hour LEDs at L90 for reduced maintenance


Warranty

• 5 year warranty

Document

• Spec Sheet
• Instruction Sheet
