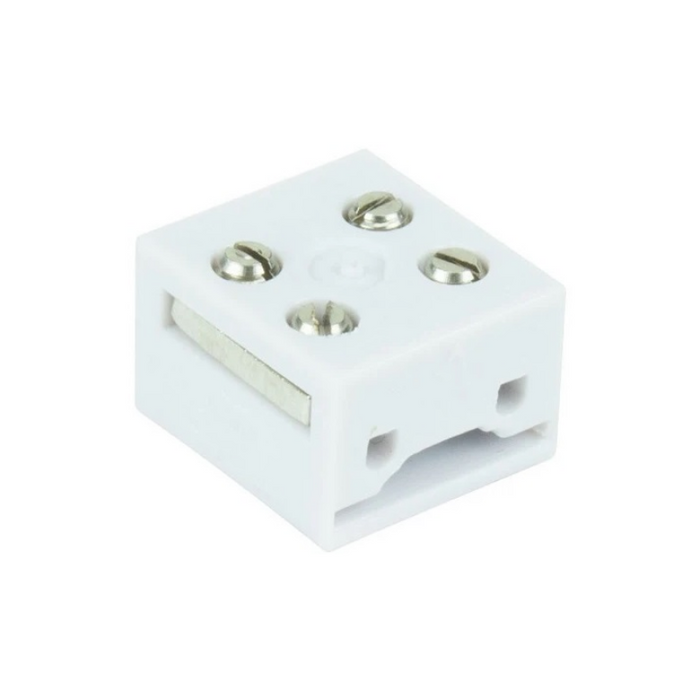

American Lighting TL-BLKS Trulux Trulink 4-in-1 Connector Block, 10-Pack

This multipurpose connector block powers, splices, and connects Trulux Single Color tape light in multiple fashions and is designed to make installations faster and easier.

Compatible Tape Lights (Sold Separately):

• HTL-COBFC Trulux 3W/ft LED Tape Light
• SPTL-SCOB Trulux 5.85W/ft LED Tape Light
• STL-COB-PROKIT Trulux 2.19W/ft LED Tape Light Kit
• HTL20-COB Trulux 5W/ft LED COB Pro Kit
• STLHD-WW Trulux 2.19W/ft LED Tape Light Pro Kit
• HTLHD-WW Trulux 3.65W/ft LED Tape Light Pro Kit
• HTL-WW Trulux 4.6W/ft LED Tape Light 5M Kit
• STL-UWW Trulux 2.19W/ft LED Tape Light 5M Kit

Features

• Sold in Pack of 10
• 4A capacity

• Connecting Trulux tape light via wire-to-tape, tape-to-tape splice, tape-to-tape jumper, or tape-to-tape with central feed.
• When using the Trulink Connector, it is recommended to scrape off the coating from each conductor to ensure a proper connection
• Surface or recess mount via attached 3M double-sided adhesive tape (Not Supplied)
• Indoor, dry use only.
• IP 20 rated

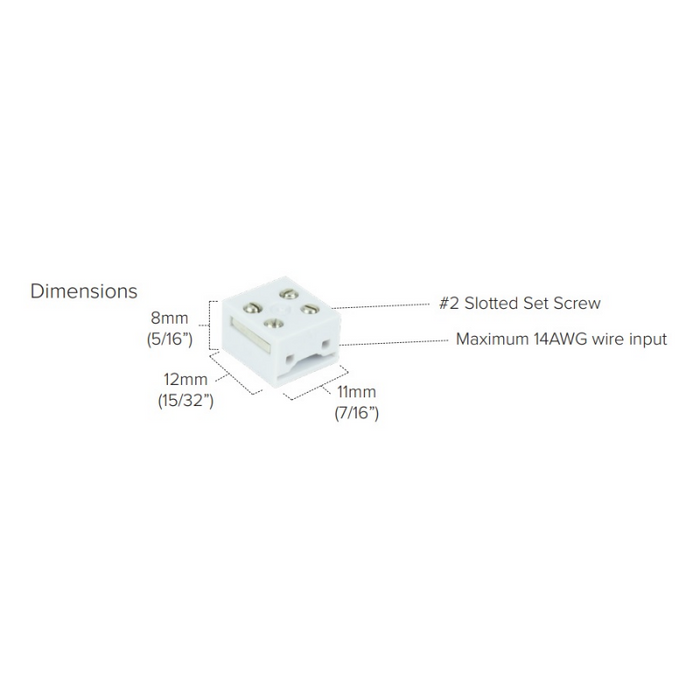

Dimensions

• Length: 0.47"
• Width: 0.44"
• Height: 0.31"

Documents

• Spec Sheet
