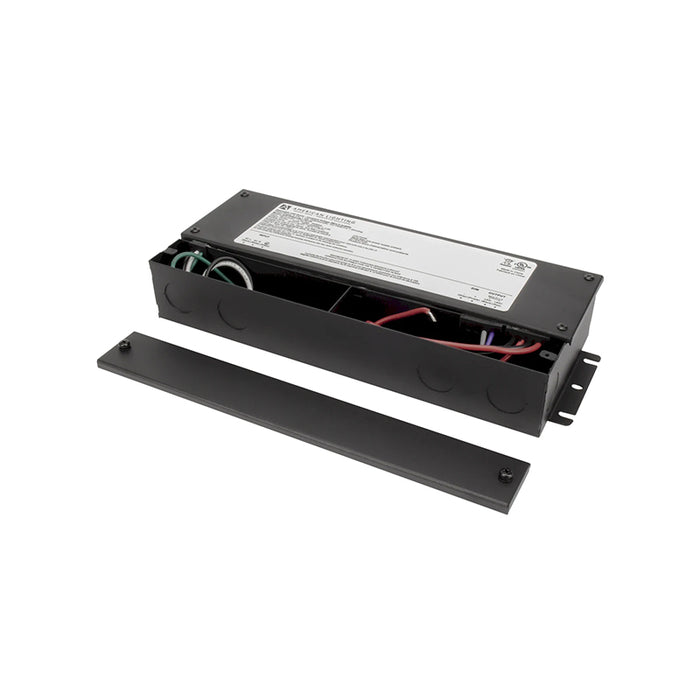

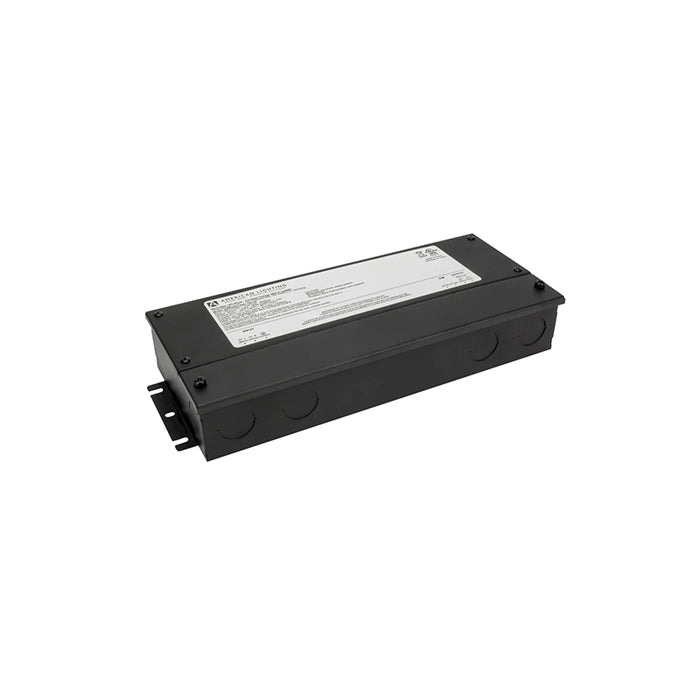

American Lighting ADPT-DRJ-192-24 Adaptive 192W 24V Power Supply
SKU ADPT-DRJ-192-24
Original price
$0.00
-
Original price
$0.00
Original price
$269.55
$269.55
-
$269.55
Current price
$269.55
Availability:
in stock, ready to be shipped
Estimated Shipping Widget will be displayed here!
OVERVIEW
The Adaptive LED Driver series are class 2 rated and designed to operate with any standard ELV, MLV, Incandescent TRIAC (Leading edge) dimmer switch and is forward phase and reverse phase compatible. Encased in a low profile aluminum enclosure that includes knock-outs for easy and quick installation makes it the perfect choice for under cabinet lights, tape light and various LED fixture installations.
Features
- Finish: Black
- Minimum Load: 19.2W
- Max Load: 192W
- Input Voltage: 100-277V
- Output Voltage: 24V DC
- Dimming: Phase Dimming / MLV / ELV / TRIAC
- Forward phase and reverse phase compatible
- Short circuit, over-load, and over-temperature protections
- Slim, compact aluminum housing design
- Integrated wiring compartment
- PWM Output with 10-100% load operation
- Free air convection cooling
- Class 2, Class P, Type HL, FCC compliant

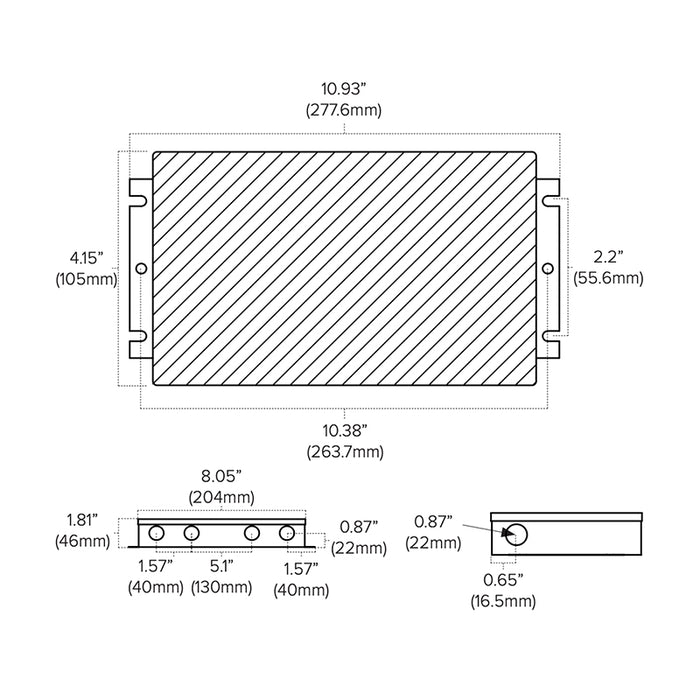

Dimensions
- Length: 10.93"
- Width: 4.15"
- Height: 1.81"
- Weight: 4.6 lbs
