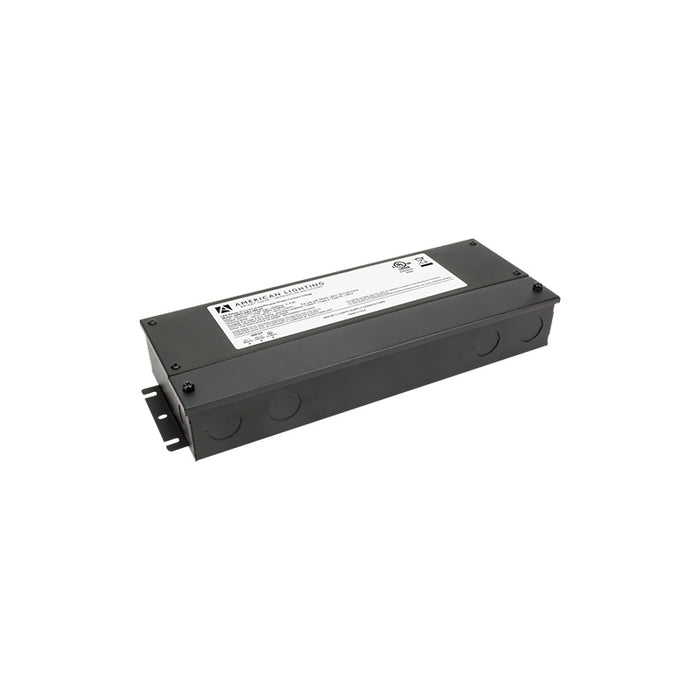

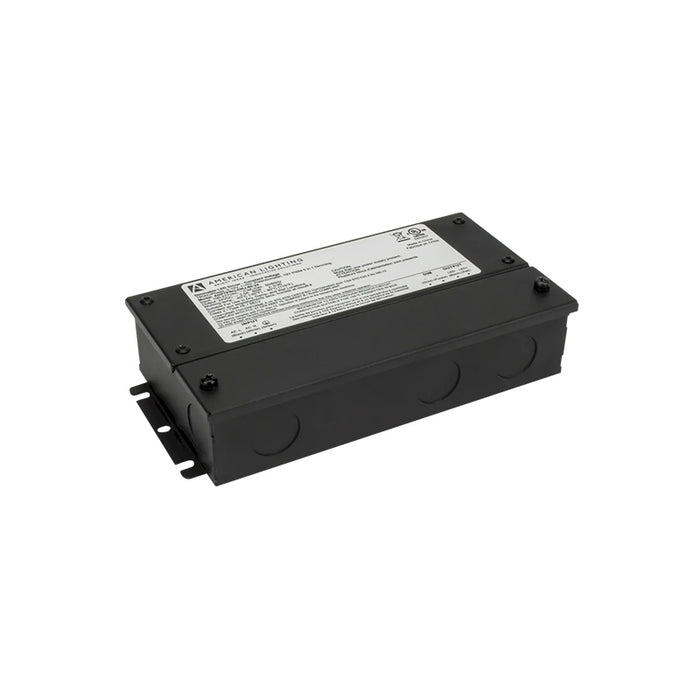

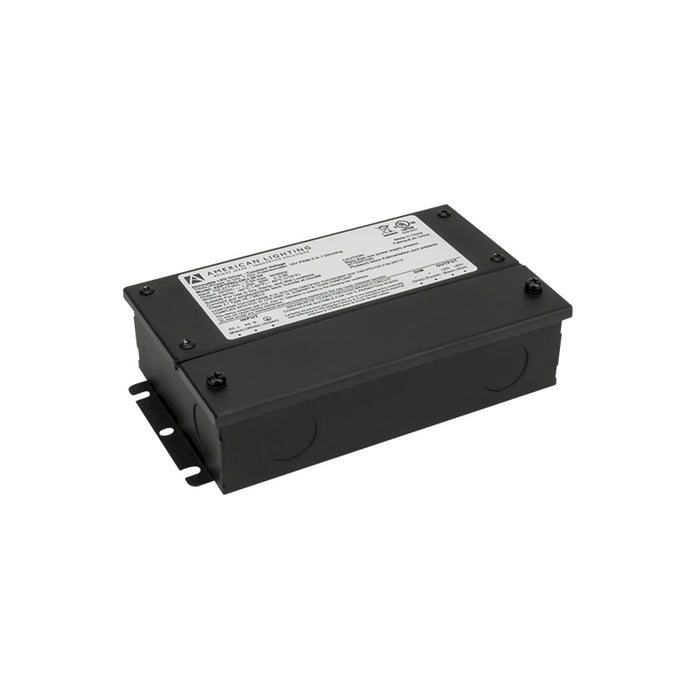

American Lighting Adaptive PRO Driver with Enclosed Leads and Knockouts 24V DC
SKU ADPTPRO-DRJ-30-24
Original price
$0.00
-
Original price
$0.00
Original price
$100.26
$100.26
-
$380.88
Current price
$100.26
Availability:
in stock, ready to be shipped
Availability:
in stock, ready to be shipped
Availability:
in stock, ready to be shipped
Availability:
in stock, ready to be shipped
Availability:
in stock, ready to be shipped
Estimated Shipping Widget will be displayed here!
OVERVIEW

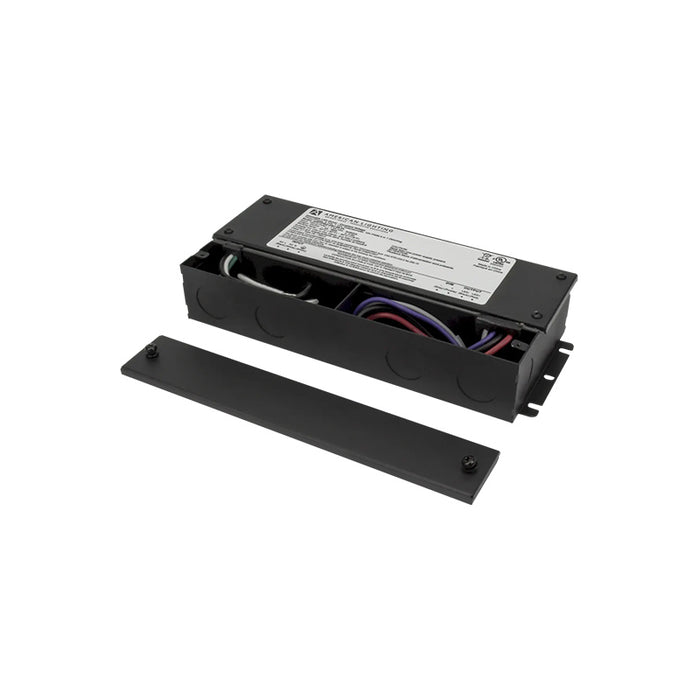

The Adaptive Pro 5-in-1 dimmable Class 2 drivers are designed to operate with any standard MLV / ELV / Incandescent TRIAC (forward phase) dimmer switch or can also be used with secondary side controls systems. Encased in a low profile aluminum enclosure that includes knock-outs for easy installation in any low voltage application.
Compatible Tape Lights (Sold Separately):
Features
- Finish: Black
- Wattage/Rated Current:
- 30W, 1.25A

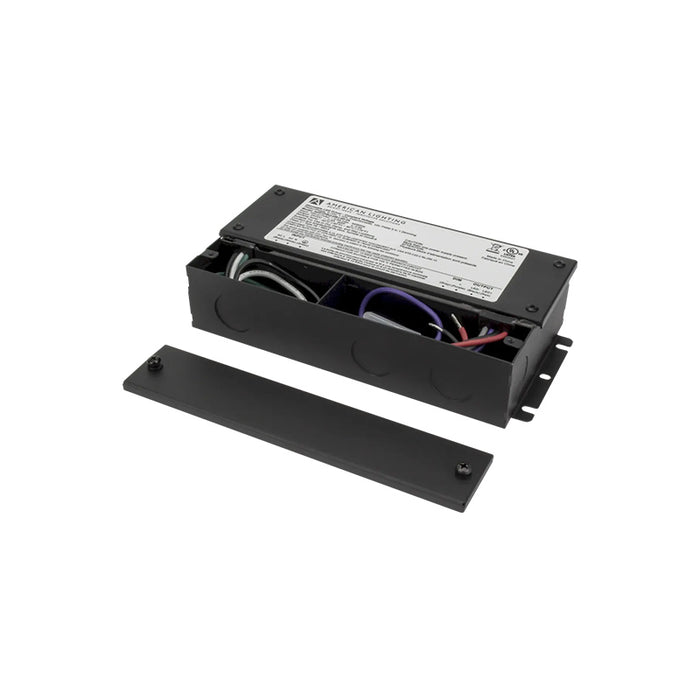

- 60W, 2.5A

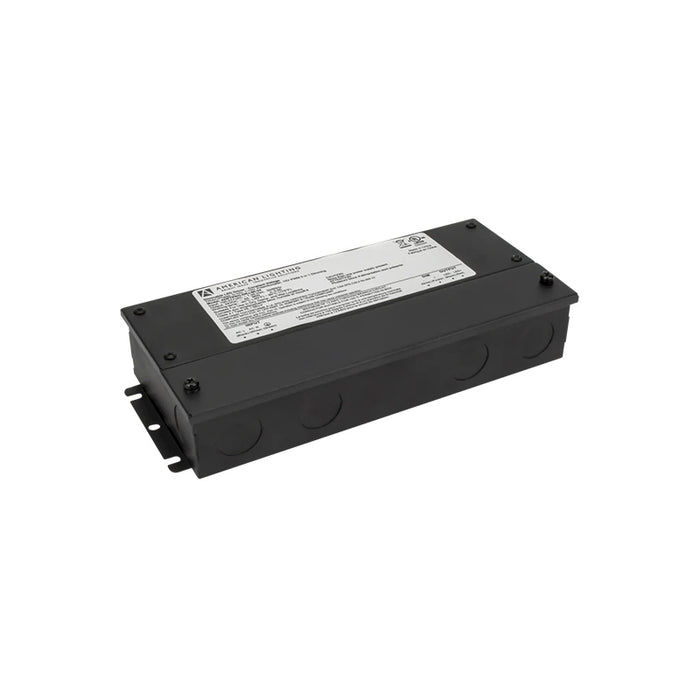

- 96W, 4A

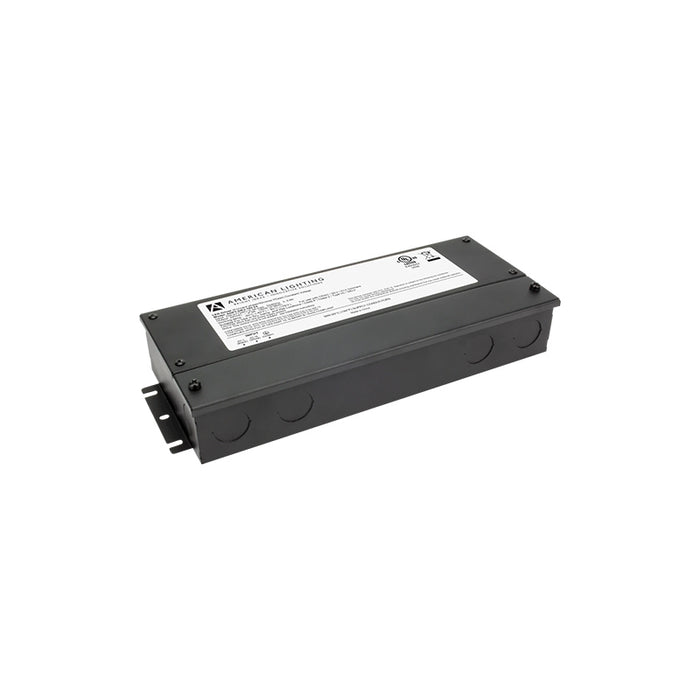

- 192W (2 x 96W), 2 x 4A
- 288W (3 x 96W), 3 x 4A
- Input Voltage: 100-277V AC
- Output Voltage: 24V DC
- 5-in-1 Forward and Reverse Phase Dimming:

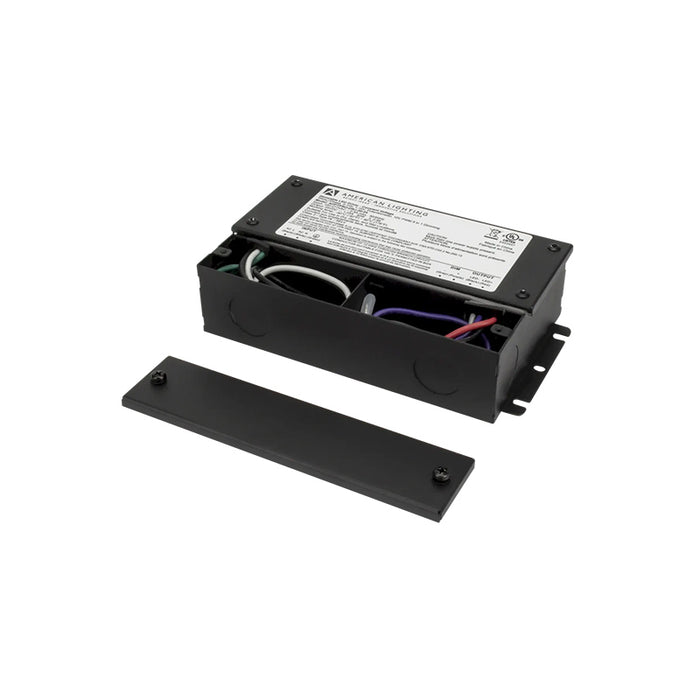

ELV / MLV / TRIAC / 0-10V / 1-10V / 10V PWM / Potentiometer - Dedicated line voltage and low voltage wiring compartments
- Short circuit, over-load, and over temperature protections
Dimensions

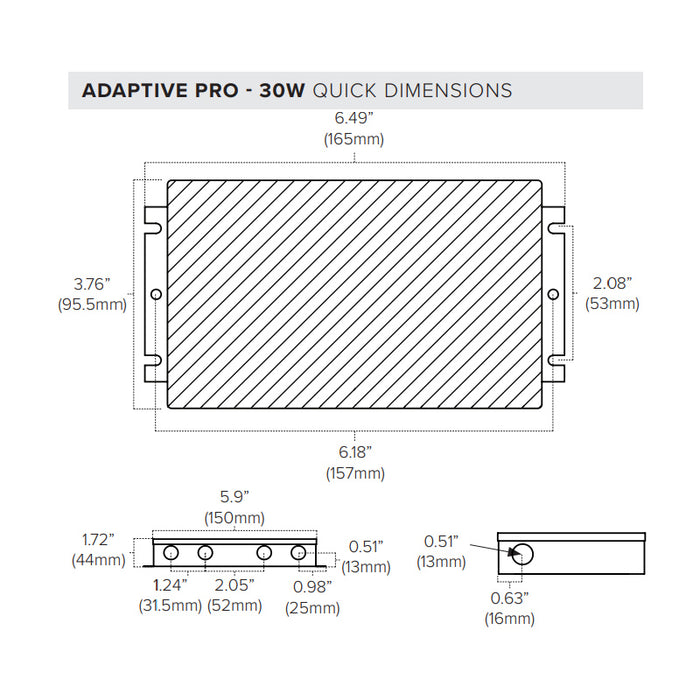

- 30W: 6.49" L x 3.6" W x 1.02" H

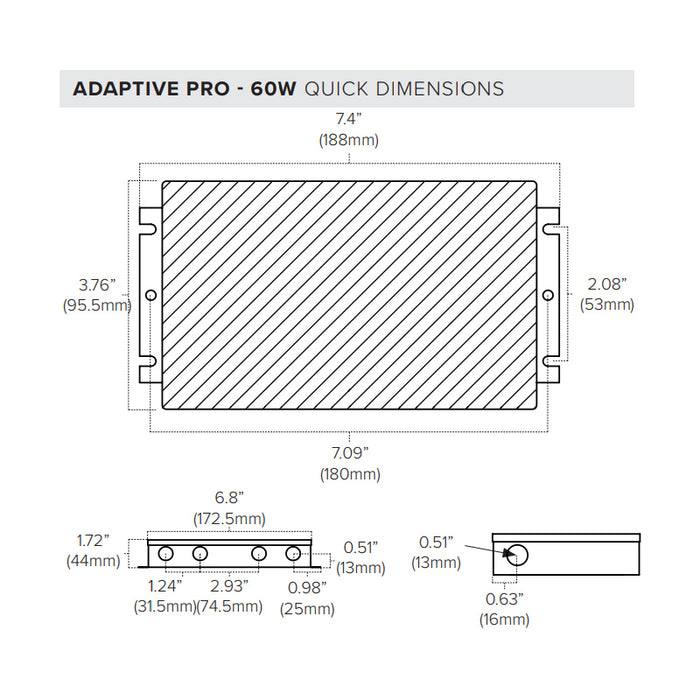

- 60W: 7.44" L x 3.77" W x 1.73" H

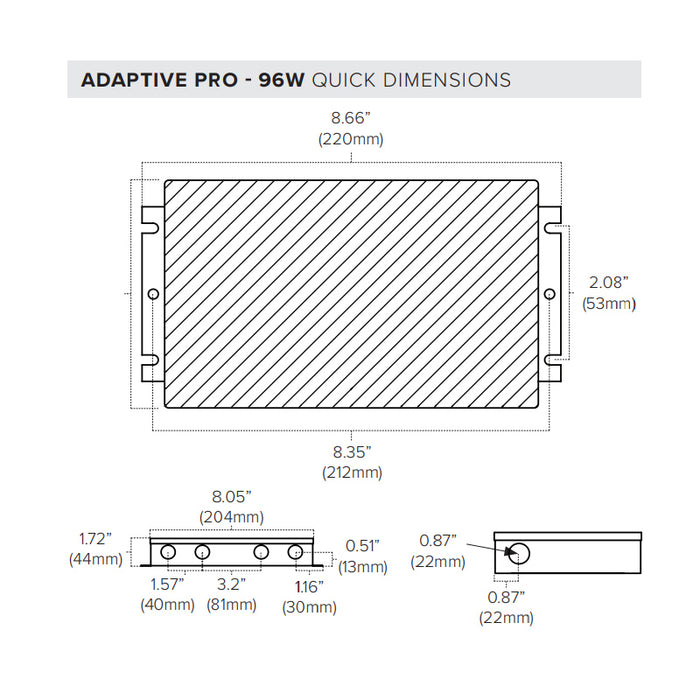

- 96W: 8.7" L x 3.77" W x 1.73" H

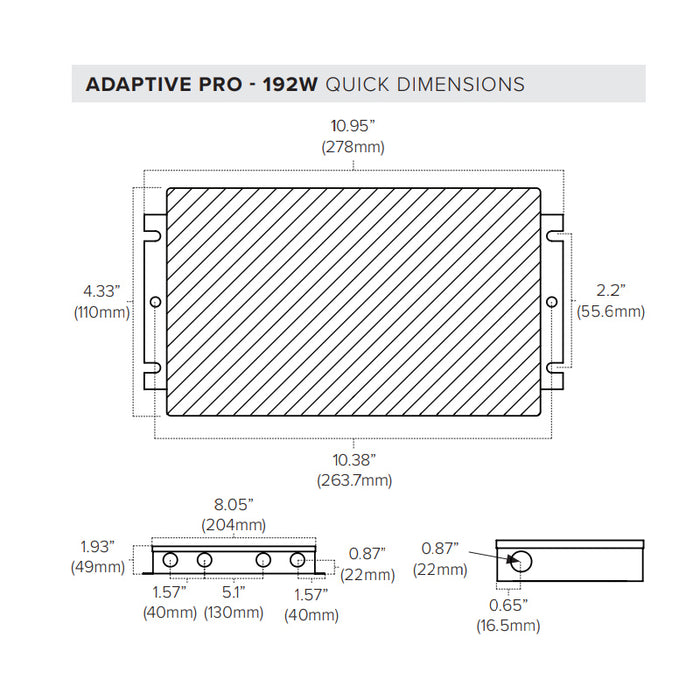

- 192W: 10.94" L x 4.33" W x 1.88" H

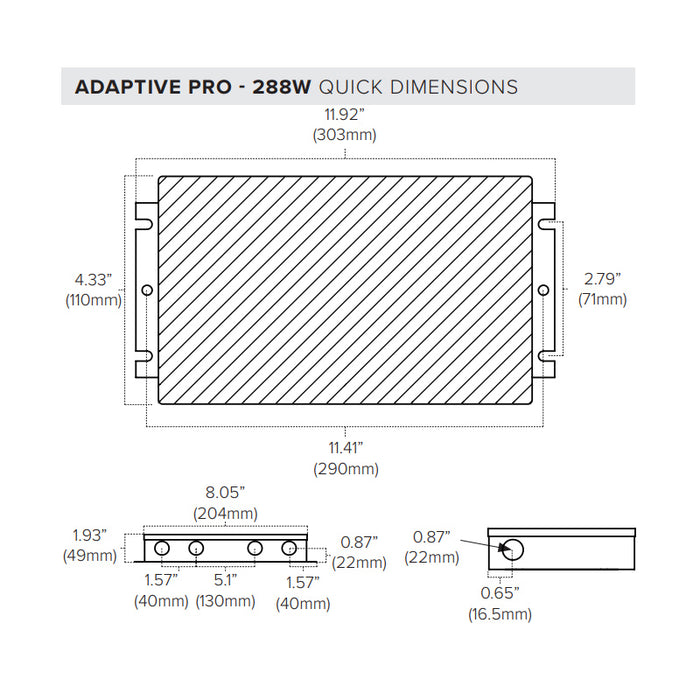

- 288W: 11.29" L x 4.33" W x 1.88" H
Documents
Labels and Listings
- cULus Listed Wet location rated
- Class 2, Type HL, FCC Compliant
