American Lighting Adaptive PRO Driver 24V DC
SKU ADPTPRO-DR-200-24
Original price
$0.00
-
Original price
$0.00
Original price
$295.02
$295.02
-
$380.16
Current price
$295.02
Availability:
in stock, ready to be shipped
Availability:
in stock, ready to be shipped
Estimated Shipping Widget will be displayed here!
OVERVIEW
The Adaptive Pro 5-in-1 dimmable drivers are designed to operate with any standard MLV / ELV / Incandescent TRIAC (forward phase) dimmer switch or can also be used with secondary side controls systems. Encased in a sealed low profile aluminum enclosure Suitable for outdoor locations.
Compatible Tape Lights (Sold Separately):
Features
- Finish: Black
- Wattage/Rated Current:
- 200W, 8.33A
- 300W, 12.5A
- Input Voltage: 100-277V AC
- Output Voltage: 24V DC
- 5-in-1 Forward and Reverse Phase Dimming:
ELV / MLV / TRIAC / 0-10V / 1-10V / 10V PWM / Potentiometer - Class I metal housing (Type HL)
- 8” (SJTW) Lead & Tail Wire
- Short circuit, over-load, and over temperature protections
Dimensions

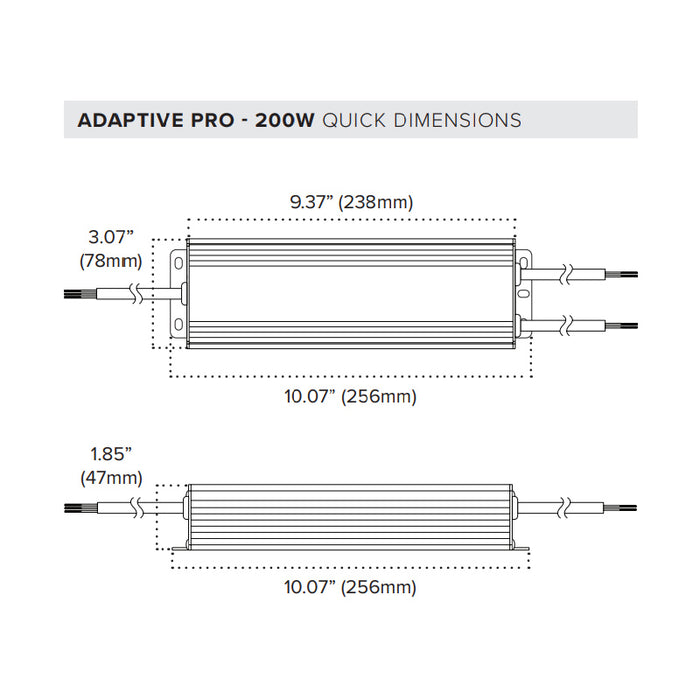

- 200W: 10.07" L x 3.07" W x 1.85" H

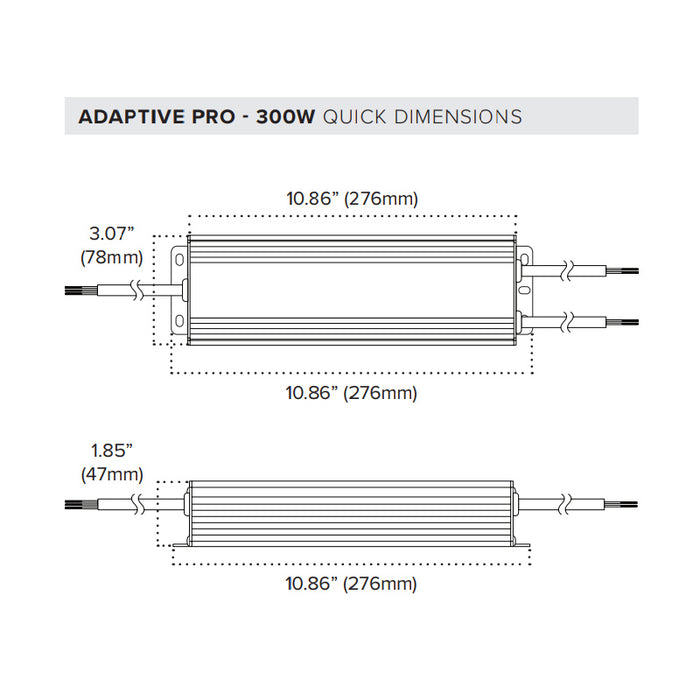

- 300W: 10.86" L x 3.07" W x 1.85" H
Documents
Labels and Listings
- cULus Listed Wet location rated
- Class P, Type HL, FCC Compliant
