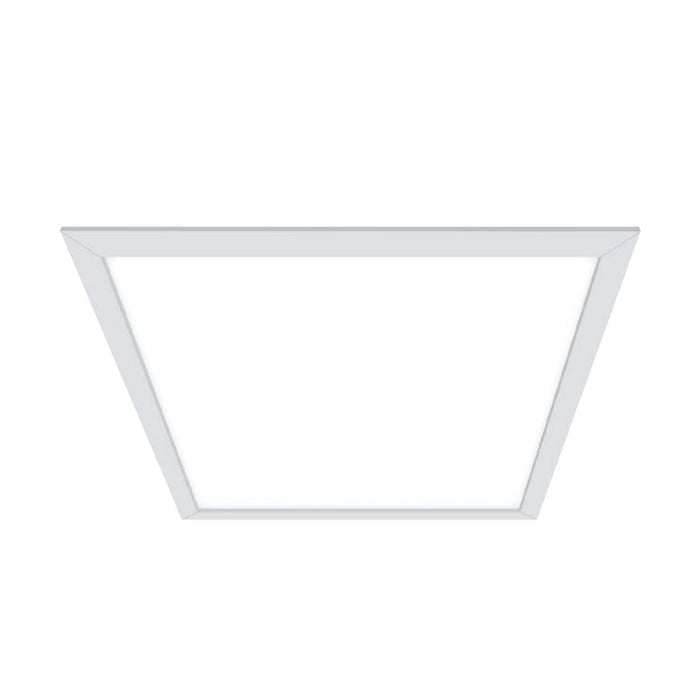

Metalux CGTS 2x2 LED Flat Panel, 3CCT & Lumens Selectable, 120-277V, 8W Emergency Battery Backup

eatures

• Size: 2 x 2
• Wattage: 19W / 28W / 32W
• Voltage: 120-277V

• Color Temperature: 3500K/4000K/5000K Selectable
• Lumens: 2817-4686
• CRI: 80
• Dimming: 0-10V dimming, 10% standard
• Selectable switches are located on top of the junction box, for quick adjustment before and after installation

• Acrylic micro-optics provide uniform illumination across the entire lens
• Extruded aluminum frame tightly seals to the housing for optimal performance and aesthetics
• With 8W Emergency Battery Backup

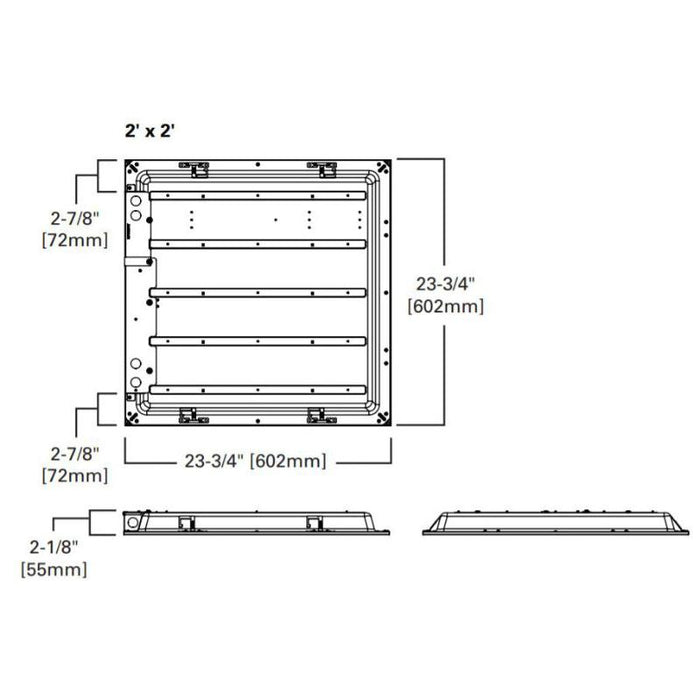

Dimensions

• Length: 23.75"
• Width: 23.75"

• Height: 2.13"

• Weight: 8.3 lbs

Estimated Life

• based on TM21 testing standards is >L82@60,000 hours


Warranty

• 5-year limited warranty

Documents

• Spec Sheet
• Instruction Sheet

Labels and Listings

• cULus listed for 25C ambient environments, indoor applications
• IC rated for direct insulation contact
• Damp location listed
• Qualifies as State of California Title 24 high efficiency luminaire
• FCC part 15 class B (residential) compliant
• DesignLights Consortium® Qualified and classified for DLC standard.
• Meets IP5X rating from the room side with no modification needed
• Fixture is rated for NSF/ANSI standard 2 - Light fixture for Splash Zone and Non-Food Zone
