Halo Commercial HC8 8" Round New Construction/Remodel Housing Frame, 7W Emergency Battery Pack with Remote Test/Indicator Light, 6000 Lumens, 120-277V

Compatible Fixtures (Sold Separately):

• HM8 (80 CRI)
• HM8 (90 CRI)
• 81NDC
• 81RWWBB
• 81RWWHWF

Features

• LED Module and Reflector sold separately
• Complete installation = Housing Frame + LED Module + Reflector
• Construction: Boat shaped galvanized steel plaster frame with adjustable plaster lip
• Wattage: 57.4W
• Voltage: 120-277V

• Lumens: 6000
• 1%-100% dimming with 0-10V dimming
• 7 watt emergency battery pack with remote test / indicator light
• Provides 90 minutes of standby lighting meeting most life safety codes for egress
• Available with integral or remote charge indicator and test switch

• Available Self-Test (self-diagnostic), with remote charge indicator and test switch
• Mounting frame converts to remodel that installs from below the ceiling
• Provided with (2) old work clips to secure the frame to the ceiling when remodeling

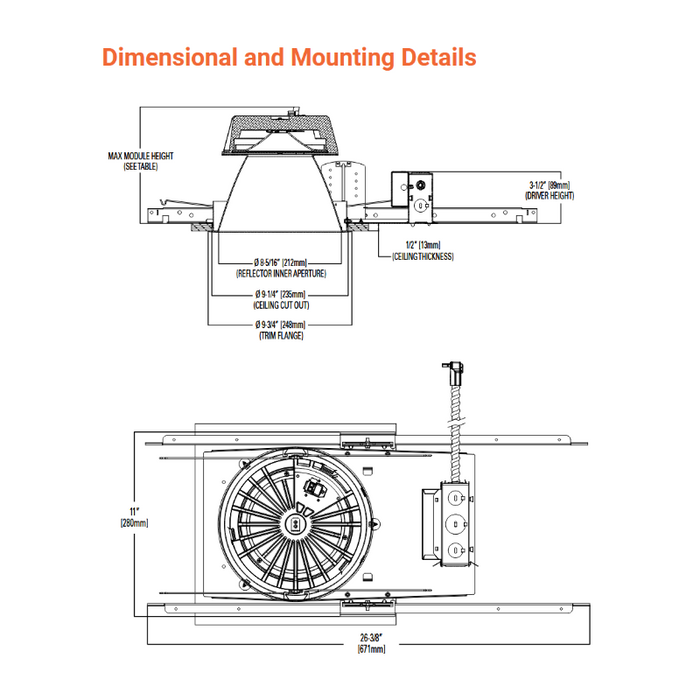

Dimensions

• Length: 26.38"
• Width: 11"
• Height: 3.5"

Warranty

• 5-year limited warranty

Documents

• Spec Sheet
• Instruction Sheet

Labels and Listings

• cULus Certified to UL 1598 / C22.2 No. 250.0, suitable for damp locations and wet locations in covered ceilings only
• Emergency options provided with UL Listed emergency drivers to UL 924 / C22.2 No. 141, suitable for indoor/damp locations
• IP20 - Above finished ceiling; IP65 - Below finished ceiling
• Emergency battery backup options are Non-IC only
• Airtight per ASTM-E283-04
• EMI/RFI emissions FCC CFR Title 47 Part 15 Class A 120/277V
• Contains no mercury or lead and RoHS compliant

• May be used to comply with State of California Title 24 non-residential code, in Non-IC, as a dimmable LED luminaire
• ENERGY STAR® certified, refer to certified light fixtures database
