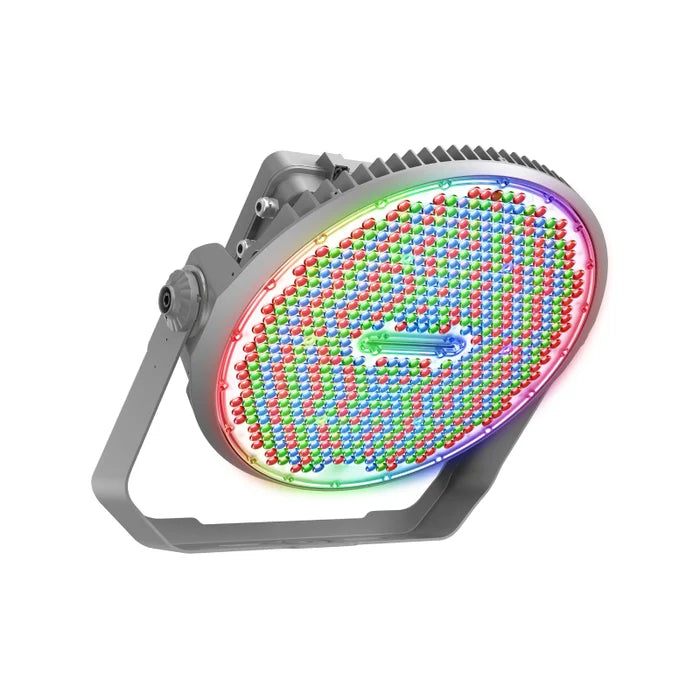

Westgate SFX-G10 800W LED RGB Stadium Sport Light DMX512 Controlled, RGB, 49600 LM, 200-480V

The SFX-G10 RGB Stadium Sport Light is a highoutput, DMX512 controlled LED sports fixture designed for stadiums, sports fields, recreational facilities, and high-mast outdoor lighting applications.

Features

• Finish: Gray
• Wattage: 800W

• Voltage: 200-480V
• Color Temperature: RGB

• Lumens: 49600

• Dimming: DMX / PWM / 0-10V compatible control interface

• Beam Angle: 45°

• Driver Type: Constant current
• DMX controller not included
• RGB version uses waterproof connector interface with dedicated daisy-chain dimming connection
• DMX signal connection uses D+ / D- terminals
• Daisy-chain DMX connection terminals provided for D+ and D-
• Wire stripping length: 8-9mm

Dimension

• Width: 22.2"

• Height: 20.71"
• Depth: 12.83"


Document

• Spec Sheet

Accessory (Sold Separately):

• Slip-Fitter Adapter: SFX-G10-SF
• Quick Clamp Adapter: SFX-G10-QC
• Visor Accessory: SFX-G10-VISOR-800W

Labels and Listings:

• UL listed
• IP66
• IK08 impact-resistant construction
