by Wattstopper

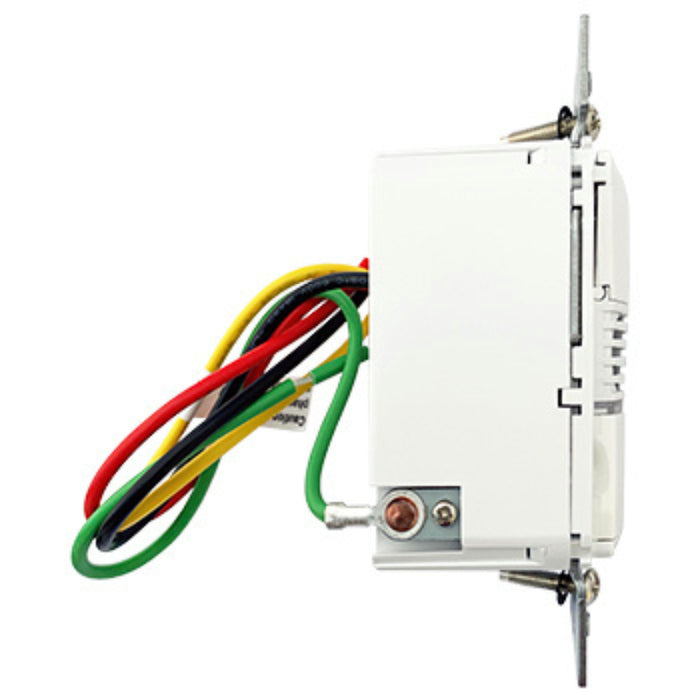

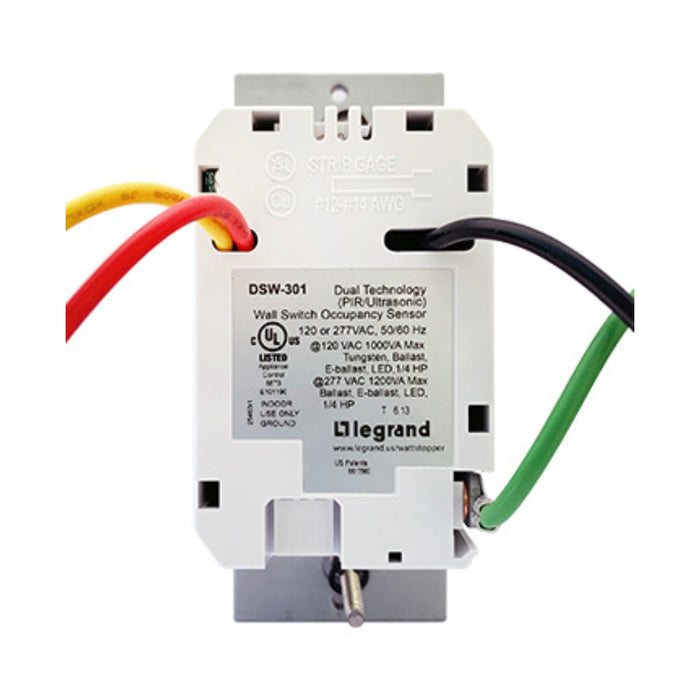

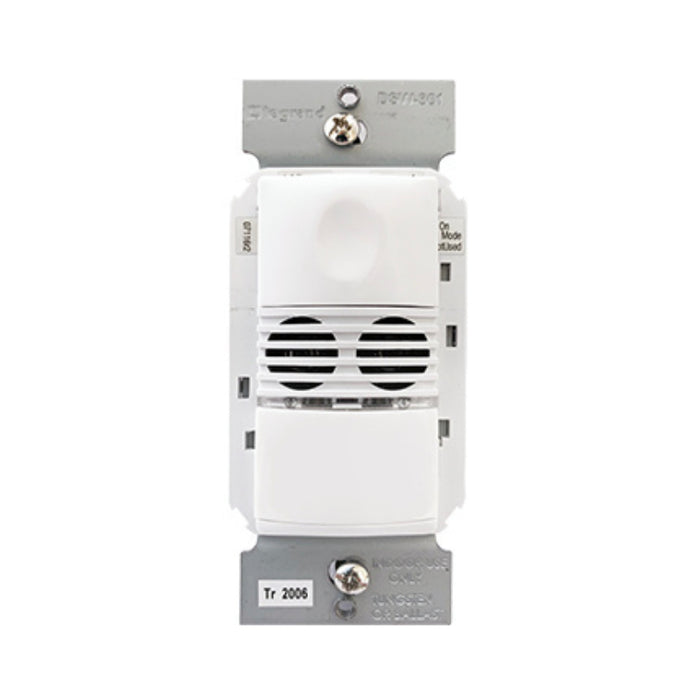

Wattstopper DSW-301 Dual Technology Wall Switch Occupancy Sensor, 347V
SKU DSW-301-347-W
Original price
$0.00
-
Original price
$0.00
Original price
$120.14
$120.14
-
$120.14
Current price
$120.14
Availability:
In stock
Estimated Shipping Widget will be displayed here!
OVERVIEW
The DSW-301 dual technology wall switch sensor turns lights OFF and ON based on occupancy. It combines the benefits of passive infrared (PIR) and ultrasonic detection technologies. The DSW-301 replaces existing wall switches and fits behind a standard decorator wall plate.
Features
- Wallplate sold separately
- Finish: White
- Voltage: 347 VAC
- Load: 0-1500W ballast & LED, 1/4 hp
- Manual On
- Zero-crossing for long relay life
- Vandal resistant lens combines precise coverage with durability
- Selectable walk-through mode turns lights off three minutes after initial occupancy if no motion is detected after the first 30 seconds
- Test mode allows quick and easy adjustments
- In automatic mode, sensor returns automatically to Auto-ON after lights are turned off manually; ideal for presentations
- Selectable audible alert for impending shutoff
- Four occupancy logic options to customize control to meet application needs
- Service mode allows sensor to operate as a service switch in the unlikely event of a failure
Dimensions
- Length: 2.73"
- Width: 1.75"
- Height: 1.81"
Warranty
- 5-year limited warranty
Documents
Labels and Listings
