Westgate WMXE 100W/120W/150W Outdoor LED Wall Pack
SKU WMXE-LG-100-150W-MCTP-P
Original price
$0.00
-
Original price
$0.00
Original price
$206.74
$206.74
-
$229.74
Current price
$206.74
Availability:
in stock, ready to be shipped
Availability:
in stock, ready to be shipped
Estimated Shipping Widget will be displayed here! (with custom color)
OVERVIEW
Ideal for general site lighting, alleys, loading docks, doorway, pathway, and parking areas.
Features
- Finish: Bronze, Black
- Wattage: 100W / 120W / 150W Selectable
- Voltage: 120-277V
-
Color Temperature: 3000K / 4000K / 5000K Selectable
- Lumens: 14000 / 16800 / 21000
- CRI: >70
- Dimming: 0-10V Dimming
- Multi-Power Switch is inside the Fixture
- ADC12 Aluminum Heat Sink, Outdoor Powder Coating
- Lens: Prismatic Borosilicate Glass Lens
- Same Footprint as Traditional HID Wall Packs
- DC Button Photocell with ON/OFF switch Included
- Four 1/2" Hubs: 1 top. 1 on Each Side, 1 Rear
- IP 65 rated

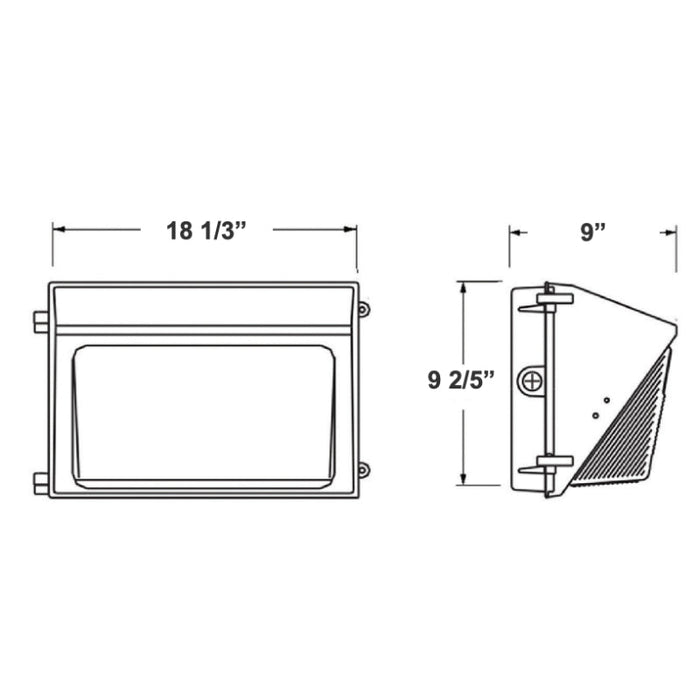

Dimensions
- Width: 18.13"
- Height: 9.4"
- Depth: 9"
Estimated Life
- 70,000 Hours Rated Life
Warranty
- 7-Year Limited Warranty
Documents
- Spec Sheet
- Instruction Sheet
- Photometry & Revit (BIM)
- WMXE .IES
