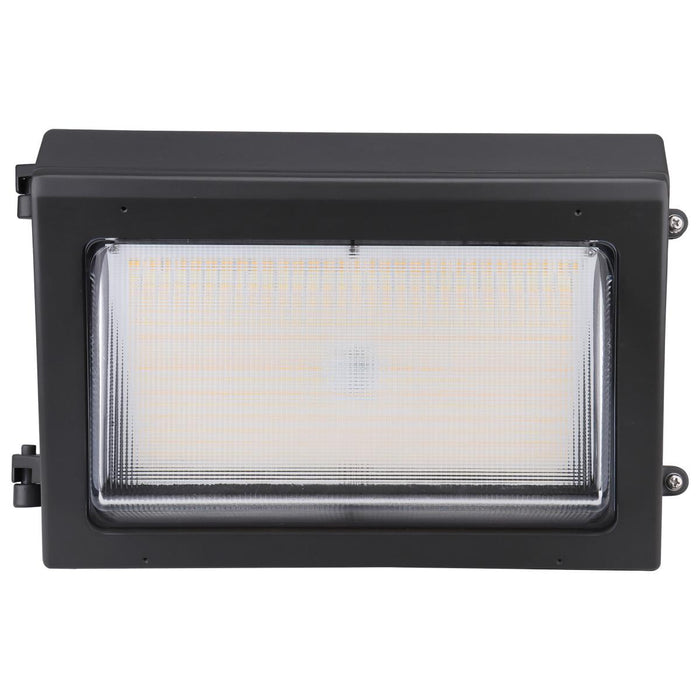

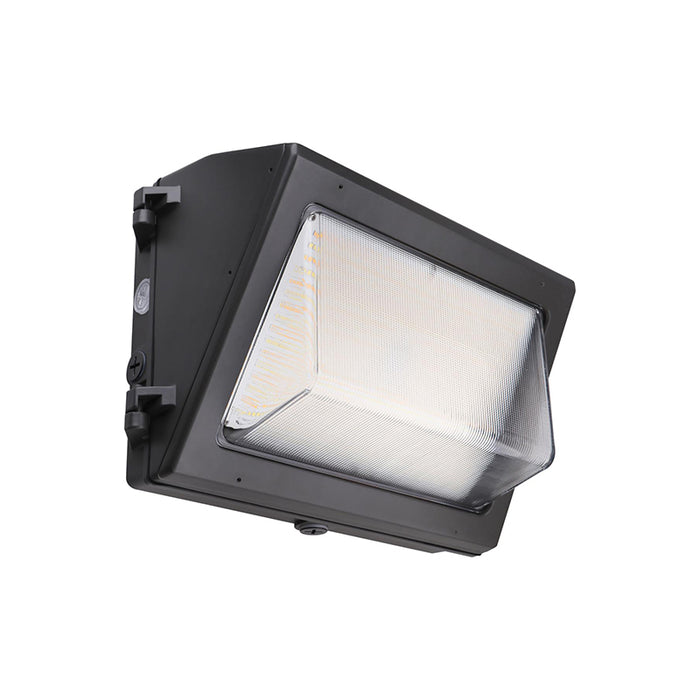

Nuvo 65-754 29W/40W/60W Emergency Architectural LED Wall Pack, CCT Selectable & Watt Adjustable

Introducing our new CCT and Wattage selectable wall packs with integrated by-passable photocells and emergency battery backup modes. These cULus certified wall packs are offered in both a traditional and semi-cutoff style in two wattage configurations, 29W/40W/60W and 80W/100W/120W. They are CCT selectable 3000K, 4000K and 5000K and both feature battery back up modes consisting of 16 watts of power at 1120 lumens with a 90 minute run time. The traditional style is offered in both 120V-277V and 120V-347V and the semi-cutoff version is 120V-277V. Both styles are 4KV, rated for 50,000 hours, are DLC premium, and carry a 5 year warranty.

Features

• Finish: Bronze
• Material: Die Cast Aluminum, Glass Lens
• Wattage: 29W/40W/60W
• Voltage: 120-277V
• Color Temperature: 3000K/4000K/5000K Selectable
• Lumens: 4060-8640
• CRI: 80
• Dimming: 0-10V
• Beam Angle: 110°
• Maintenance free
• IP 65 rated

• Integrated by-passable photocell

Dimensions

• Width: 9.35"

• Height: 13.8"
• Extension: 7.39"
• Weight: 9.5 lb.

Estimated Life

• Rated for 50,000 hours

Warranty

• 5-year limited warranty.
• Complete warranty terms located at: https://www.satco.com/support/warranty/5_Year_Limited_-_Fixtures.phtml

Document

• Spec Sheet
• Instruction Sheet
