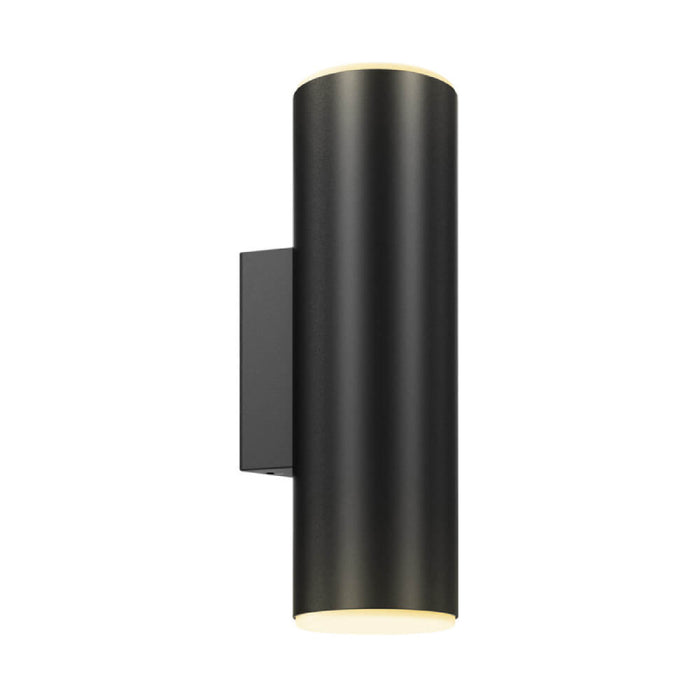

Dals LEDWALL-A Aden 12" Tall LED Round Cylinder with Multiple Lighting Options

The key design element of our new LED cylinder is the removable lens. This feature allows for three distinctive styles during installation.

Features

• Finish:Black
• Wattage: 29W
• Voltage: 120-277V
• Color Temperature: 3000K
• Lumens: 2100
• CRI: 90
• Standard Dimming: 0-10V, ELV
• Cylindrical housing made of extruded aluminum
• Fixture canopy made of die-cast aluminum
• LED module is mounted on an aluminum heat sink to maximize heat dissipation and extend product life

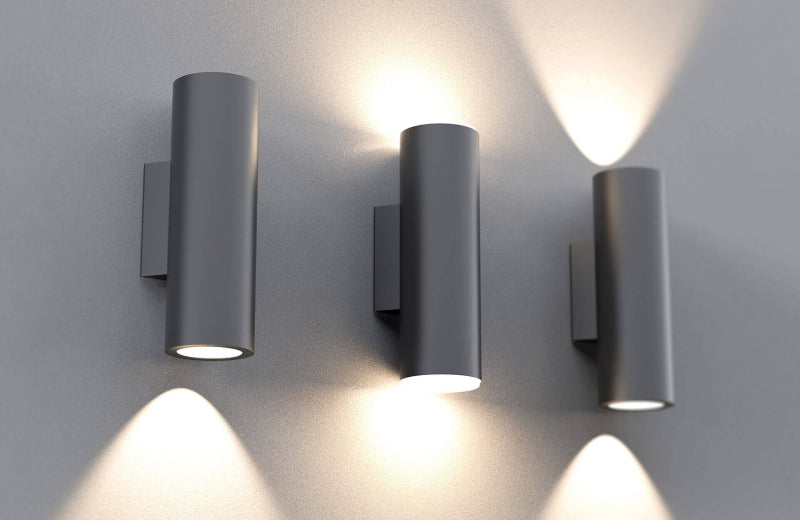

• Cylinder comes with 3 optical options
• Bright aluminum reflector that provides a 45° beam spread
• Frosted glass lens to allow a wider beam spread
• Die-cast aluminum cap to allow a down light only version
• The LED board is sealed with a clear tempered glass lens to assure weatherproof operation
• Note: Not compatible with shallow electrical box, deep octagonal box recommended for new installation

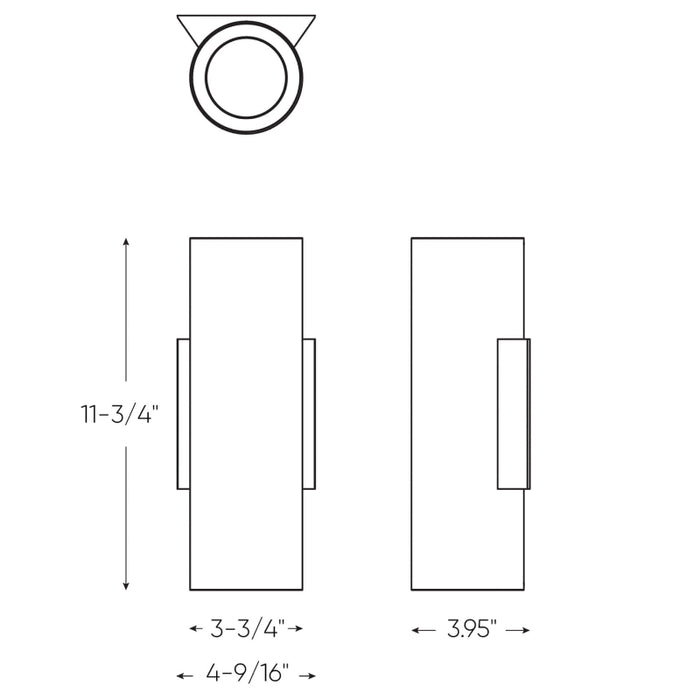

Dimensions

• Width: 4.56"
• Height: 11.75"

• Extension: 3.95"


Lamping

• 29W LED (Included)

Documents

• Spec Sheet
• Instruction Sheet
