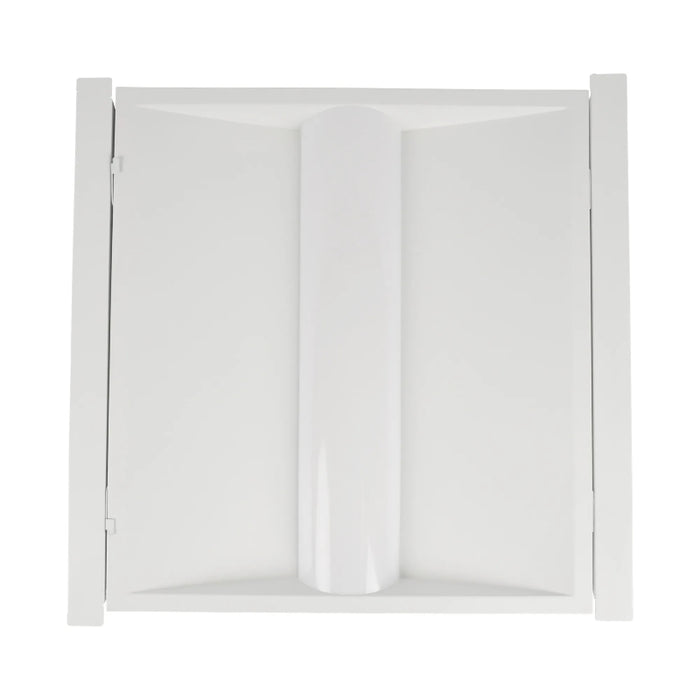

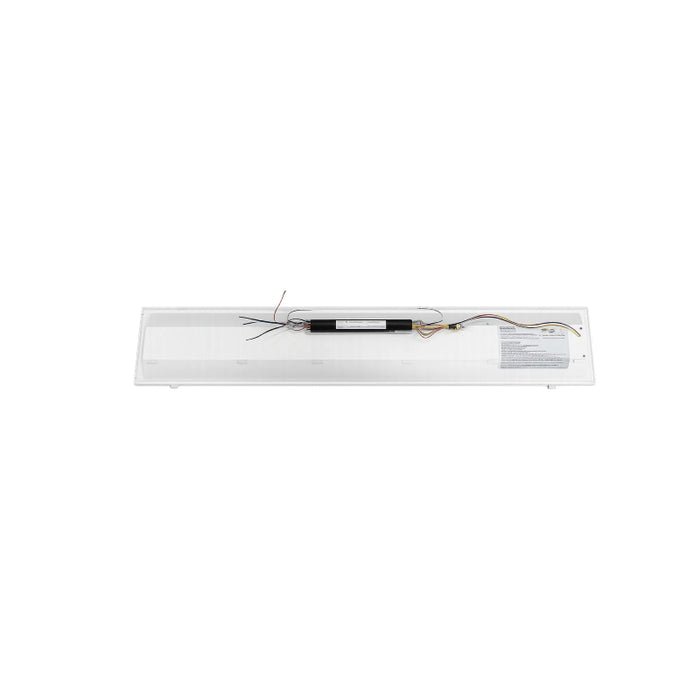

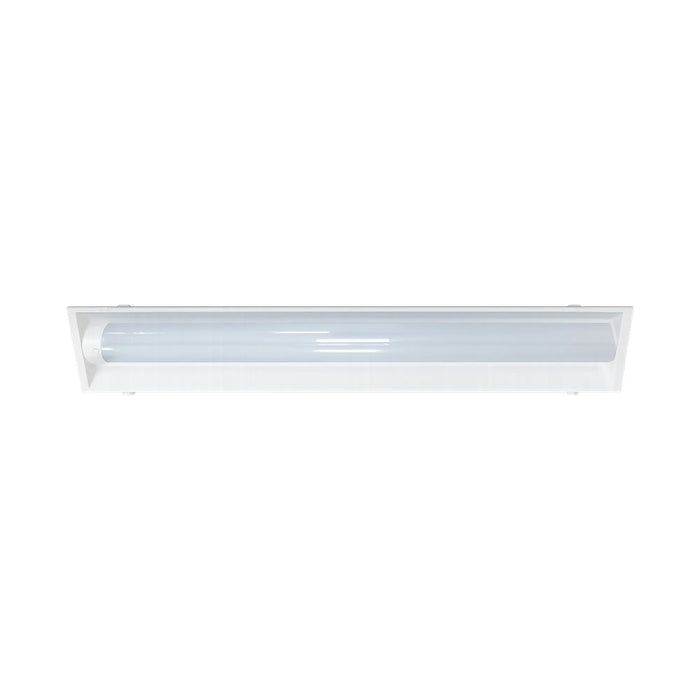

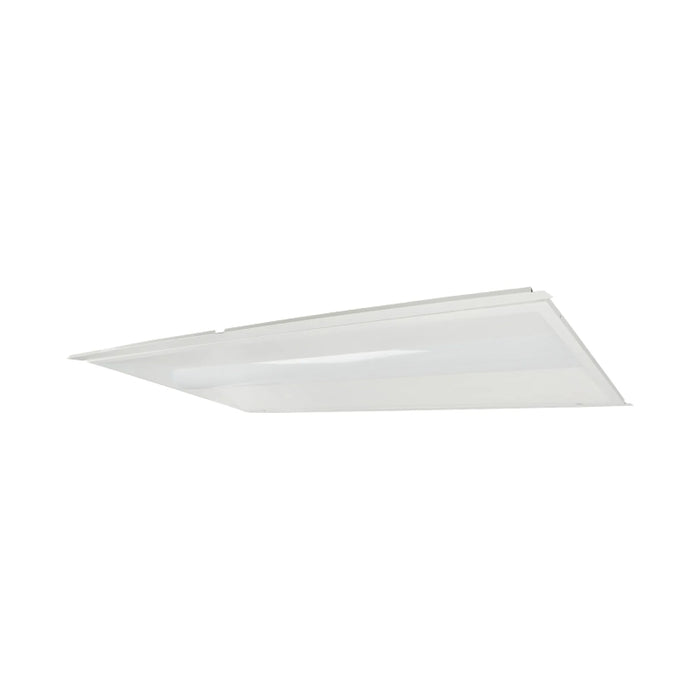

Westgate LRT-HL Series LED DLC Premium High-Lumen LED Retrofit Troffer, Power & 3CCT Selectable, 120-277V, 0-10V Dimming

Elevate your lighting experience with the Westgate LED Retrofit Troffer – a perfect blend of innovation, efficienc , and reliability. Designed to seamlessly fit into existing troffer installations, this retrofit solution transforms traditional lighting systems into energy-efficient, cost-e fective lighting with minimal effort.

Features

• Finish: White
• Size: 1x4, 2x2, 2x4

• Wattage:
  • 1x4: 20W / 25W / 30W
  • 2x2: 20W / 25W / 30W
  • 2x4: 20W / 30W / 40W
• Voltage: 120-277V
• Color Temperature: 3500K / 4000K / 5000K Selectable
• Lumens:
• • 1x4: 2800 / 3500 / 4200
  • 2x2: 2800 / 3500 / 4200
  • 2x4: 2800 / 4200 / 5600
• CRI: ≥80
• Dimmable: 0~10V Dimming
• Galvanized Steel Construction

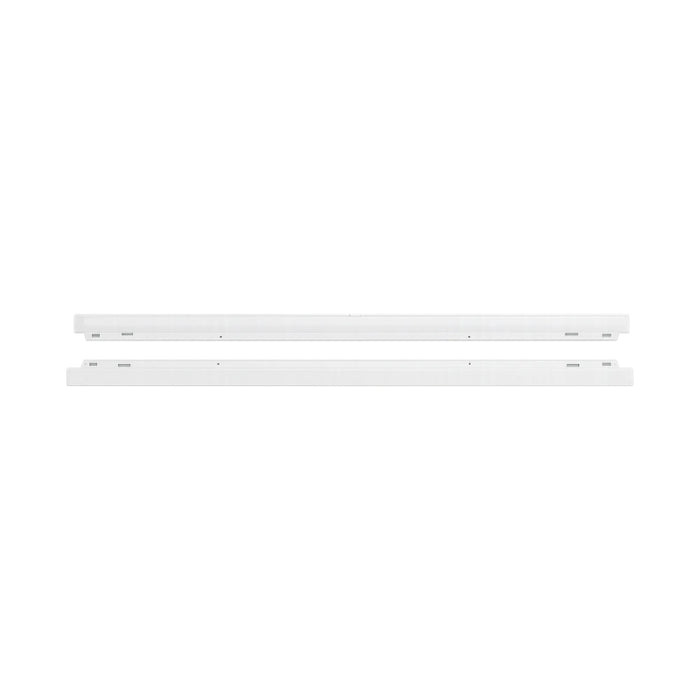

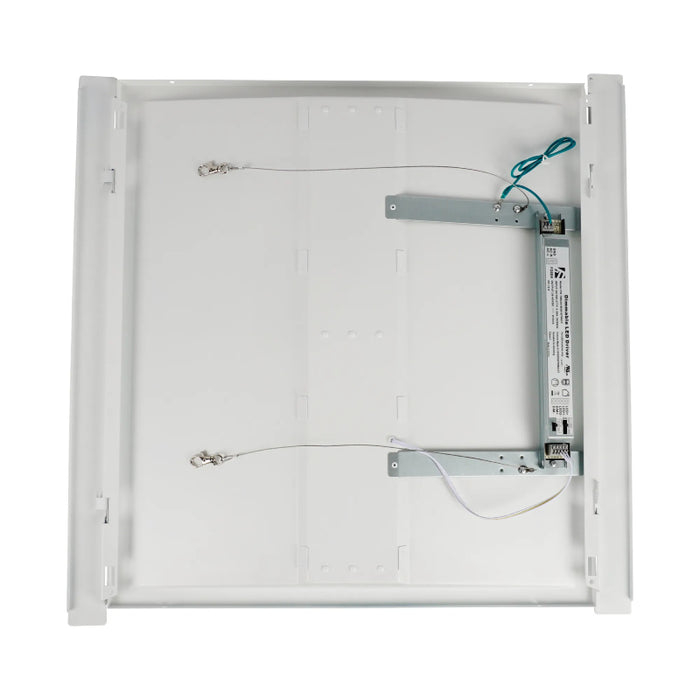

• Integrated Securement Tabs for Securement to Existing Troffer Housing
• Minimum Depth of only 3” Necessary To Allow Proper Clearance And Installation
• Retrofit Kit Is Powder Coated After Fabrication With High Quality, Durable Finish To Ensure No Unfinished Edge And Avoid Future Potential Of Corrosion
• Components Fit Together Easily Without The Need For tools during installation. in addition the light module Can Be Removed From Below The Ceiling For Continent Maintenance And Upgrades

Dimension

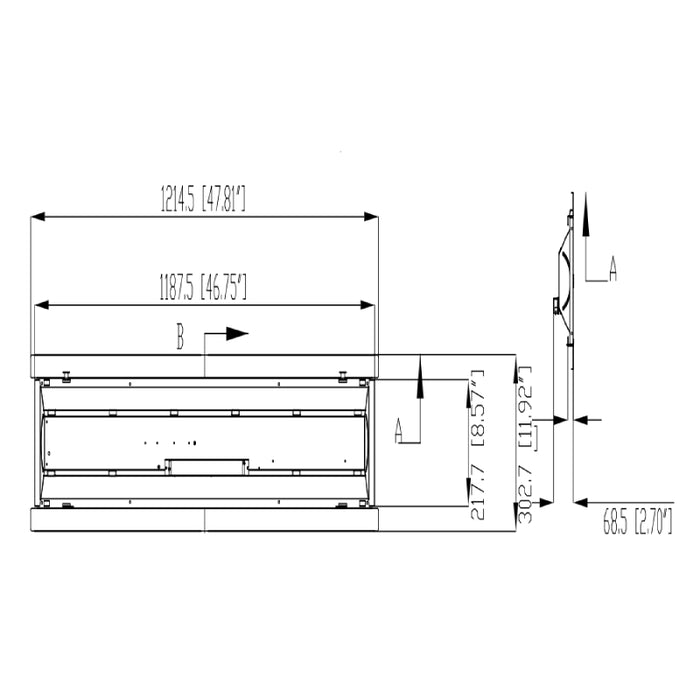

• 1x4: 47.81"(L) x 11.92" (W) x 2.7"(H)

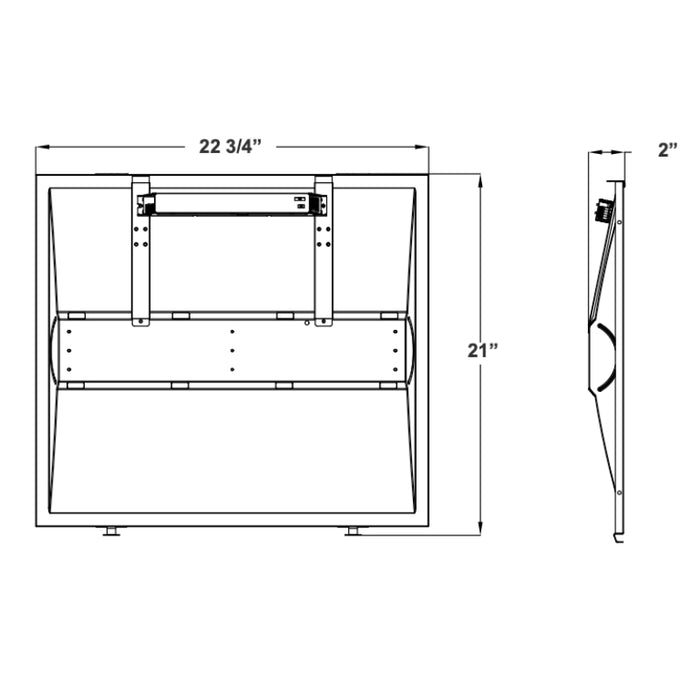

• 2x2: 22.75"(L) x 21" (W) x 2"(H)

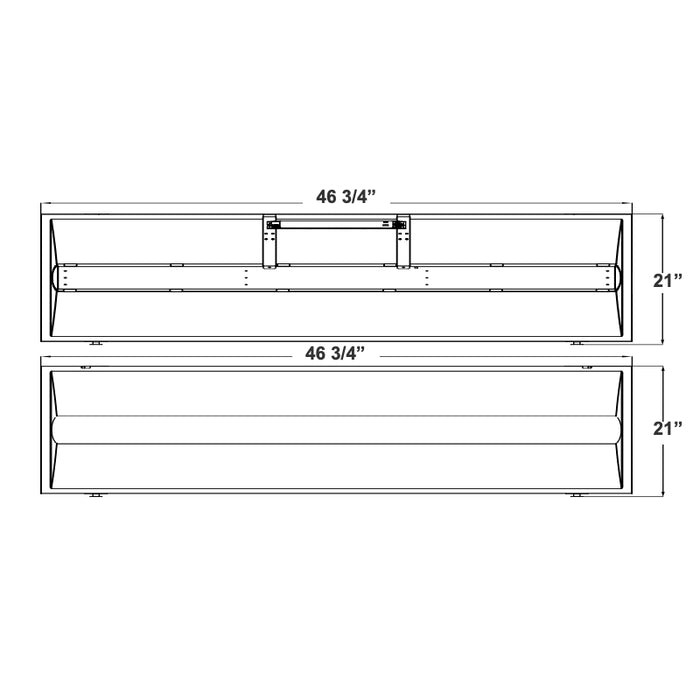

• 2x4: 46.75"(L) x 21" (W) x 2"(H)

Estimated Life

• Rated life: 50,000 hrs

Warranty

• 5-Year Warranty

Document

• Spec Sheet - 1x4
• Spec Sheet - 2x2

• Spec Sheet - 2x4
