Oracle 2x2 Back-Lit LED Flat Panel with Selectable Lumens and CCT, Dim10 MVLOT

OracleSKU: 22-FPL-BL-LED-2000/3000/4000L-DIM10-MVOLT-35K/40K/50K-85

Fixture: Fixture
In stock (280 units), ready to be shipped


The clean design of the FLP1-BL provides a modern alternative to traditional fluorescent troffers.  Backlit design delivers unmatchable uniform light distribution. Easily adjust brightness level (multi-lumen) and color options  (multi CCT) in the field with multi-lumen and multi-CCT selections.  Perfect for offices, schools, healthcare, hospital, retail among other applications


  • Size: 2 x 2
  • Voltage: 120-277 V
  • Dimming: 0-10V dimming to 10%

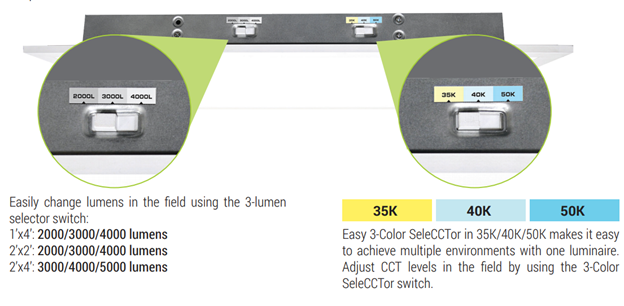

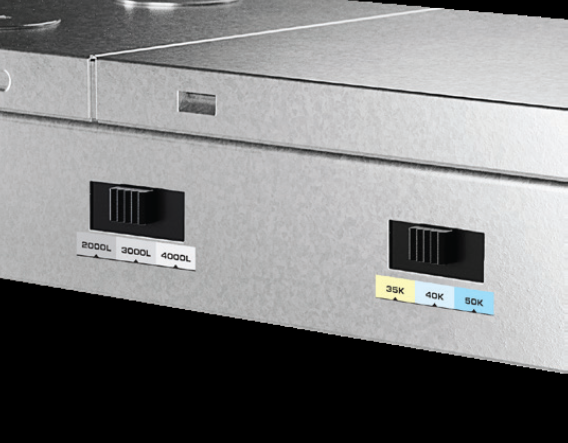

  • Simple switch to adjust lumens, watts and CCT on site as desired
  • Wattage: 19W / 28W / 37W
  • Color Temperature: 3500K / 4000K / 5000K Selectable
  • Delivered Lumens: - 2591lm / 3538lm / 4535lm
  • CRI: 85+
  • Lifetime: L70 at 60,000 hours

Emergency Back Up (Optional)

  • 10W - Up to 1000L output
  • Requires 7 to 10 working days for factory install


  • 23-7/8"L X 23-7/8"W  X 1-3/4" H
