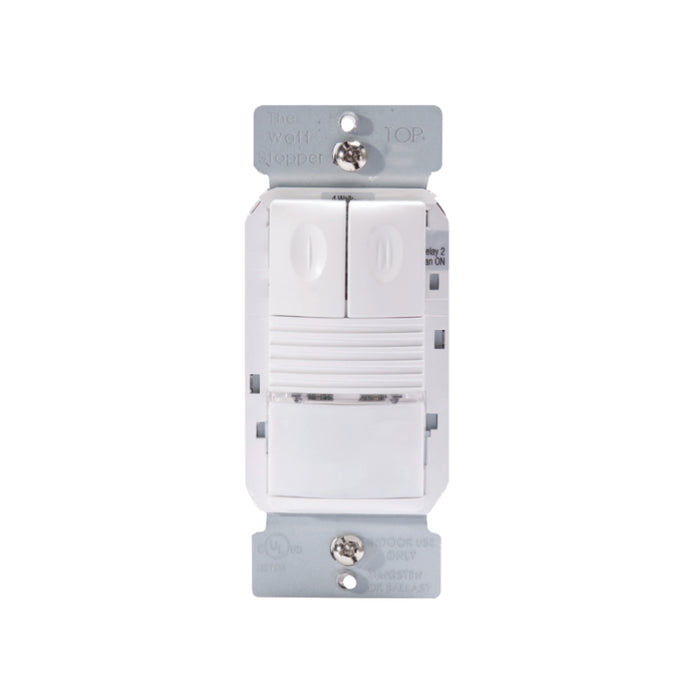

Wattstopper PW-302-U Passive Infrared Dual Relay Wall Switch Occupancy Sensor, BAA

The PW-302 passive infrared (PIR) wall switch sensor turns lights ON and OFF based on occupancy. It contains two relays for controlling two independent lighting loads or circuits, and a variety of features.

Features

• Wallplate sold separately
• Color: White
• Voltage: 120/240/277VAC; 50/60Hz
• Load:
  • 120VAC – Relay 1: 0-1000W ballast, LED, and tungsten, 1/4 hp, Relay 2: 0-800W ballast, LED, and tungsten 1/6hp
  • 240/277VAC, 0-1200W ballast and LED, Relay 1: 1/4 hp, Relay 2: 1/6hp
• Time delays: 5, 10, 15, 20, 25 or 30 minutes, walk-through, test-mode
• Coverage: Major motion 35’ x 30’, Minor motion 20’ x 15’
• Sensitivity adjustment: PIR (high/low)
• High sensitivity and dense coverage for exceptional performance
• Two relays for control of two separate lighting loads or circuits
• Defaults to Auto-ON to 50% operation for maximum energy savings
• Allows multi-way control from one of up to four control locations

Dimensions

• Length: 2.73"
• Width: 1.75"
• Depth: 1.81"

Documents

• Spec Sheet
• Instruction Sheet

Labels and Listings

• UL and cUL listed
• BAA/BABA
