by Wattstopper

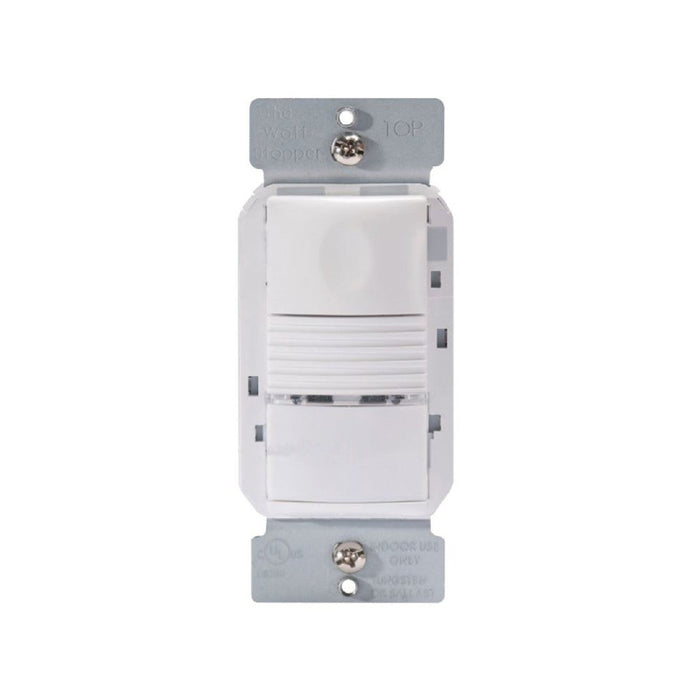

Wattstopper PW-301-347 Passive Infrared Wall Switch Sensor, 347V
SKU PW-301-347-W
Original price
$0.00
-
Original price
$0.00
Original price
$101.26
$101.26
-
$101.26
Current price
$101.26
Availability:
In stock
Estimated Shipping Widget will be displayed here!
OVERVIEW
The PW-301 passive infrared (PIR) wall switch sensor can turn lights OFF and ON based on occupancy. It is characterized by high sensitivity to small and large movements, appealing aesthetics, and a variety of features.
Features
- Wallplate sold separately
- Color: White
- Voltage: 347VAC; 50/60Hz
- Load: 0-1500W ballast & LED, 1/4 hp
- Coverage: Major motion 35’ x 30’ , Minor motion 20’ x 15’
- Sensitivity adjustment: PIR (high/low)
- Time delays: 5, 10, 15, 20, 25 or 30 minutes, walk-through, test-mode
- High sensitivity and dense coverage for exceptional performance
- Defaults to Manual-ON operation for maximum energy savings
- Color-matched lens and low profile for appealing design
- Allows multi-way control from one of up to four control locations
Dimensions
- Length: 2.73"
- Width: 1.75"
- Depth: 1.81"
Documents
Labels and Listings
- UL and cUL listed
