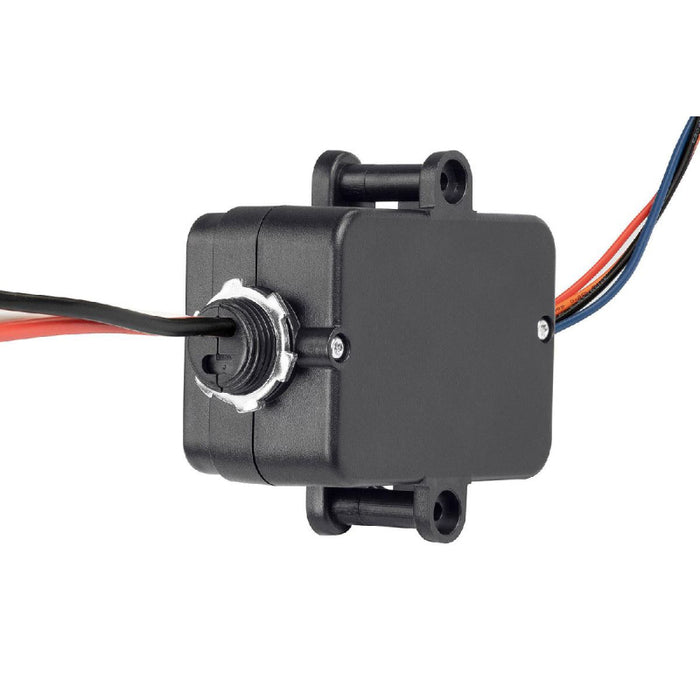

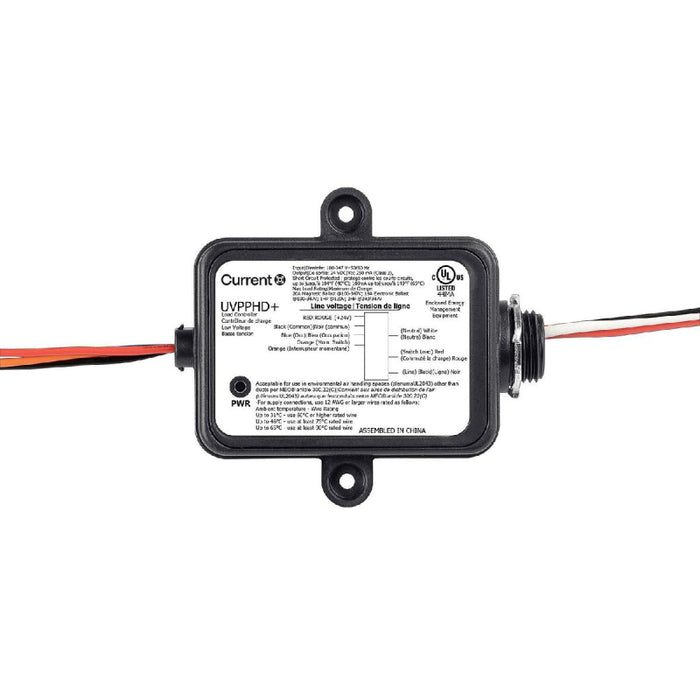

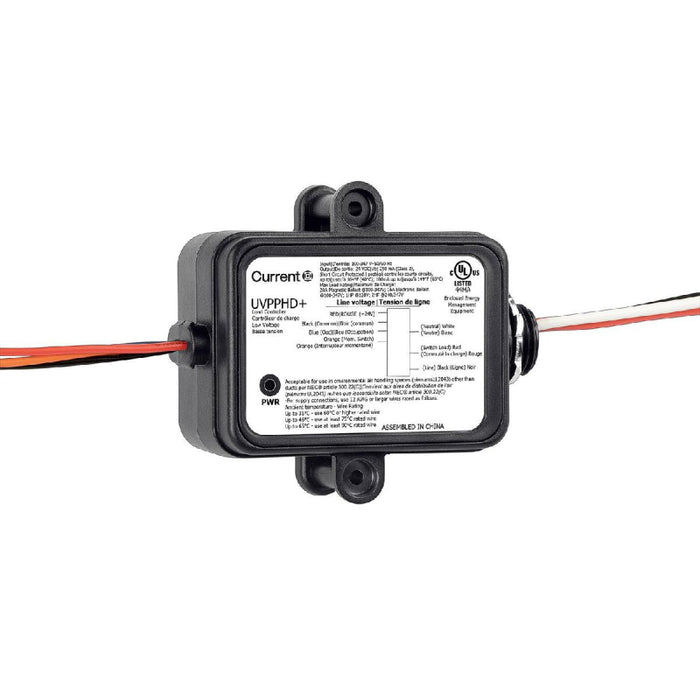

NX Lighting Controls UVPPHD+ Heavy Duty Universal Voltage Power Pack, 120/277/347V
SKU UVPPHD+
Original price
$0.00
-
Original price
$0.00
Original price
$79.05
$79.05
-
$79.05
Current price
$79.05
Availability:
In stock
Estimated Shipping Widget will be displayed here!
OVERVIEW
The Heavy Duty Universal Power Pack+ (UVPPHD+) is a simple to deploy control device that pairs with low voltage 24VDC sensors and switches to provide on/off control of connected loads.
Features
- Color: Black
- Voltage: 120/277/347VAC
- Automatic voltage detection
- Electrical loads switching capability: maximum of 20 Amps
- Regulated 24VDC current; 250mA output
- Zero arc point switching
- Plenum Rated
- Auto or Manual ON operation
- Powers up to six low voltage sensors
- Mounts directly to an external junction box through a 1/2” threaded chase nipple
- Mounts inside junction box using #6-32 pan head screws

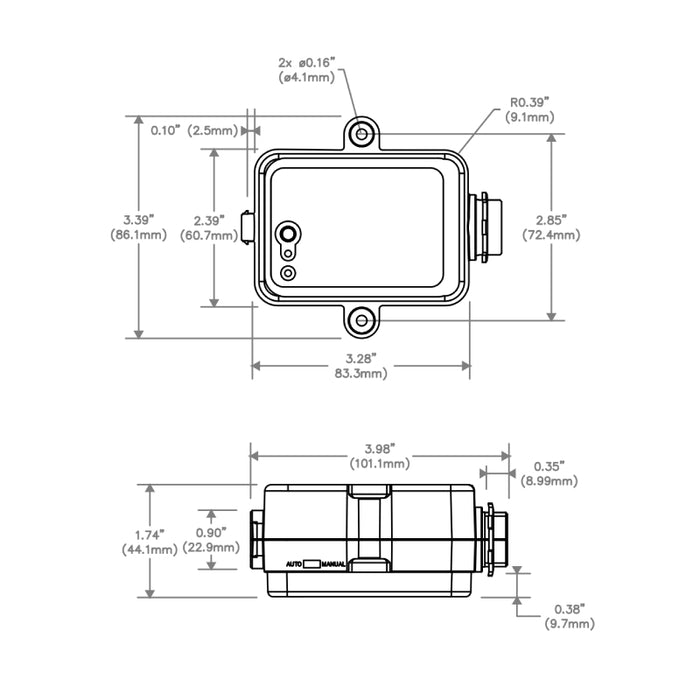

Dimensions
- Width: 3.28"
- Height: 3.39"
- Depth: 1.74"
Warranty
- 5 Years Limited Warranty
