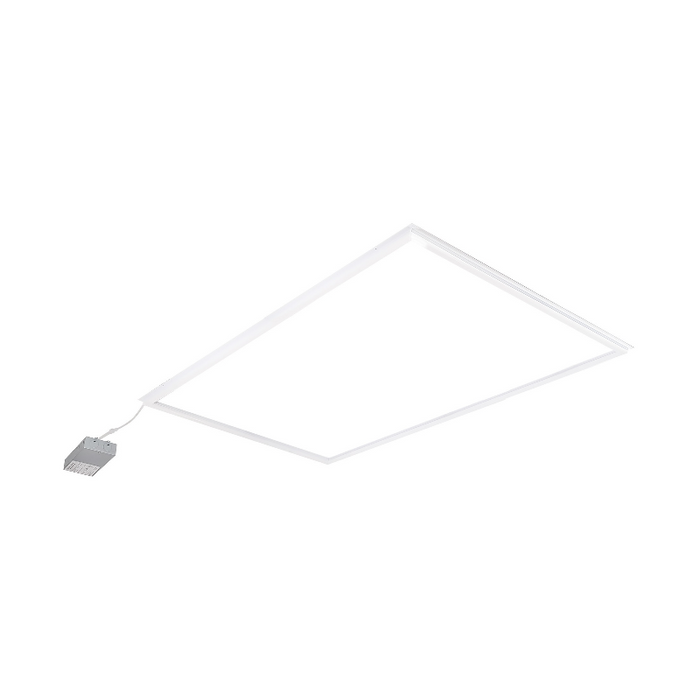

Nora NPTPSW-E24 2x4 LED Frame Light, Lumens & 3CCT Selectable

LED Frame lights are a perimeter fixture for a standard 2′ x 4′ ceiling grid. Remote driver includes two Selectable Switches to change the color temperature and brightness. No cutting is required and ceiling tile sits inside the frame light.

Features

• Finish: White

• Lens: Polycarbonate
• Wattage/Lumens: 45W/5884lm, 50W/6467lm, 55W/6968lm

• Voltage: 120-277V

• Color Temperature: 3500K / 4000K / 5000K Selectable

• CRI: 80+
• 0-10V Dimming

• One-piece construction, no assembly required
• The luminaire fits into standard 15/16" and narrow 9/16" T-grid ceiling systems
• Prewired junction box includes quick connect to LED fixture for ease of installation

• Junction box includes four 1/2" knockouts and snap on cover
• Easy installation without cutting tiles
• IC rated

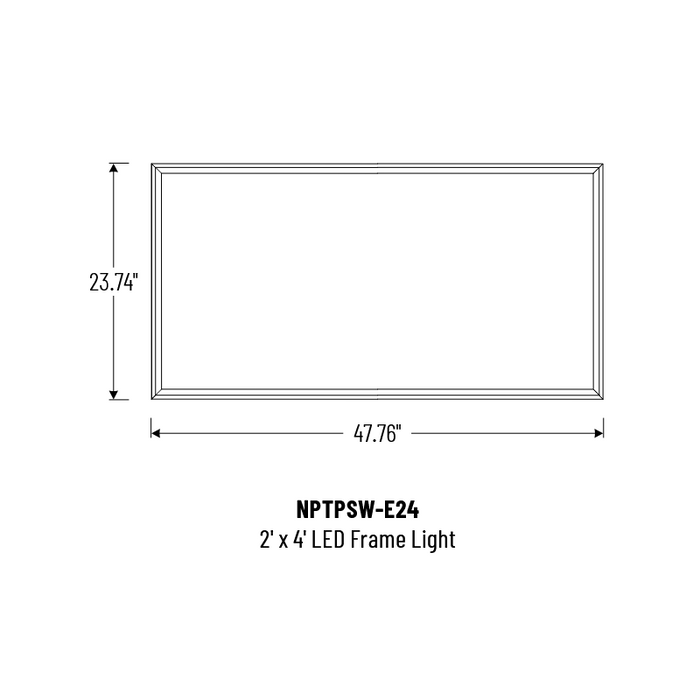

Dimensions

• Length: 47.76"
• Width: 23.74"
• Height: 0.63"


Estimated Life

• 50,000 hours @ L70

Warranty

• 5-Year Limited Warranty

Documents

• Spec Sheet

• Instruction Sheet
