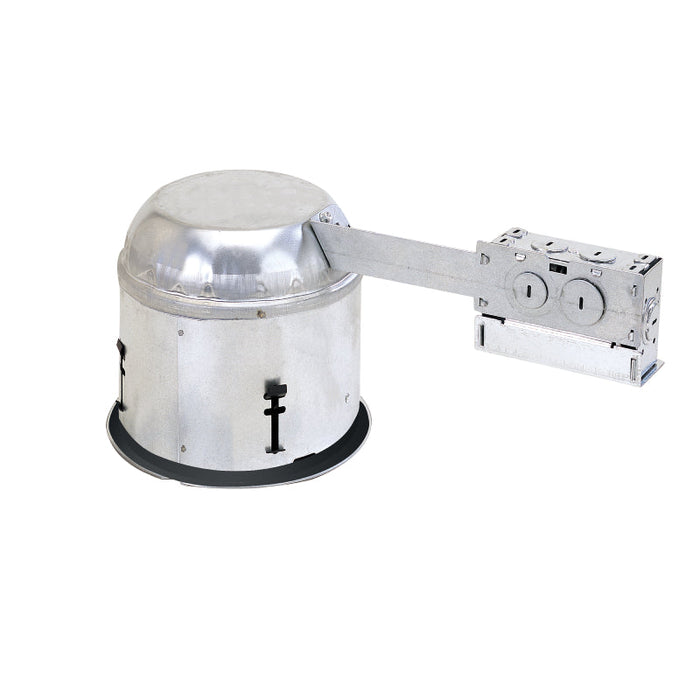

Nora NHRIC-527LMRAT 5" Shallow LED Dedicated IC Air-Tight Remodel Housing
Estimated Shipping Widget will be displayed here! (with custom color)
OVERVIEW
Shallow remodel housing for use in shallow plenum, insulated ceilings can be in direct contact with insulation. Air-tight construction provides energy savings by reducing the flow of air through the ceiling. The housing is dedicated and labeled for use with LED retrofit luminaires.
Features:
- Trim and light bulb sold separately
- Voltage: 120/277V Input (120V Triac/ELV dimming)
- Low 5-7/8" profile for existing shallow ceiling plenums
- Installation-ready for existing sheet rock ceilings
- Clearance: Insulated ceiling housings are direct contact rated. Not to be used in direct contact with spray foam insulation
- Mounting: Four high tension springs secure the housing to an existing sheet rock ceiling. Accommodates ceiling thickness to 1-3/8"
- Junction Box: Prewired 15 cubic inch 0.064" thick galvanized steel with six 1/2" trade size knockouts, one 3/4" trade size knockout, four Romex pryouts, and snap on covers.
Dimensions
- Length: 13-1/2"
- Height: 5-1/2"
- Height: 7-3/4"
Lamping:
-
Specified by reflector
