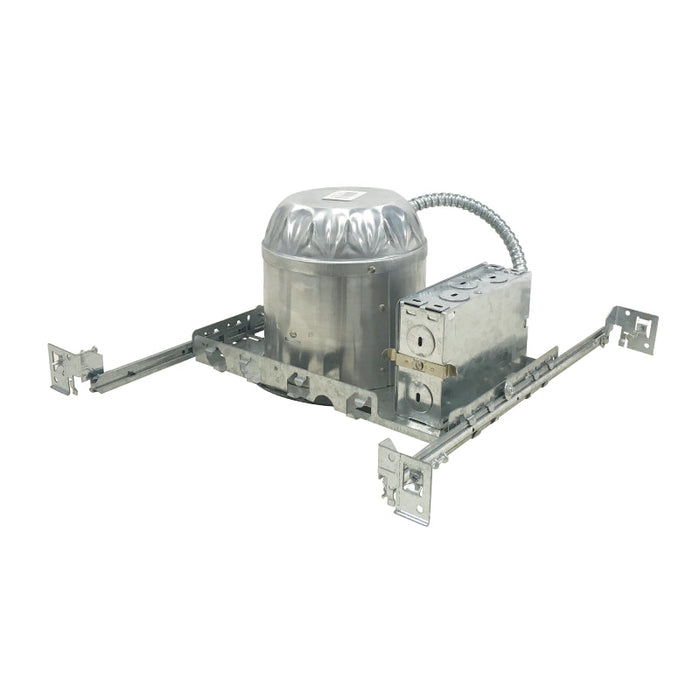

Nora NHIC-527LMRAT 5" Shallow LED Dedicated IC Air-Tight New Construction Housing
Estimated Shipping Widget will be displayed here! (with custom color)
OVERVIEW
Dedicated new construction housing for use in insulated ceilings can be in direct contact with insulation. Air-tight construction provides energy savings by reducing the flow of air through the ceiling. The housing is dedicated and labeled for use with LED retrofit luminaires.
Features:
- Trim and light bulb sold separately
- Voltage: 120/277V (120V Triac/ELV dimming)
- Shallow IC rated housing for direct contact with insulation
- Quick connect provided for electrical connection to trim
- Junction Box: Prewired 25 cubic inch 0.064" thick galvanized steel with seven 1/2" trade size knockouts, four Romex pryouts, and snap on covers
- Bar Hangers: Two 13-3/4" to 24-1/2" adjustable bar hangers with captive nails are included on frame.

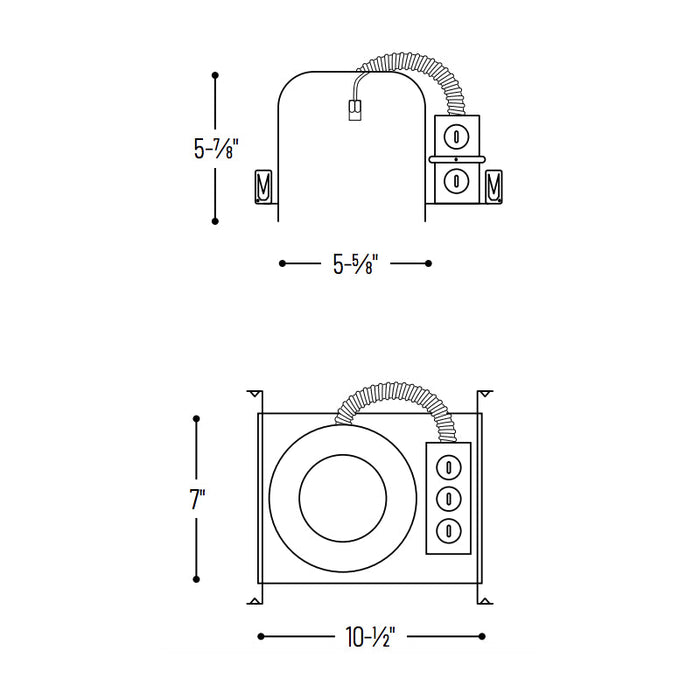

Dimensions
- Length: 10-1/2"
- Height: 7"
- Height: 5-7/8"
Lamping:
-
Specified by reflector
Documents:
Labels:
