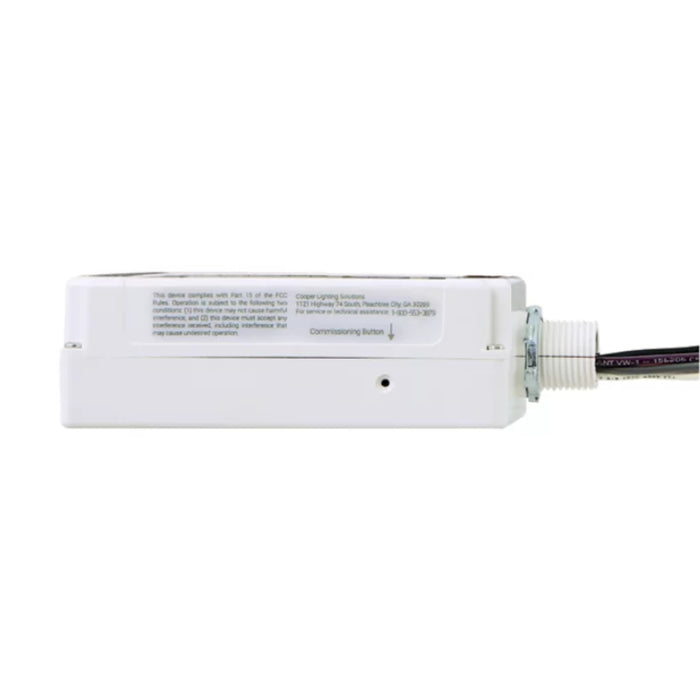

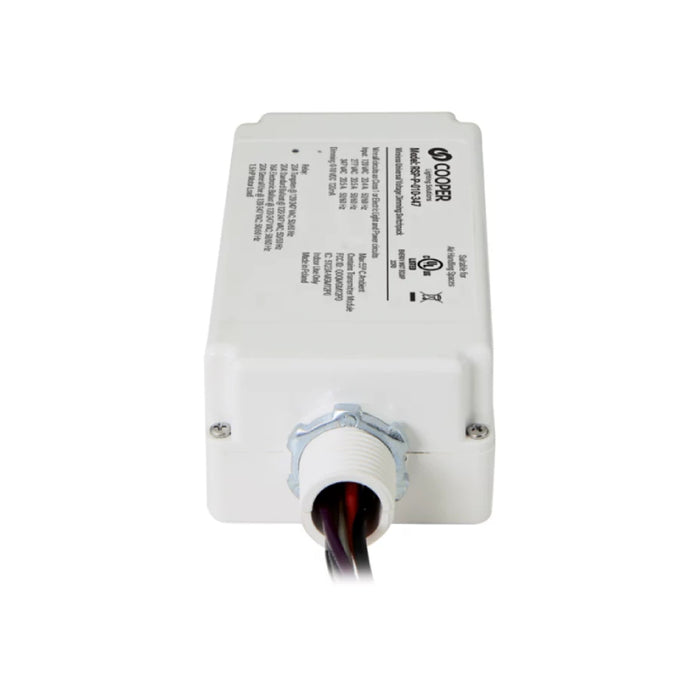

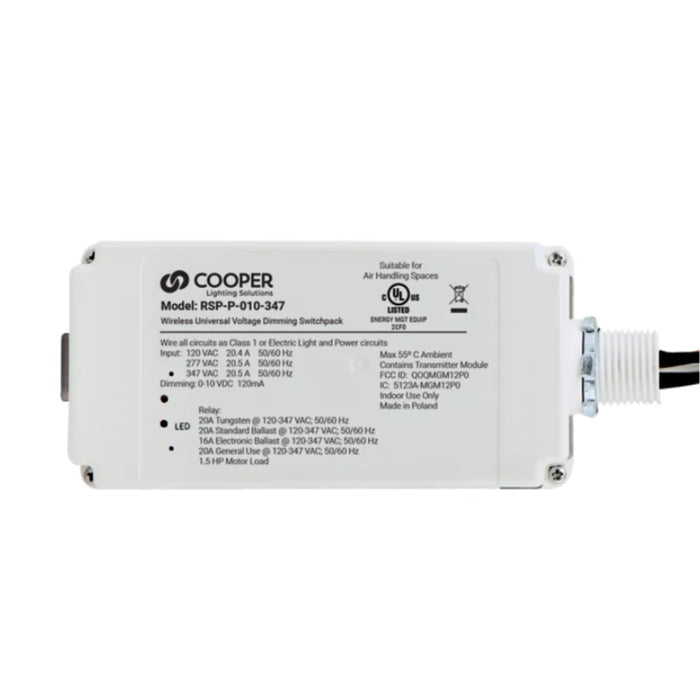

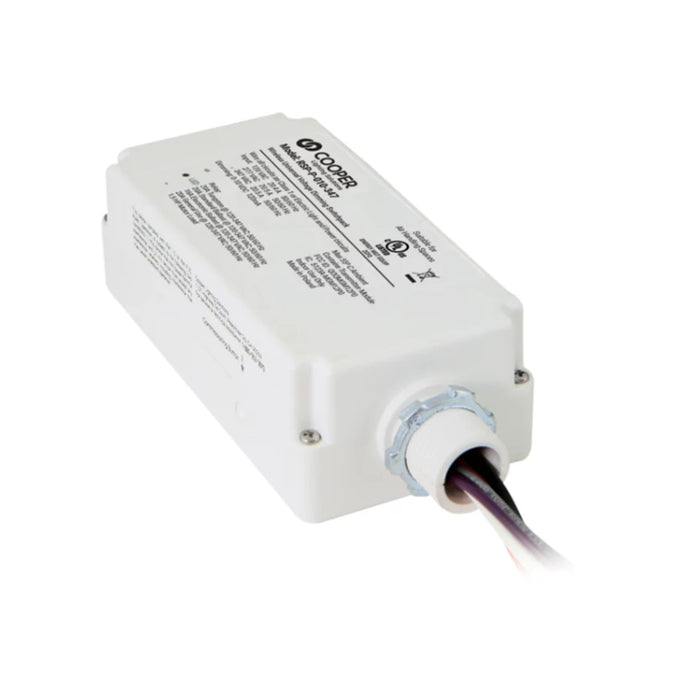

Wavelinx RSP-P-010-347 Wireless Universal Voltage Dimming Switchpack
SKU RSP-P-010-347
Original price
$0.00
-
Original price
$0.00
Original price
$205.95
$205.95
-
$205.95
Current price
$205.95
Availability:
in stock, ready to be shipped
Estimated Shipping Widget will be displayed here!
OVERVIEW
The WaveLinx PRO Universal Voltage Dimming Switchpack (RSP-P-010-347) is a lighting control device designed to control (on/off/dim) commercial and industrial lights as well as receptacles. The RSP-P consists of a 120-347VAC 20A relay and a continuous 0-10V dimming control.
Features
- Color: Matte White
- Power: 120-347VAC
- Mounting: Mounts to the side of a 4” (102mm) square box via ½” (13mm) knockout
- Housing: Medium impact injection molded housing. ABS resin with 5VA flame rating. Plenum rated for external junction box mounting with Teflon coated leads
- Control (on/off/dim) commercial and industrial fixtures using 20A Relay and a 0-10V dimming output
- Plenum-rated design with easy junction box mounting
- Fails safe to 100% if communications are lost
- Easy programming using WaveLinx Mobile App and Core Lighting App
- Suitable for plug load control

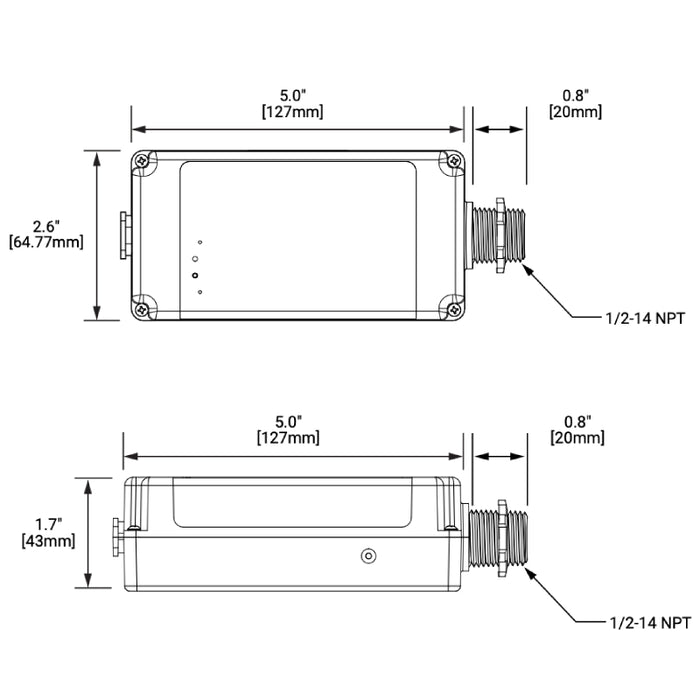

Dimensions
- Length: 6.1"
- Width: 2.6"
- Height: 1.7"
Warranty
- 5-Year Limited Warranty
Documents
Labels and Listings
- cULus Listed - Energy Management Equipment (UL916)
- FCC part 15 Sub Part B
- Manufactured in an ISO 9001 certified factory
- Meets latest ASHRAE Standard 90.1 requirements
- Meets latest IECC requirements
- Meets latest CEC Title 24 requirements
