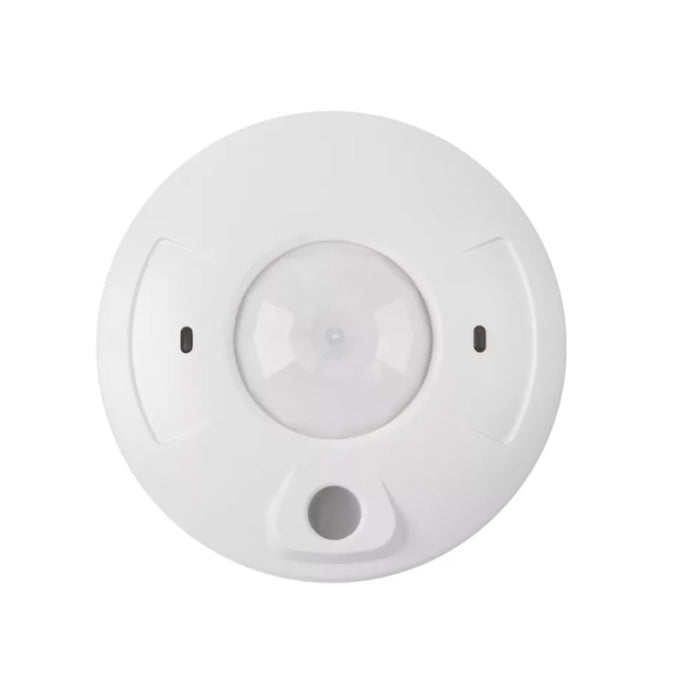

WaveLinx OCS-L-D-12 LITE PIR and Acoustic Dual Technology Ceiling Sensor, 1200 sqft Coverage, 24VDCV

The LITE Dual Technology Ceiling Sensor with passive infrared (PIR), acoustics, and photocell that automatically control lights via bluetooth communication to compatible dimming and switching devices.

Features

• Color: White
• Voltage: 24VDC
• Coverage: 1200 sq. ft.
• Occupancy Detection Technology: Passive Infrared (PIR) and acoustics

• Mounting Height: 8-12 ft (2.4384 to 3.6576m)

• Lens Type: Multi-level Fresnel 360°

• Daylight Sensing Range: 0 to 1000 lux
• Daylight Sensing Coverage: Light input within 60° cone
• Wiring: Power Wires 18AWG, signal 22AWG
• Daylight sensing and occupancy detection technologies combined into a single device
• All device settings (timers, sensitivity and groups) programmable through mobile app, no physical adjustments needed
• Built-in Photocell – Reduce energy usage based on the daylight coming into the space
• LED Status Indicator – Easily troubleshoot the sensor when required
• Easy to configure / commission – Remotely configurable through WaveLinx LITE mobile app

Dimension

• Height: 3.6"
• Width: 3.6"
• Depth: 1.4"

Warranty

• 5-year warranty

Documents

• Spec Sheet
• Instruction Sheet

Labels and Listings

• Class 2 Input
• cULus Listed
• UL Listed
• FCC Part 15, Part B and Part C
• Manufactured in an ISO 9001 certified factory
• Meets ASHRAE Standard 90.1 requirements
• Meets IECC 2021 requirements
• Meets CEC Title 24 requirements
