Sure-Lites ECHX Chicago Edge-Lit LED Exit Sign Trim, Surface Mount, Stair Sign

The Sure-Lites Chicago Edge-Lit (ECHX) surface and recessed mount exit sign provides an attractive yet easy to install universal edge-lit exit sign that is Chicago Code Compliant. The crystal clear wedge shape lens panel with white background standard provides excellent light distribution, exit visibility and easy installation. Long life, energy efficient LED lamps reduce energy costs and eliminate routine lamp maintenance.

Features

• Exit Housing Sold Separately

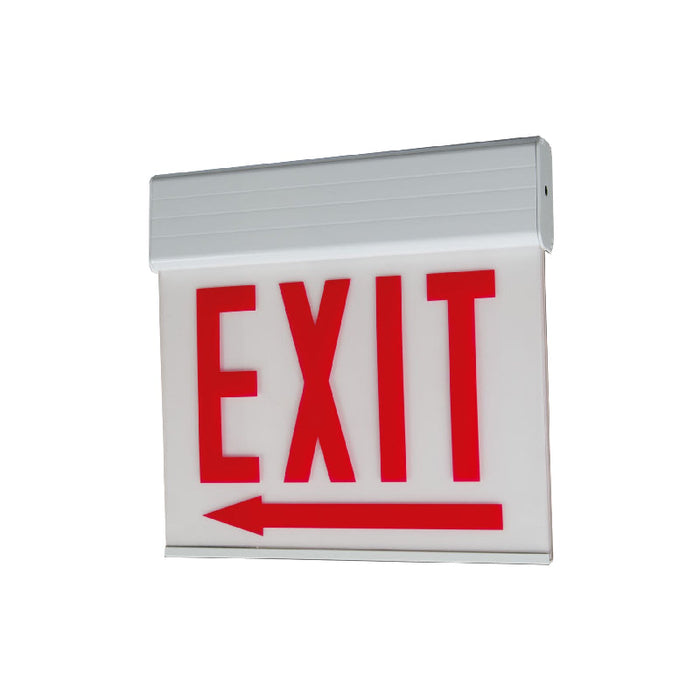

• Image shows With Arrow option
• Face: Single
• Mounting: Surface
• Arrow Options: No Arrow

• Stair Sign (include dash)
• Chicago Code & Plenum Approved
• Injection molded, UV stabilized high impact, silk screened acrylic panels
• Bright red exit letter colors
• Panels customized with full stroke arrows for selected directional indicators
• White insert background included with single or double face exit panels
• Edge reflector for optimized efficiency and visibility
• Anodized extruded aluminum housing
• Components are of snap-fit construction to facilitate easy installation
• All components including battery and electronics are located inside the exit housing
• Surface mount exit can be universally mounted, ceiling, wall, or end, with Tri-Mount™ System

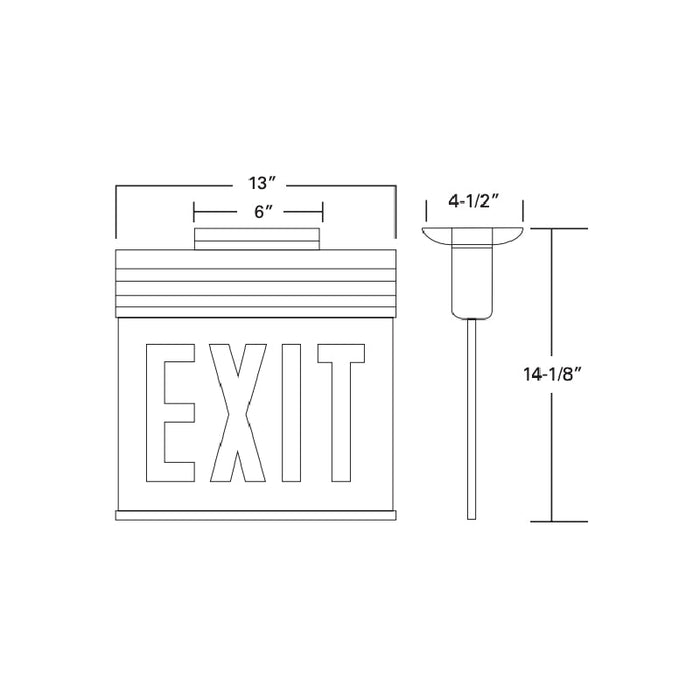

Dimensions

• Width: 13"
• Height: 14.13"

Warranty

• 5-Year fixture Warranty
• Prorated 7-year battery warranty

Documents

• Spec Sheet

Labels and Listings

• UL 924 Listed
• Life Safety NFPA 101
• NEC/OSHA
• Most State and Local Codes
• City of Chicago fire code
• Chicago Plenum Approved
