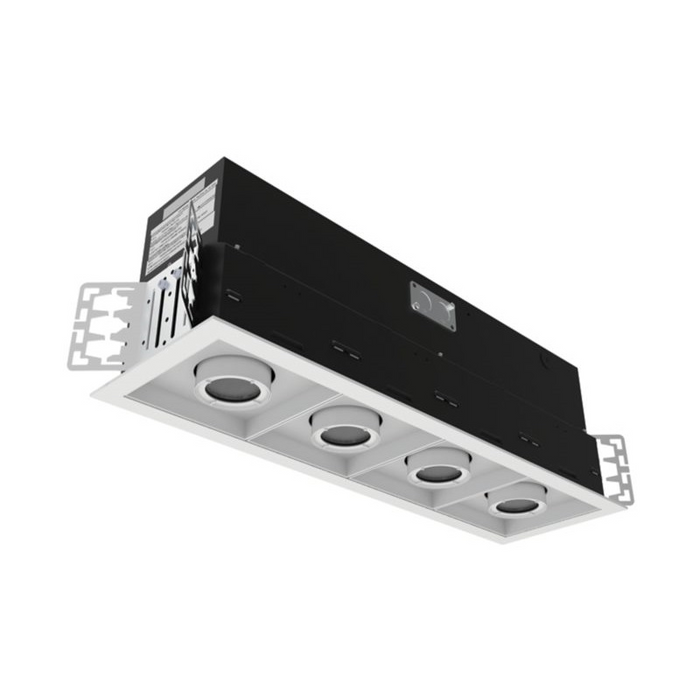

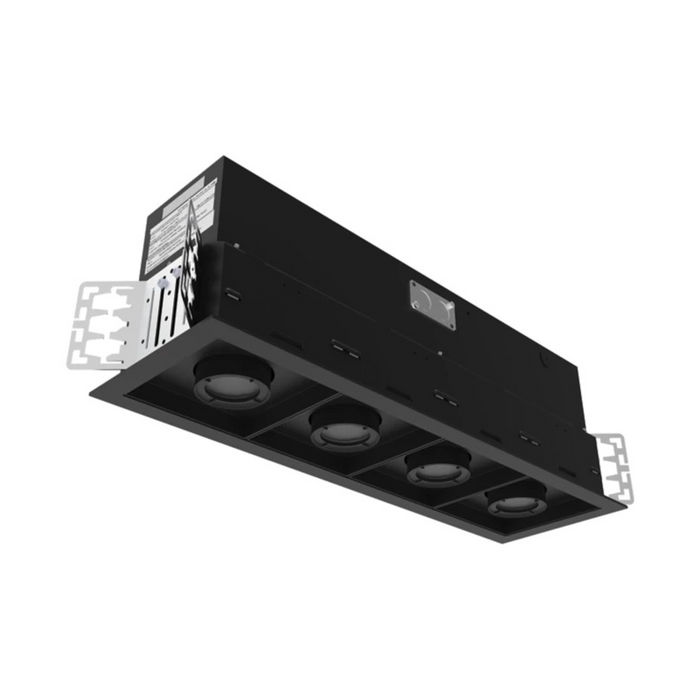

Halo Commercial HCM4 4-Head Adjustable Multiple New Construction Housing

Features

• Housing/Flange Trim Finish: Matte White/Matte White, Matte Black/Matte Black
• Wattage: 56W
• Voltage: 120-277V
• Color Temperature: 3000K, 3500K, 4000K
• Lumens: up to 1200/head
• CRI: 90
• 1%-100% dimming with 0-10V dimming
• 25° Narrow Flood optic included in each multi-head

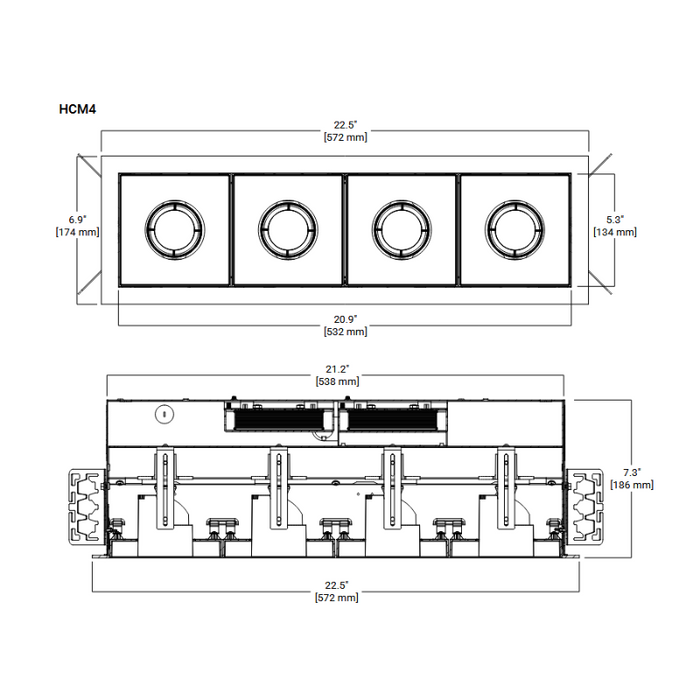

Dimensions

• Width: 22.5"
• Height: 6.9"
• Depth: 7.3"

Documents

• Spec Sheet
• Instruction Sheet

Accessories:

• Sensor Kit: WTA, WTK (Sold Separately)
• Optics: HCM (Sold Separately)
• Flange Kit: HCM4FL (Sold Separately)

Labels and Listings

• cULus Certified damp location in covered ceilings

• Type IC, suitable for direct contact to air permeable insulation

• Not for use in direct contact with spray foam insulation consult NEMA LSD57-2013

• Airtight per ASTM-E283-04

• Contains no mercury or lead and RoHS compliant

• May be used for State of California Title 24 high efficacy LED compliance, per JA8 High Efficacy Lighting certification standards, reference CEC appliance efficiency database
• ENERGY STAR® certified, reference certified light fixtures database

• May be used to comply with State of California Title 24 non-residential code, as a dimmable LED luminaire
