Lithonia 2BLT4R 2x4 29W LED Troffer Relight Kit, 4000 Lumens, Curved Linear Prisms Diffuser, Dims to 10%, 80+ CRI, 120-277V

The BLTR Relight Series provides quick, easy installation into most existing fluorescent troffers and parabolics. Get the look, feel and performance of a full fixture replacement at the fraction of the cost.

Features

• Wattage: 29W

• Voltage: 120-277V
• Color Temperature: 3500K, 4000K
• Lumens: 4000

• CRI: 82
• Driver: Dims to 10% (0-10V dimming)

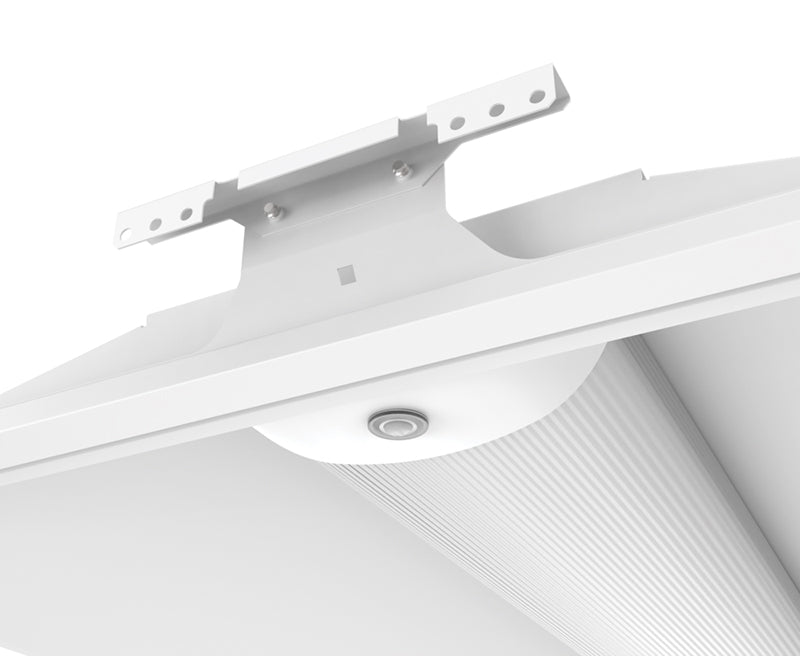

• Standard white two piece flanged bracket
• Diffuser: Curved, linear prisms
• The BLTR’s integrated driver and light engine door assembly can then be hinged to the universal end brackets and will hang in place for completion of assembly plug-in wiring

Dimensions

• Length: 47.8"
• Width: 23.9"

• Height: 2.75"
• Weight: 16.25 lbs

Estimated Life

• Greater than 80% LED lumen maintenance at 60,000 hours (L80+ > 60,000)

Warranty

• 5-year limited warranty

Documents

• Spec Sheet

• Instruction Sheet

Labels and Listings

• UL/cUL Listed for use in fluorescent luminaires
