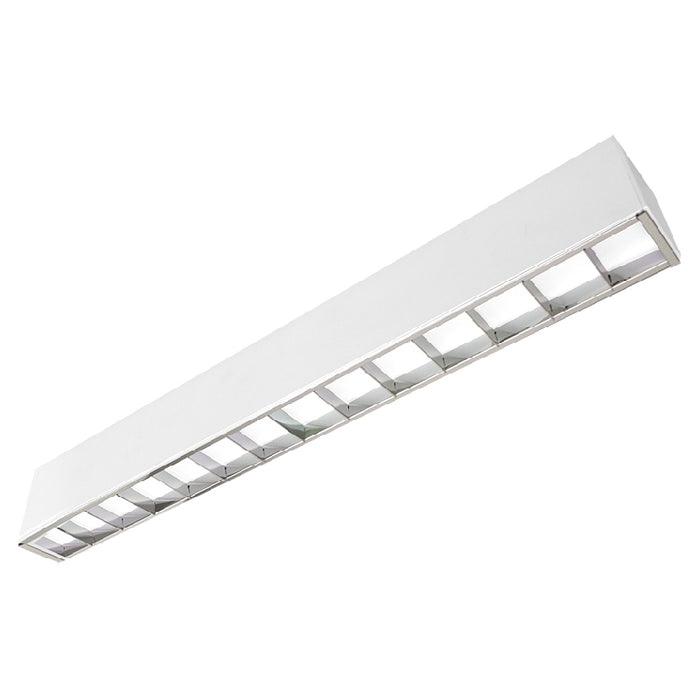

Westgate SCX 3FT 30W LED Linkable Linear Light, CCT, Louver Lens

Linear Lighting can customize your desired length, look, and color temperature to either be suspended, surface mounted, or recessed to suit your needs. Ideal for Storage rooms, Offices Conference rooms, Retail Reception areas, Hallways Education facilities, hotels, and restaurants.

Features

• Wattage: 30W
• Voltage: 120-277 VAC
• CCT Selectable: 3000K/3500K/4000K/5000K (Selectable switch inside fixture)
• Color Temperature/Lumens:
• 3000K/3329 lm
• 3500K/3362 lm
• 4000K/3523 lm
• 5000K/3551 lm
• CRI: ≥80
• Beam Angle: 104.8°(H) x 100.5°(V)
• Dimming: 0~10V Dimmable
• Lens Type: Polished Aluminum Louver Lens
• Low profile design
• Aluminum housing with matte white finish
• Custom Colors Available
• Lens Snaps into Housing

• Mounting Options: Surface, Suspended, Wall, Recessed
• Adjustable Suspension Brackets Provided on Top of The Fixtures

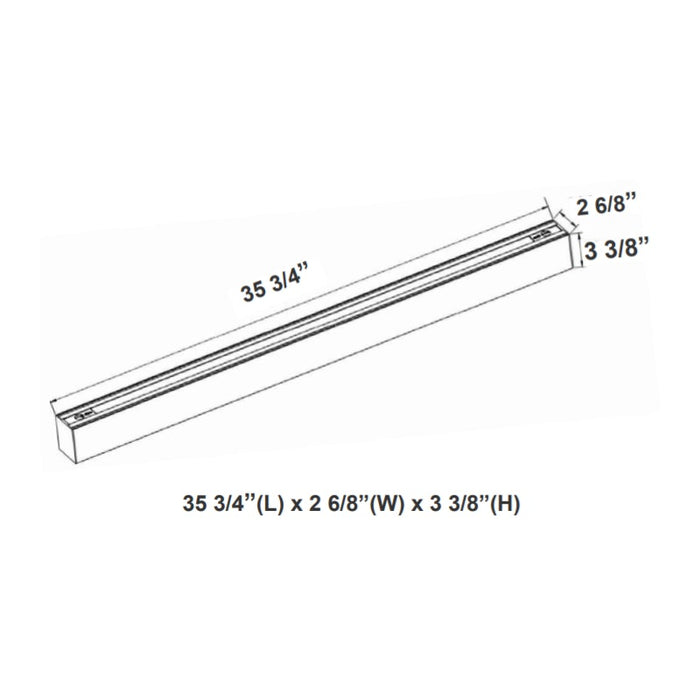

Dimensions:

• Length: 35-3/4"

• Width: 2-6/8"
• Height: 3-3/8"

Documents

• Spec Sheet

Labels
