NX Lighting Controls PSD0108-UNV Lighting Controls Preset Slide Dimmer
SKU PSD0108-UNV-WH
Original price
$0.00
-
Original price
$0.00
Original price
$158.98
$158.98
-
$158.98
Current price
$158.98
Availability:
in stock, ready to be shipped
Estimated Shipping Widget will be displayed here!
OVERVIEW
Preset Slide Dimmer with Full Range Dimming & On/Off Control.
Features
- Wallplate sold separately
- Color: White
- Voltage: 120/277VAC
- Load Rating: 10A @120VAC, 5A @277VAC
- Load Type: 0-10V (120/277V), 0–10V Fluorescent (120V), 0–10V Fluorescent (277V)
- Standard ON/OFF
- Connectivity: Wired
- Switch Type: SIngle-Pole & 3-Way
- 0-10V Control
- No power pack required for controlling 0–10V drivers or ballasts
- Compatible with 0–10V LED drivers and fluorescent and HID ballasts
- Single-gang NEMA-style switch box (standard wall switch box)

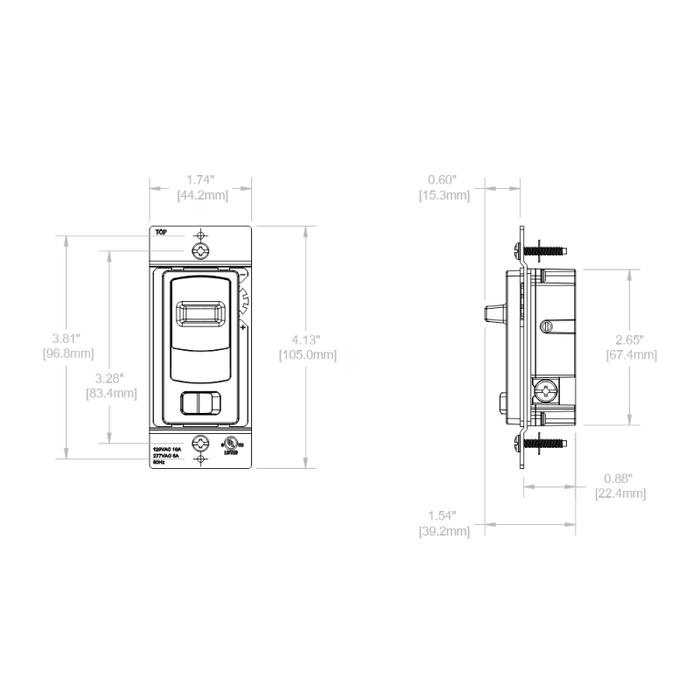

Dimensions
- Width: 1.74"
- Height: 4.13"
- Depth: 1.54"
Warranty
- 1 Year Warranty
Documents
Labels:
