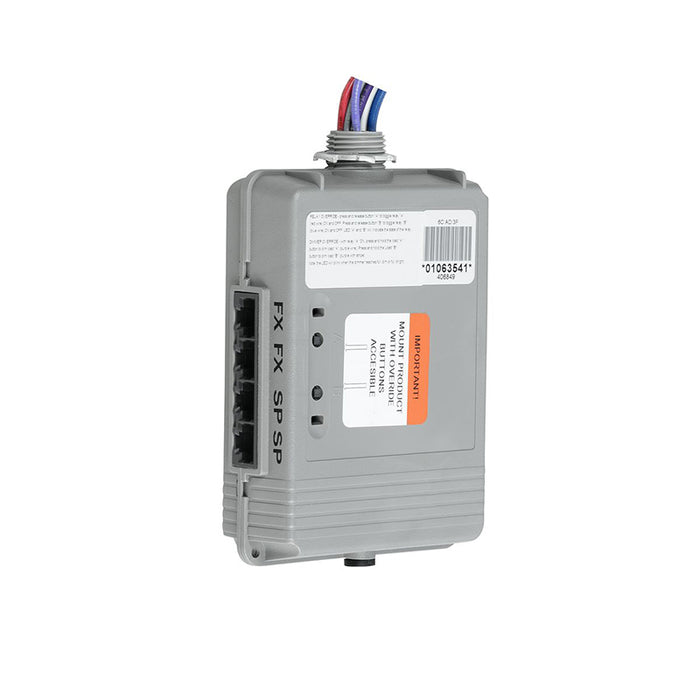

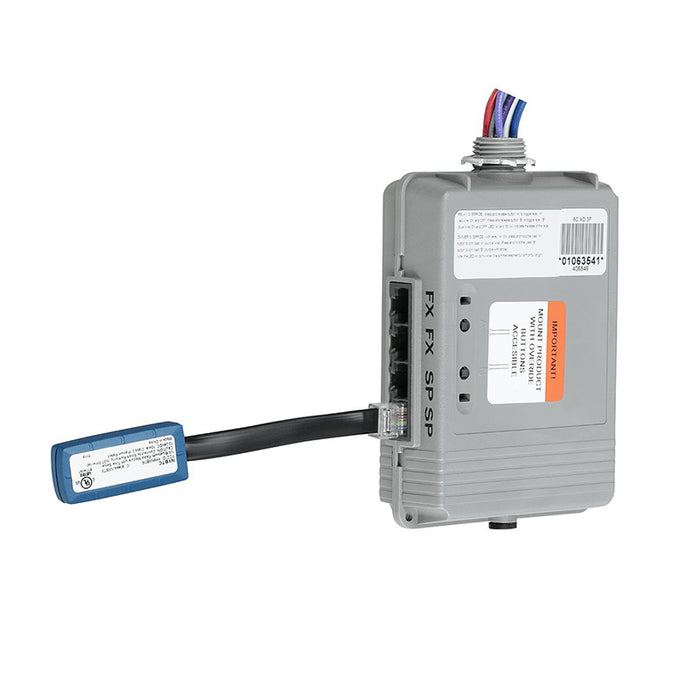

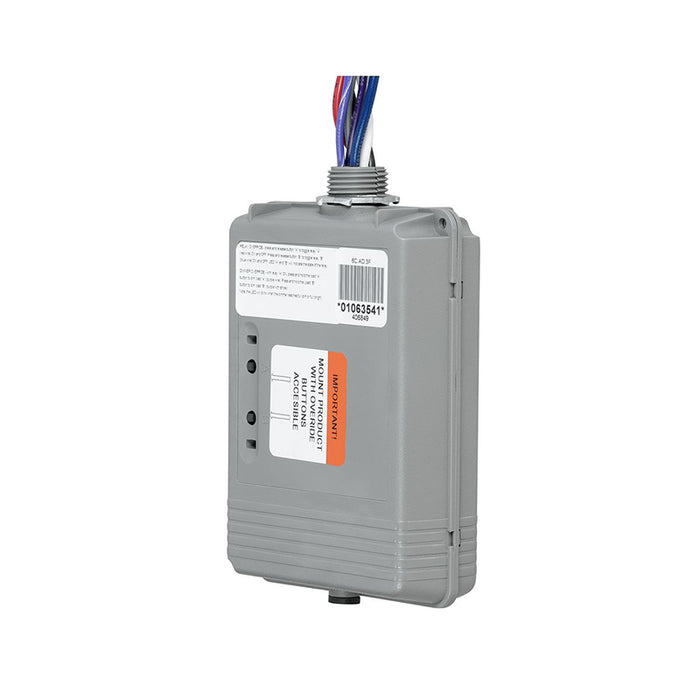

NX Lighting Controls NXRCFX2-1RD-UNV Room Controller, FX Bus Compatible, 1 SPST Switched, One 0-10VDC Dimming Output
SKU NXRCFX2-1RD-UNV
Original price
$0.00
-
Original price
$0.00
Original price
$332.97
$332.97
-
$332.97
Current price
$332.97
Availability:
in stock, ready to be shipped
Estimated Shipping Widget will be displayed here!
OVERVIEW
The FX enabled NX Room Controller (NXRCFX) provides automatic and manual lighting control with the simplicity of plug-in installation and auto-configuration.
Features
- Color: Gray
- Voltage: 120/277/347/VAC
- Single 0-10V interface for full range dimming control
- FX bus enabled, allows for up to 32 room controllers per NX Zone Segment
- SmartPORT automatic configuration support for NX Occupancy Sensors and Smart Wall Stations or controlled receptacles
- Intelligently and automatically responds to sensors and switches in the most efficient manner
- Schedules are held in the devices themselves with integral Time Clock requiring no additional devices for scheduling
- Advanced configuration, power metering, and control through either NX Area Controller or NX Lighting Controls mobile app
Dimensions
- Width: 3.85"
- Height: 5.25"
- Depth: 1.37"
Warranty
- 5 Years Limited Warranty
