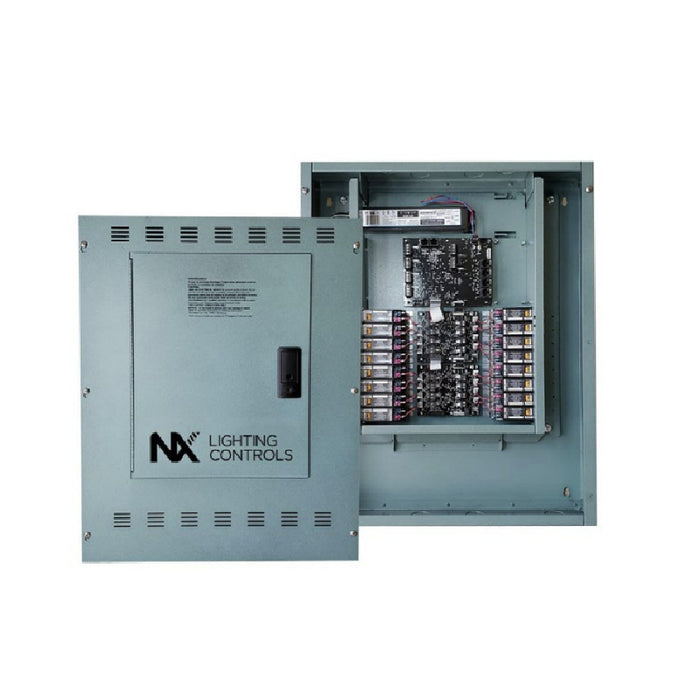

NX Lighting Controls NXP2-PNL Control Panel V2, 24 Relay Capacity, 24 Dimming Channels, 24-30A/Single Pole Latching Relays
SKU NXP2-PNL-24-24-U-S
Original price
$0.00
-
Original price
$0.00
Original price
$6,247.56
$6,247.56
-
$6,247.56
Current price
$6,247.56
Availability:
in stock, ready to be shipped
Estimated Shipping Widget will be displayed here!
OVERVIEW
Features
- Voltage: 120/277V
- Spaces: 24 Relay Spaces
- Enclosure: NEMA 1 Enclosure
- 24 Dimming Channels
- 24-30A/Single Pole Latching Relays
- Bluetooth Radio Bridge With Real Time Clock Included
- Surface Mount
- Operates as standalone panel or NX network device
- Integrated NX SmartPORTs for connection of NX switches, sensors and accessories
- Contractor friendly mounting/installation

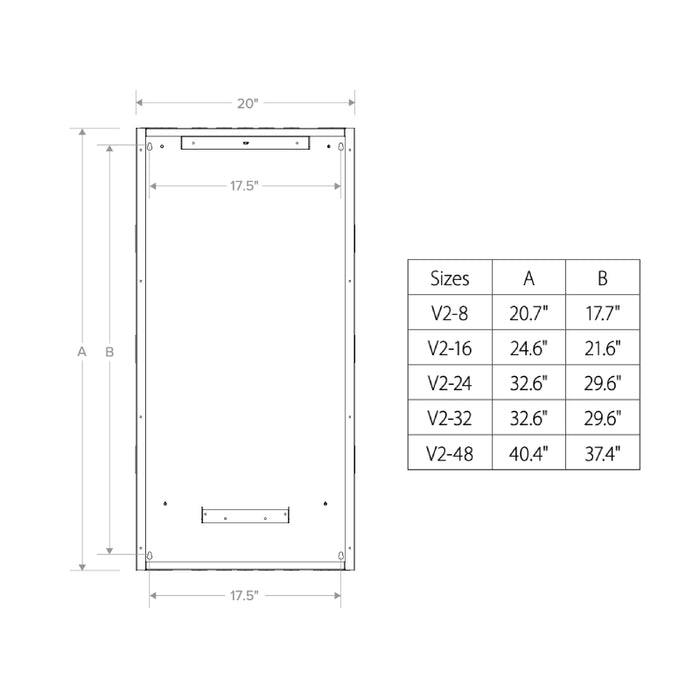

Dimensions
- Length: 32.6"
- Width: 20"
- Depth: 4"
Warranty
- 5 Years Limited Warranty
Documents
Labels:
