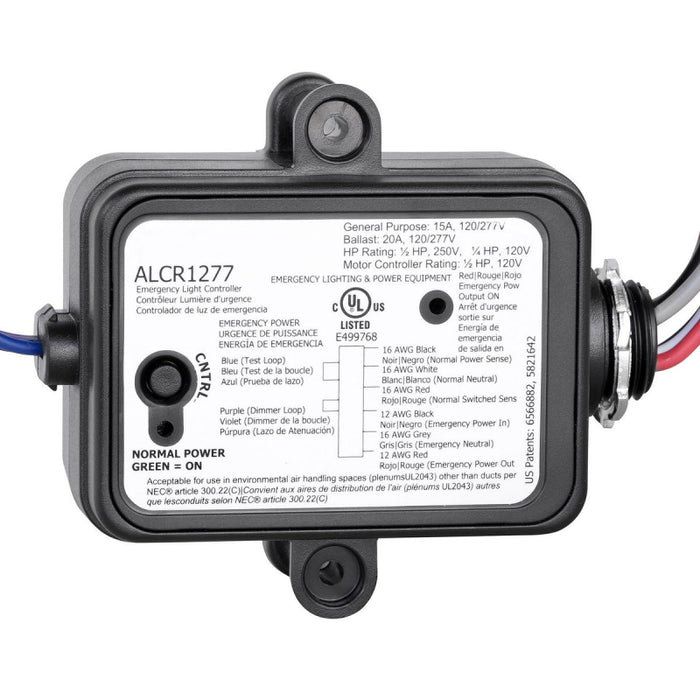

NX Lighting Controls ALCR1277 UL924 Automatic Load Control Relay
SKU ALCR1277
Original price
$0.00
-
Original price
$0.00
Original price
$232.07
$232.07
-
$232.07
Current price
$232.07
Availability:
in stock, ready to be shipped
Estimated Shipping Widget will be displayed here!
OVERVIEW
UL924 Automatic Load Relay allows emergency lighting to be controlled with normal lighting. Ensuring that the emergency lighting will be forced to full bright upon loss of normal power.
Features
- Color: Black
- Voltage: 120/277V
- Meets NEC Article 700 requirements for emergency lighting
- Normally closed contacts for emergency lighting
- Normally open contacts for 0–10V dimming override
- Provision for remote test button or fire alarm interface
- Multi-color function LED
- Suitable for use in return air plenums

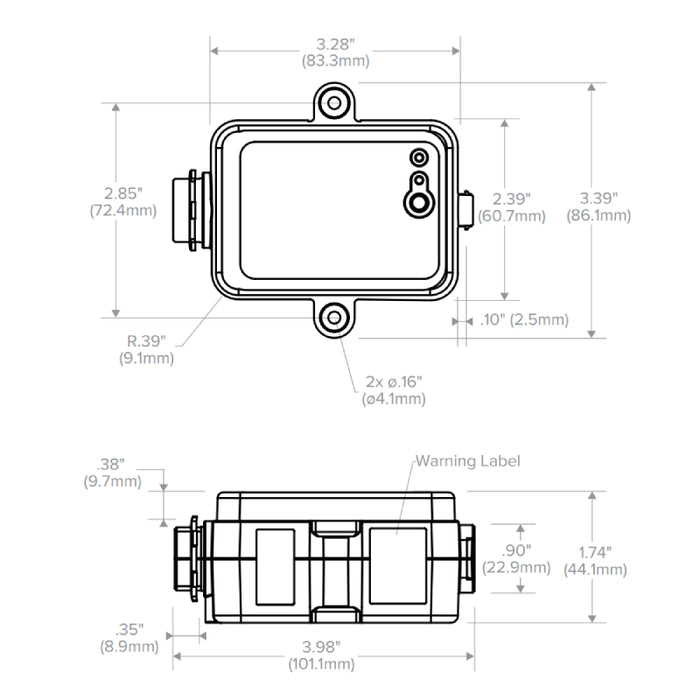

Dimensions
- Width: 3.28"
- Height: 1.74"
- Depth: 3.39"
Warranty
- 5 Years Limited Warranty
Documents
Labels:
