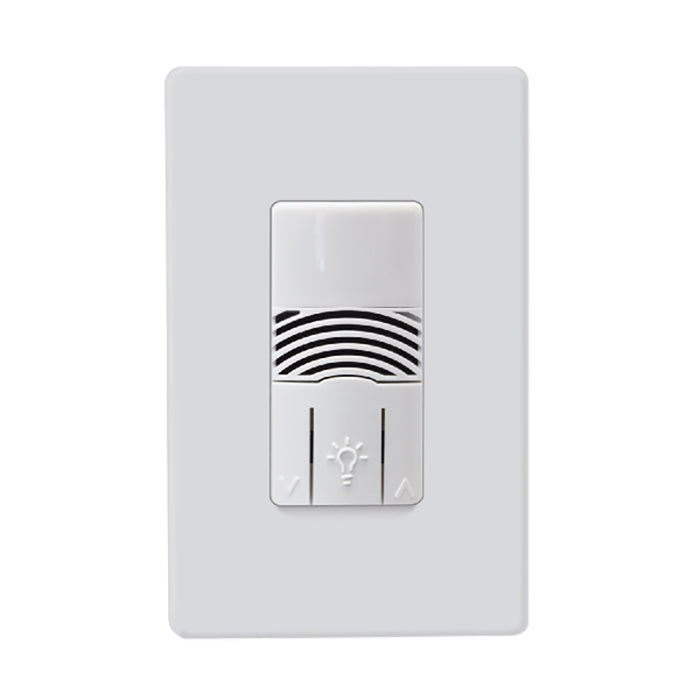

Greengate VSW-D-010 Dual Tech Vacancy Sensor Dimmer

Eaton’s 0-10V Dual Tech Sensor Dimmer is a 3 in 1 solution that combines functionality of a switchpack, a sensor and a 0-10V dimmer into one wallbox device to help customers save labor costs as well as meet the latest energy codes and standards.

Features

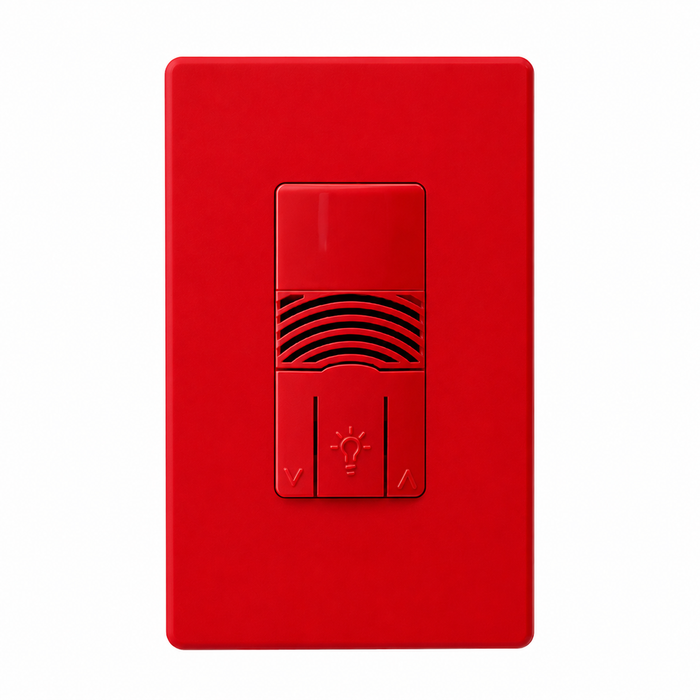

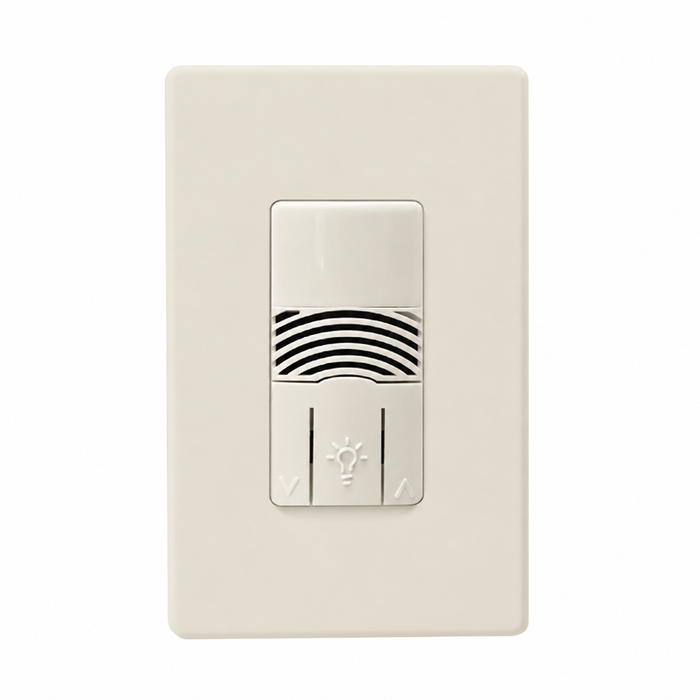

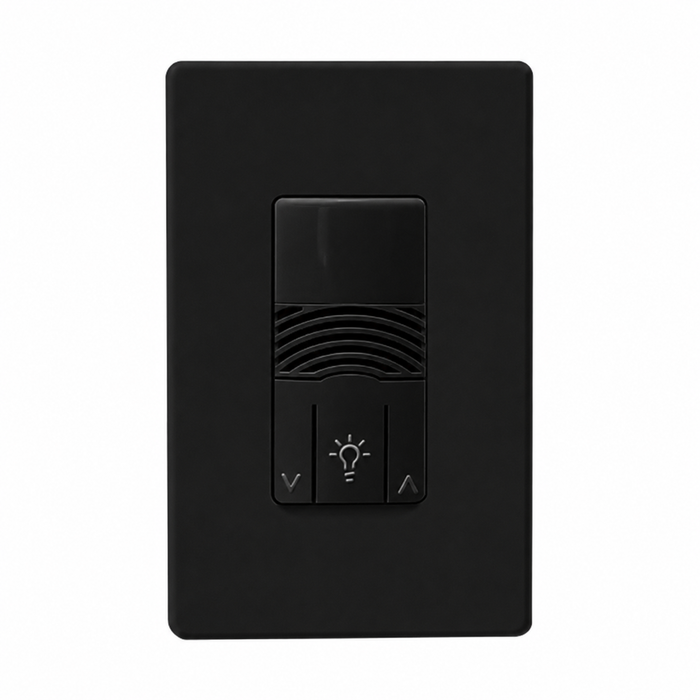

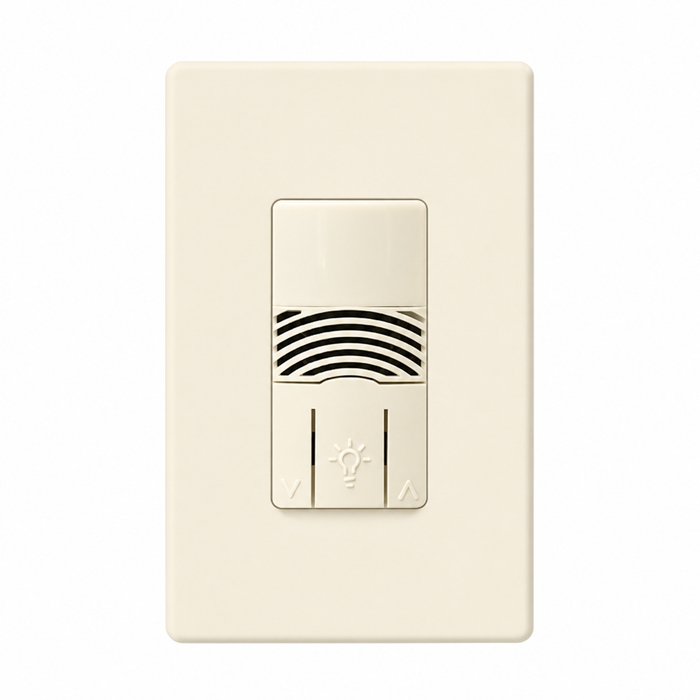

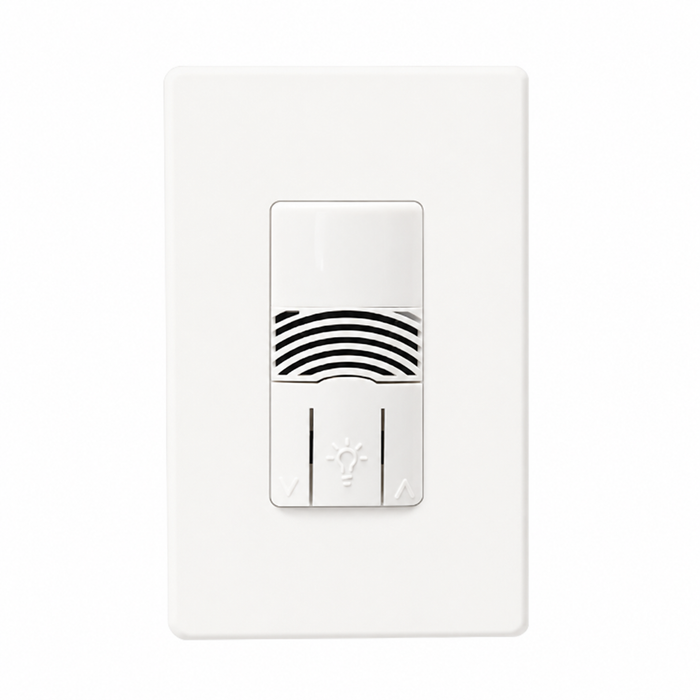

• Finish: White, Black, Gray, Light Almond, Red, Ivory
• Technology: Passive Infrared (PIR) and Ultrasonic (US)
• Voltage: 120/277V
• Wattage: 960W/2200W
• Single pole and 3-way preset
• Compatible with dimmable 0-10V LED and FLR ballasts
• Provides 180 degree field of view with 900 sq. ft. of major and 324 sq. ft. of minor motion coverage
• Selectable time delay of 15 seconds (Test mode), 5 minutes, 10 minutes, 15 minutes, 20 minutes (factory default), 30 minutes
• Fully adjustable Auto ON/Manual ON light level settings

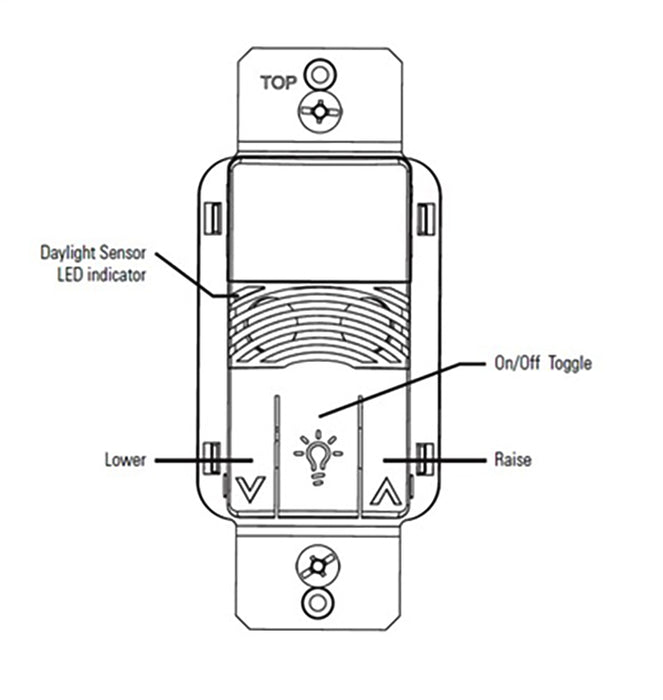

• Full-range preset dimming control provided with horizontal dim/bright bar
• Adjustable high-end and low-end trim setting
• Neutral is required for installation of device
• Integrated photocell for daylighting

Documents

• Spec Sheet
