Elite REL437 4" 11W/13W Economy LED Retrofit Module, 5CCT Selectable, 700/1100 Lumens, 120V/120-277V

The Elite REL437 has been engineered for New Construction, Remodel and Retrofit applications for 4 inch downlights. Dedicated housings install the same way as our standard incandescent downlights.

Features

• Retrofit Module only. Housing sold separately.
• Recessed Size: 4"

• Finish: White/White
• Wattage: 11W/13W
• Voltage: 120V/120-277V
• Color Temperature: 2700K / 3000K / 3500K / 4000K / 5000K Selectable
• Lumens: 700/1100 lm
• CRI: 90+
• Dimming: DIMTR (Triac)+DIM10 ( 0-10V Dimming)
• Ez connector to use with special high efficacy housing or Edison base adapter for retrofitting into existing 4” incandescent housings
• The Elite REL437 lighting system is dimmable down to 10% by using an approved incandescent dimmer or select electronic low voltage dimmers when ordered with DIMTR-120 option. Refer to dimming matrix for more information.

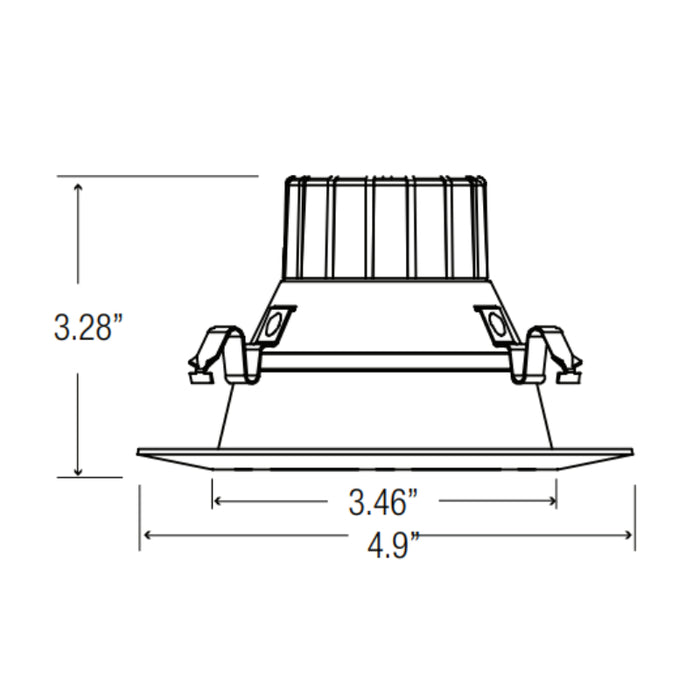

Dimensions

• Width: 4.9"
• Height: 3.28"

Estimated Life

• Lifetime: 50,000 Hours

Documents

• Spec Sheet

Labels and Listings

• c-UL-us Listed
• Energy Star
• Title-24
• JA8
• Suitable for use in closets, compliant when installed to NFPA® 70 NEC®
