by eldoLED
eldoLED FieldSET OTI 30W LED Linear Driver
SKU FIELDSET OTI 30W UNV 1A0 1DIM DIM-1 FS J10
Original price
$0.00
-
Original price
$0.00
Original price
$36.95
$36.95
-
$36.95
Current price
$36.95
Availability:
in stock, ready to be shipped
Estimated Shipping Widget will be displayed here!
OVERVIEW

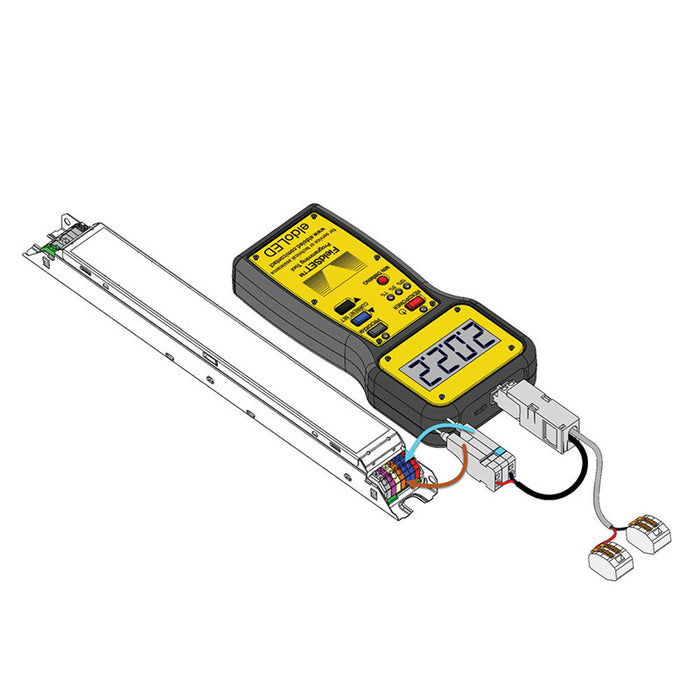

The FieldSET OTi30W is an efficient, dimmable LED driver for indoor applications.This programmable driver is compatible with the FieldSET LED Driver Programming Tool which provides visual and audible feedback programming. The FieldSET OTi30W is designed for in-field programming and replacement.
Features
- Wattage: 30W
- Voltage: 120-277V
- 0-10V Dimming with 1% Minimum Dim Level
- 1050mA Output Max (150-1050mA output range)
- Field Service Solution OTI Intelligent Driver
- Programmed using FieldSET Programmer Tool
- Intended for use in LED fixtures, including 2x2, 2x4 troffers, linear, strip, and architectural fixtures.

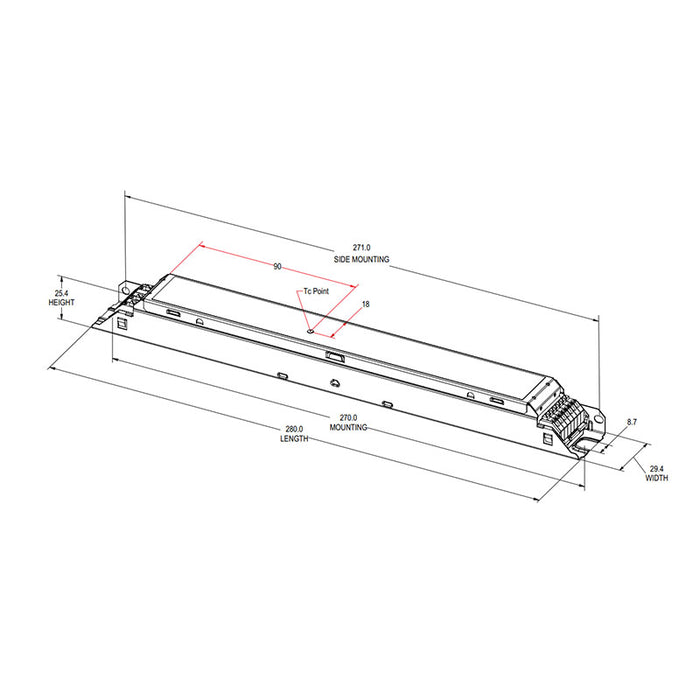

Dimensions
- Length: 11.02"
- Width: 1.15"
- Height: 1"
- Mounting Length: 10.63"
- Mounting Side: 10.67"
Warranty
- 5-year limited warranty
Documents
