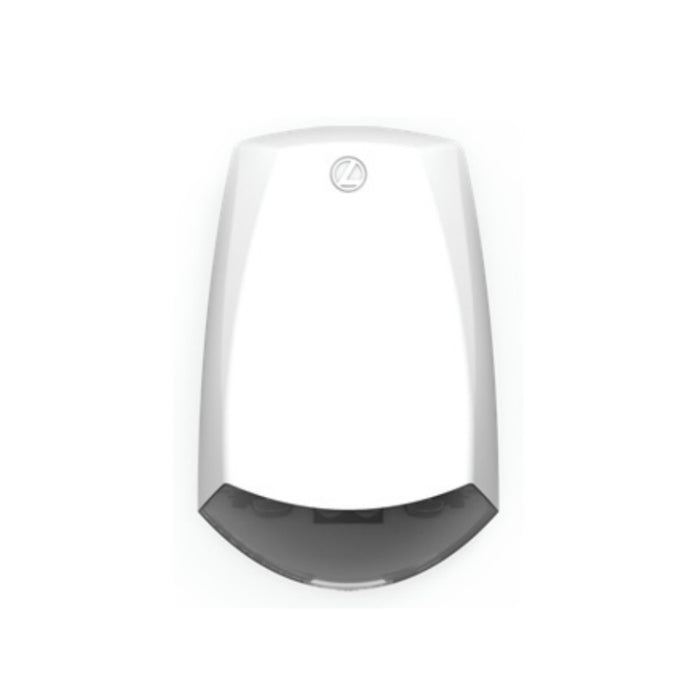

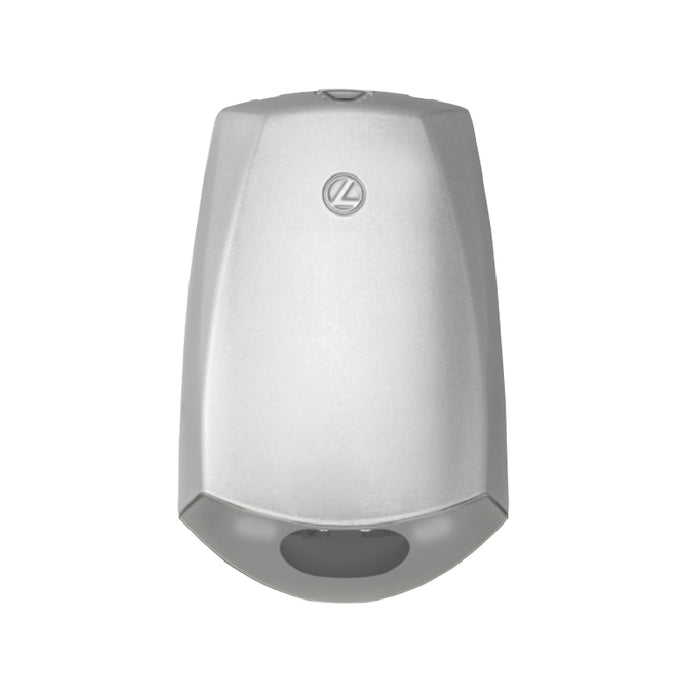

Lithonia AFF OELR Signature LED Remote Head, Universal Voltage

The AFF Series from the Lithonia Lighting Signature Family is a rugged construction emergency light, offering quick installation and premium standard features such as die cast aluminum construction, a scratch resistant polyester powder coat finish and wide-throw light distribution.

Features

• Housing Color: White, Black, Natural Aluminum, Dark Bronze
• Wattage: 8.57W
• Voltage: Universal DC voltage (8-30VDC)
• Color Temperature: 4000K

• CRI: 70
• Unit Type: Remote fixture, Normally OFF (requires external battery source)

• Optics: Wide Throw
• Wall mount: typically meets 7.5' to 14' mounting height from ground or floor. Power supplied by either mounting directly to a 4" square or 4" octagon j-box (wall mount) and accepts rigid or flex conduit.
• Remote units (OELR) are normally off. Emergency only functionality with DC power from an external battery.

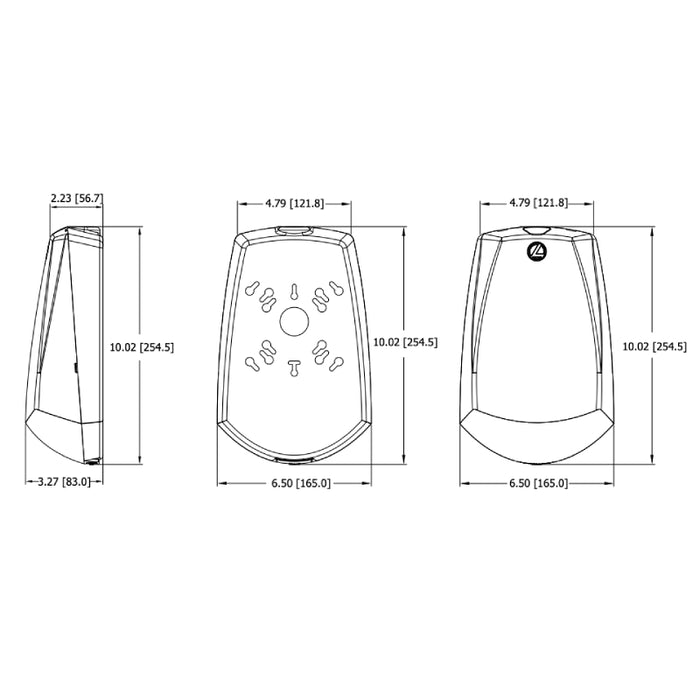

Dimensions

• Length: 6.5"
• Height: 10.02"
• Depth: 3.27"
• Weight: 3.5 lbs


Warranty

• 5-year limited warranty

Document

• Spec Sheet
• Instruction Sheet
