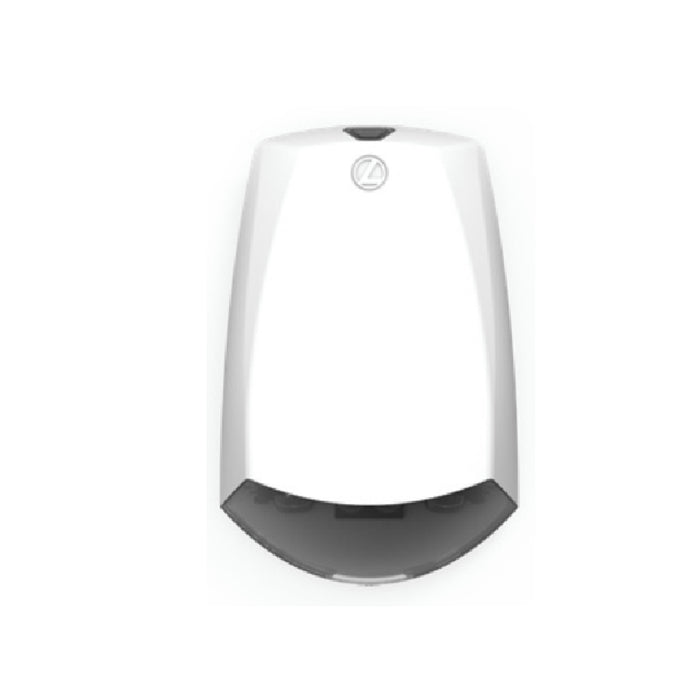

Lithonia AFF OEL Signature LED Emergency Unit with Photocell, 120-347V

The AFF Series from the Lithonia Lighting Signature Family is a rugged construction emergency light, offering quick installation and premium standard features such as die cast aluminum construction, a scratch resistant polyester powder coat finish and wide-throw light distribution.

Features

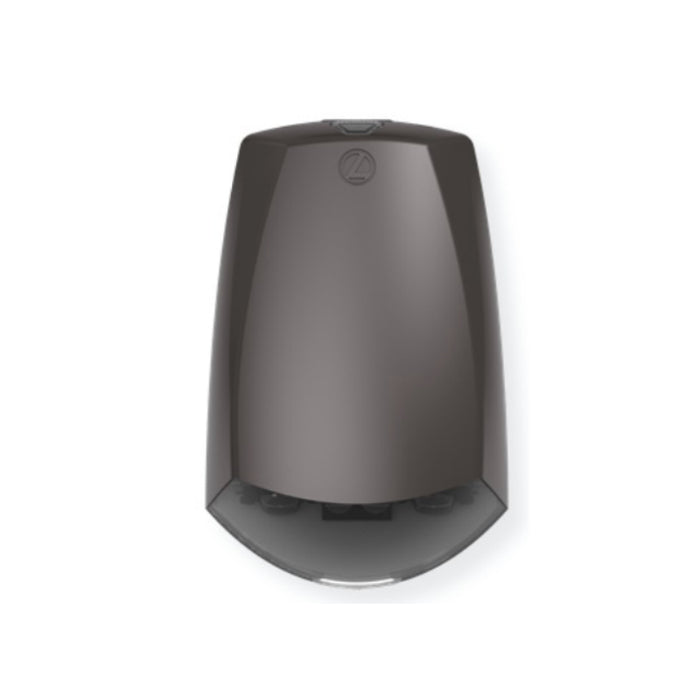

• Housing Color: White, Black, Natural Aluminum, Dark Bronze
• Wattage: 11.28W
• Voltage: 120-347V
• Color Temperature: 4000K
• Lumens: 635
• CRI: 70
• Unit Type: Photocell: Normally-ON with internal battery

• Battery Type: Lithium Iron Phosphate

• Optics: Wide Throw
• Wall mount: typically meets 7.5' to 14' mounting height from ground or floor. Power supplied by either mounting directly to a 4" square or 4" octagon j-box (wall mount) and accepts rigid or flex conduit.
• Photocell option (PEL) for normally on product in order to discontinue illumination during periods when ambient light is present. Photocell option (PEL) for normally on products allow the user to force lamp illumination by user control (external switch). When power is not connected to switched line, illumination will respond to internal daylight sensor. For switched line applications, no other types of products shall be connected on the switched leg.
• Self-Diagnostics: Continuously monitors AC functionality. Standard derangement monitoring will indicate disconnected battery, charger failure and displays green flashing indicator light while in emergency mode. Single multi-chromatic LED indicator to display two-state charging, test activation and three-state self-diagnostics.
• Self-diagnostic testing: Five minutes every 30 days and 90 minutes annually. Diagnostic evaluation of lamps, AC to DC transfer, battery charging and condition of microprocessor.

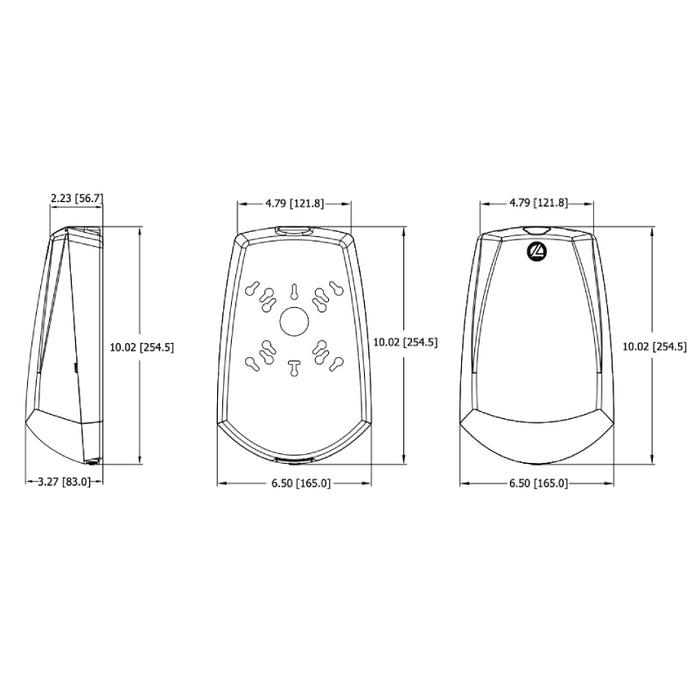

Dimensions

• Length: 6.5"
• Height: 10.02"
• Depth: 3.27"
• Weight: 3.5 lbs


Warranty

• 5-year limited warranty

Document

• Spec Sheet
• Instruction Sheet
