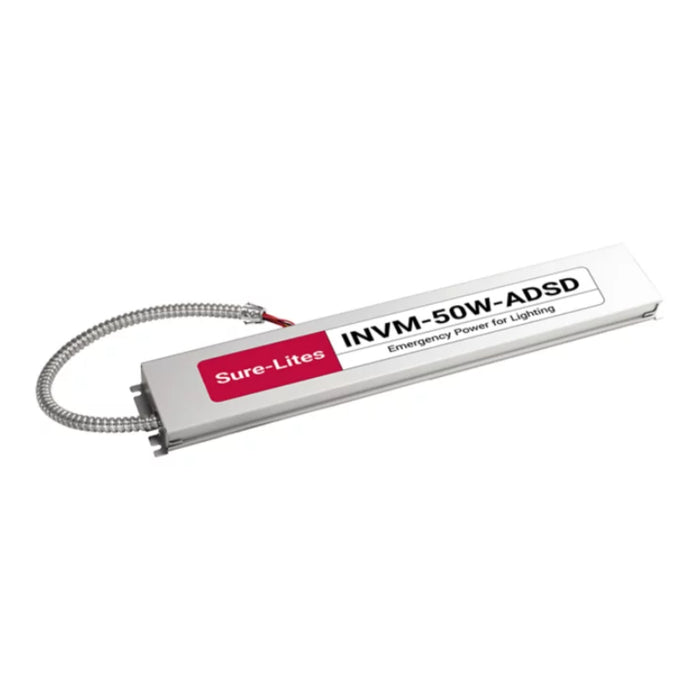

Sure-Lites INVM-50W-ADSD 50W Emergency Power for Lighting, 50VA Output Micro Inverter, 0-10V Auto-Dimming

The Emergency Lighting Micro/Mini Inverters are a perfect fit in a distributed emergency lighting systems where emergency LED drivers cannot be used, such as with Type B TLEDs, integral-base lamps, or luminaires with drivers integral to the LED array (e.g. flat panels or UFO high-bays). Remote mounting up to 250 feet.

Features

• Wattage: 50W
• Voltage: 120-277V
• Provides 90 minutes of 50VA emergency power to lighting fixtures

• 0-10V Auto dimming allows up to 320W* max dimmable load

• 50 VA max non-dimmable load

• Automatic code-compliant testing (self-testing)

• Automatic load monitoring after commissioning (new UL 924 requirement)
• Works with LED and fluorescent fixtures

• Ideal for (but not limited to) screw-base LED lamps

• Compatible with AC (line voltage) driven TLED lamps (Type B)
• Remote-mounting up to 250 feet maximum

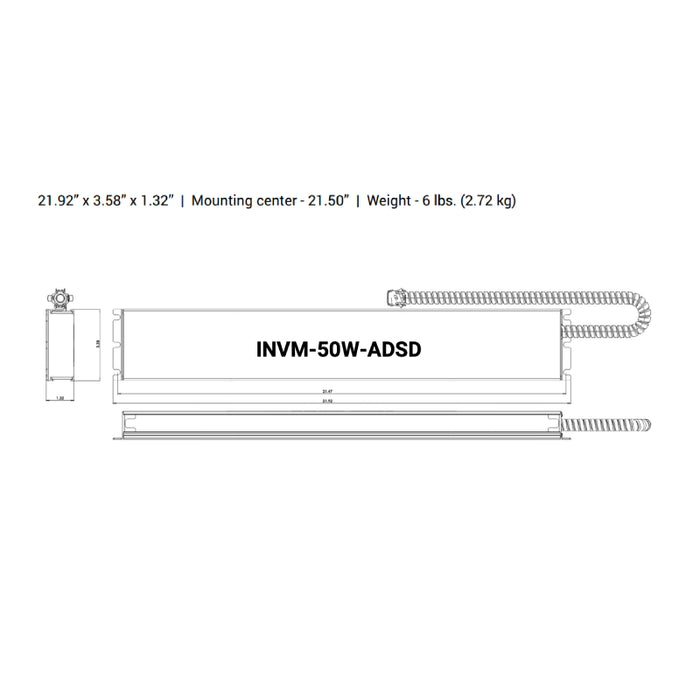

Dimensions

• Width: 21.92"
• Height: 3.58"
• Depth: 1.32"
• Mounting center: 21.5"
• Weight: 6 lbs

Warranty

• 5-year limited warranty

Documents

• Spec Sheet
• Instruction Sheet

Labels and Listings

• UL 924 damp location for factory or field installation
• CSA 22.2, No.141 compliant
• NEC, NFPA, OSHA compliant
• CEC Title 20 compliant
• National Building Code of Canada (NBC), National Fire Code of Canada (NFPC)
