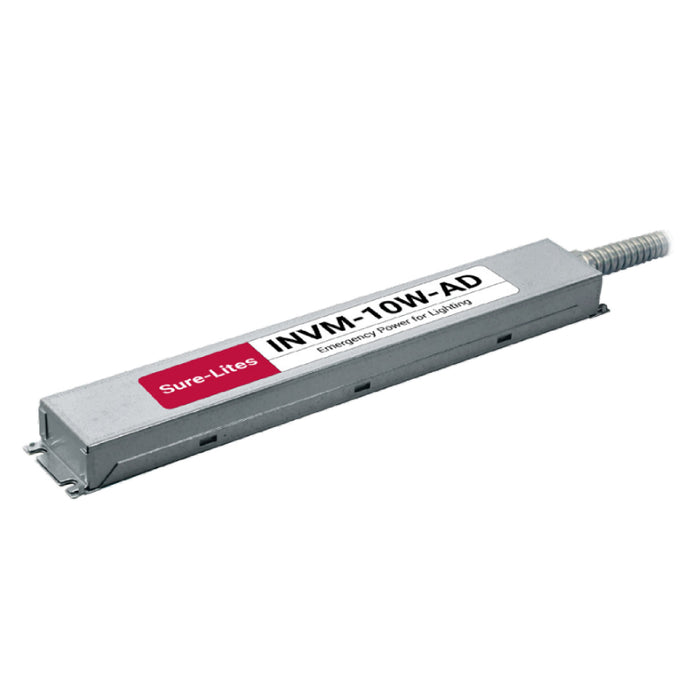

Sure-Lites INVM-10W-AD 10W Emergency Power for Lighting, 10VA Output Micro Inverter, 0-10V Auto-Dimming

The Emergency Lighting Micro/Mini Inverters are a perfect fit in a distributed emergency lighting systems where emergency LED drivers cannot be used, such as with Type B TLEDs, integral-base lamps, or luminaires with drivers integral to the LED array (e.g. flat panels or UFO high-bays). Remote mounting up to 250 feet.

Features

• Wattage: 10W
• Voltage: 120-277V
• Provides 90 minutes of 10VA emergency power to lighting fixtures
• 0-10V Auto dimming allows up to 50VA max dimmable load
• 10 VA max non-dimmable load
• Automatic 120VAC or 277VAC output power to driver or ballast means easy field install
• Compatible with LED, fluorescent luminaries, Type B TLED and screw based lamps
• Remote mounting up to 250 feet
• Maintenance free lithium-ion battery
• Steel housing with conduit
• Integrated LED Test Switch

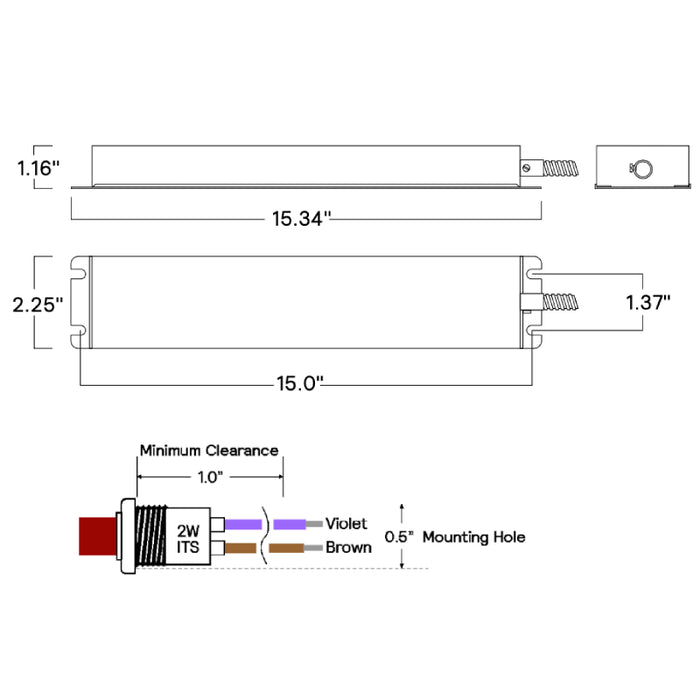

Dimensions

• Width: 15.34"
• Height: 2.25"
• Depth: 1.16"
• Weight: 3.45 lbs

Warranty

• 5-year limited warranty

Documents

• Spec Sheet
• Instruction Sheet

Labels and Listings

• UL 924 damp location for factory or field installation
• CSA 22.2, No.141 compliant
• NEC, NFPA, OSHA compliant
• CEC Title 20 compliant
• National Building Code of Canada (NBC), National Fire Code of Canada (NFPC)
